Transmission Position Sensor/Switch: Testing and Inspection

"4" Position Switch Inspection
1) Disconnect negative cable at battery.
2) Remove front console box.
3) Disconnect manual selector connector (1).

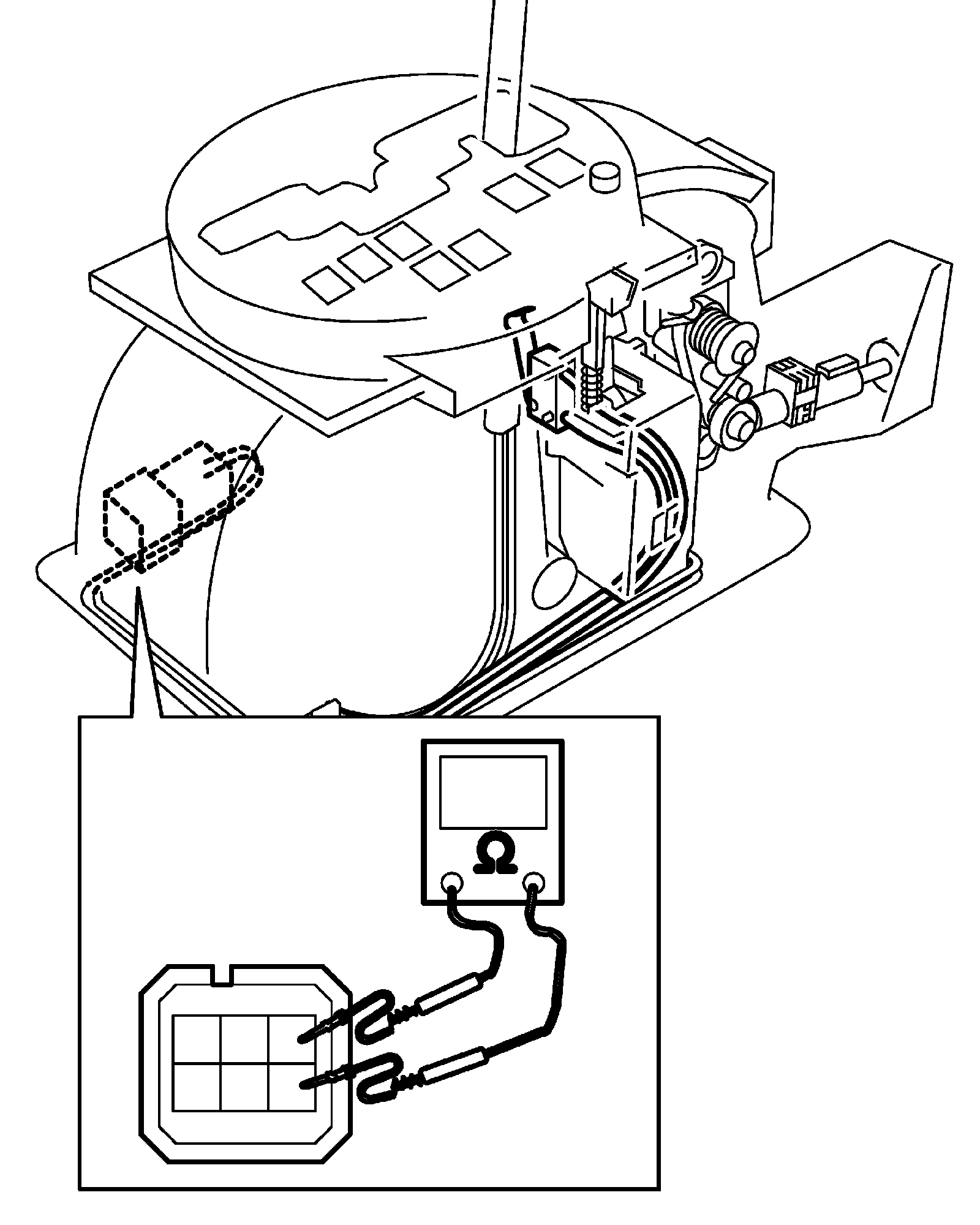

4) Measure resistance between "4" position switch terminals.
"4" position switch specification
Shift selector lever to "P", "N" or "D" range: 3.96 - 4.04 k ohms
Shift selector lever to "R" "4", "3" or "L" range: 0.99 - 1.01 k ohms
