Lighting System Components Location

WARNING: This page is about a different car, the 2006 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

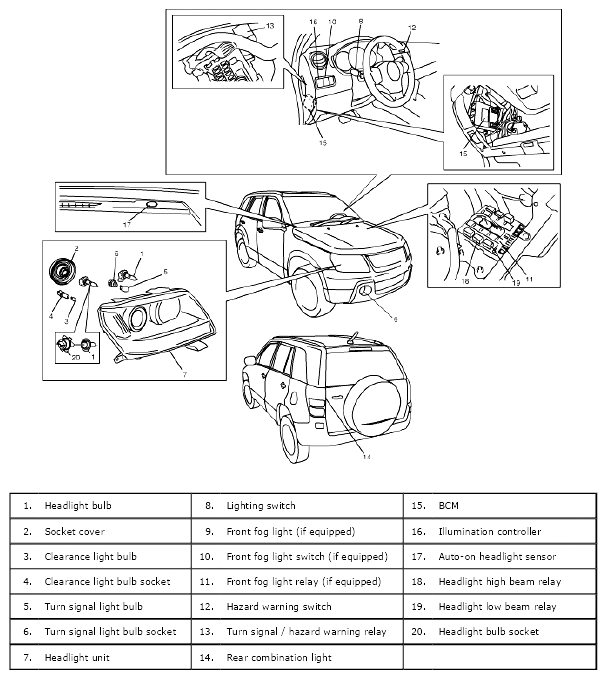

Fig 1: Lighting System Component Location
G04809735Courtesy of SUZUKI OF AMERICA CORP.
