ECM Input / Output Circuit Diagram: Notes

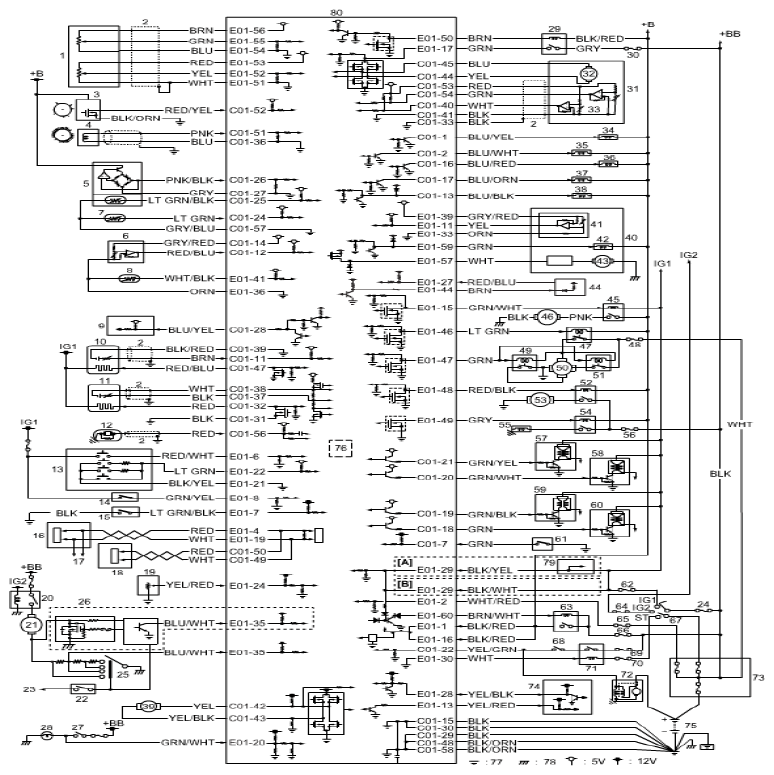

Fig 1: ECM Input / Output Circuit Diagram
G05471864Courtesy of SUZUKI OF AMERICA CORP.

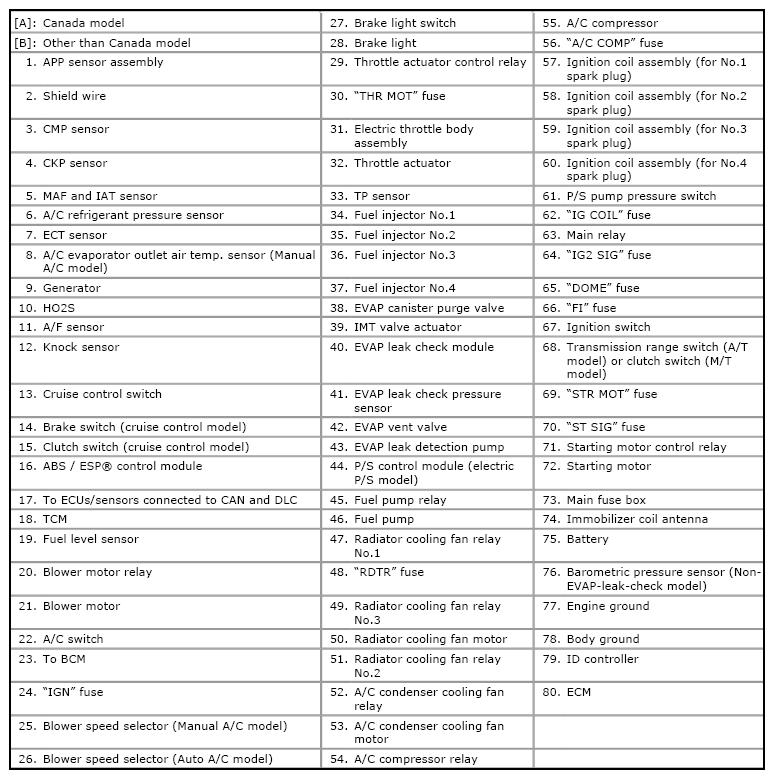

Fig 2: ECM Input / Output Circuit Legend
G05471865Courtesy of SUZUKI OF AMERICA CORP.
