Window Systems Connector End Views (Notchback)

Master Window Switch (A32)

GM1902505Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • MG 612231
  • 8-Way F ASC Series (NA)
Pin Wire Color Circuit No. Function
1 D-BU 164 Power Window Motor Left Front Down Control (LHD)
L-BU 166 Power Window Motor Right Front Down Control (RHD)
2 - - Not Used
3 BN 167 Power Window Master Switch Right Front Down Signal (LHD)
BN 165 Power Window Motor Left Front Up Control (RHD)
4 - - Not Used
5 L-GN/BK 580 Battery Positive Voltage
6 BN 165 Power Window Motor Left Front Up Control (LHD)
BN 167 Power Window Master Switch Right Front Up Signal (RHD)
7 D-GN 166 Power Window Motor Right Front Up Control (LHD)
D-BU 164 Power Window Motor Left Front Down Control (RHD)
8 BK 650 Ground

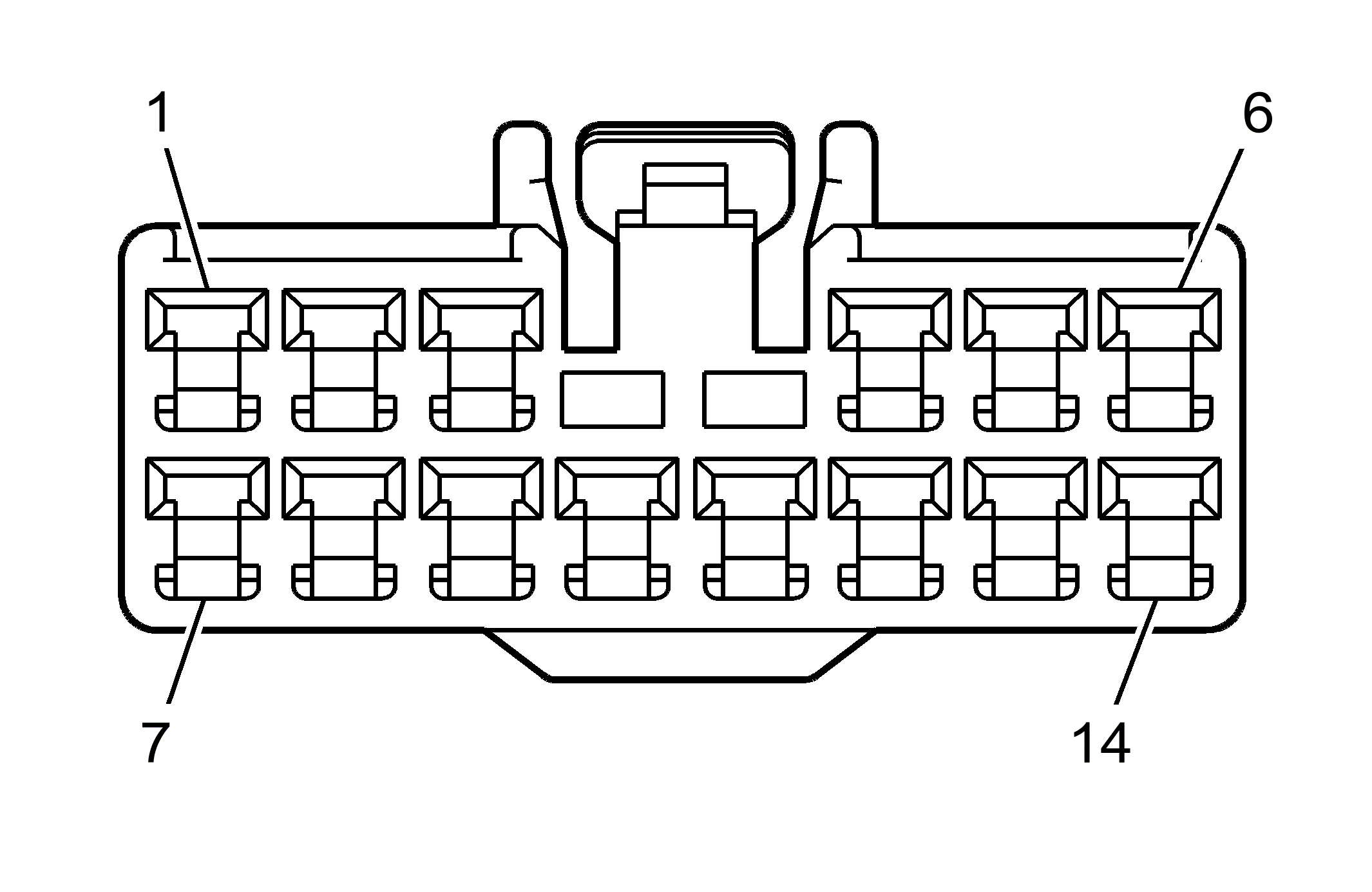

Master Window Switch (A31/RHD w/ABZ)

GM1902504Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • MG 612240
  • 14-Way F ASC Series (NA)
Pin Wire Color Circuit No. Function
1 PU 171 Power Window Master Switch Right Rear Up Signal (A31)
D-BU 164 Power Window Motor Left Front Down Control (RHD w/ABZ))
2 BN 165 Power Window Motor Left Front Up Control (RHD w/ABZ)
3 L-GN 170 Power Window Master Switch Right Rear Up Signal (A31)
L-GN/BK 580 Battery Positive Voltage (RHD w/ABZ)
4 PU 169 Power Window Master Switch Left Rear Up Signal (A31)
BN 167 Power Window Master Switch Right Front Up Signal (RHD w/ABZ)
5 BN/WH 6166 Front Door Window Short Time Down Control (RHD w/ABZ)
BN/WH 6166 Front Door Window Short Time Down Control (RHD w/ABZ)
6 D-GN 168 Power Window Master Switch Left Rear Down Signal (A31)
D-BU 1307 Power Window Master Switch Lockout Signal (RHD w/ABZ)
7 BN 167 Power Window Master Switch Passenger Up Signal (LHD w/A31)
BN 165 Power Window Motor Left Front Up Control (RHD w/A31))
L-BU 166 Power Window Motor Right Front Down Control (RHD w/ABZ)
8 BK 650 Ground (A31)
D-GN 168 Power Window Master Switch Left Rear Down Signal (RHD w/ABZ)
9 L-BU 166 Power Window Master Switch Passenger Down Signal (LHD w/A31)
D-BU 164 Power Window Motor Left Front Down Control (RHD w/A31)
BN/WH 6166 Front Door Window Short Time Down Control (RHD w/ABZ)
10 D-BU 1307 Power Window Master Switch Lockout Control (A31)
L-GN/BK 580 Battery Positive Voltage (RHD w/ABZ)
11 BK 650 Ground (RHD w/ABZ)
12 BN 165 Power Window Master Switch Driver Up Signal (LHD w/A31)
BN 167 Power Window Master Switch Right Front Up Signal (RHD w/A31))
PU 169 Power Window Master Switch Left Rear Up Signal (RHD w/ABZ)
13 L-GN/D-BU 580 Battery Positive Voltage (A31)
L-GN 170 Power Window Master Switch Right Rear Up Signal (RHD w/ABZ)
14 D-BU 164 Power Window Master Switch Driver Down Signal (LHD w/A31)
L-BU 166 Power Window Master Switch Passenger Down Signal (RHD w/A31)
PU 171 Power Window Master Switch Right Rear Up Signal (RHD w/ABZ)

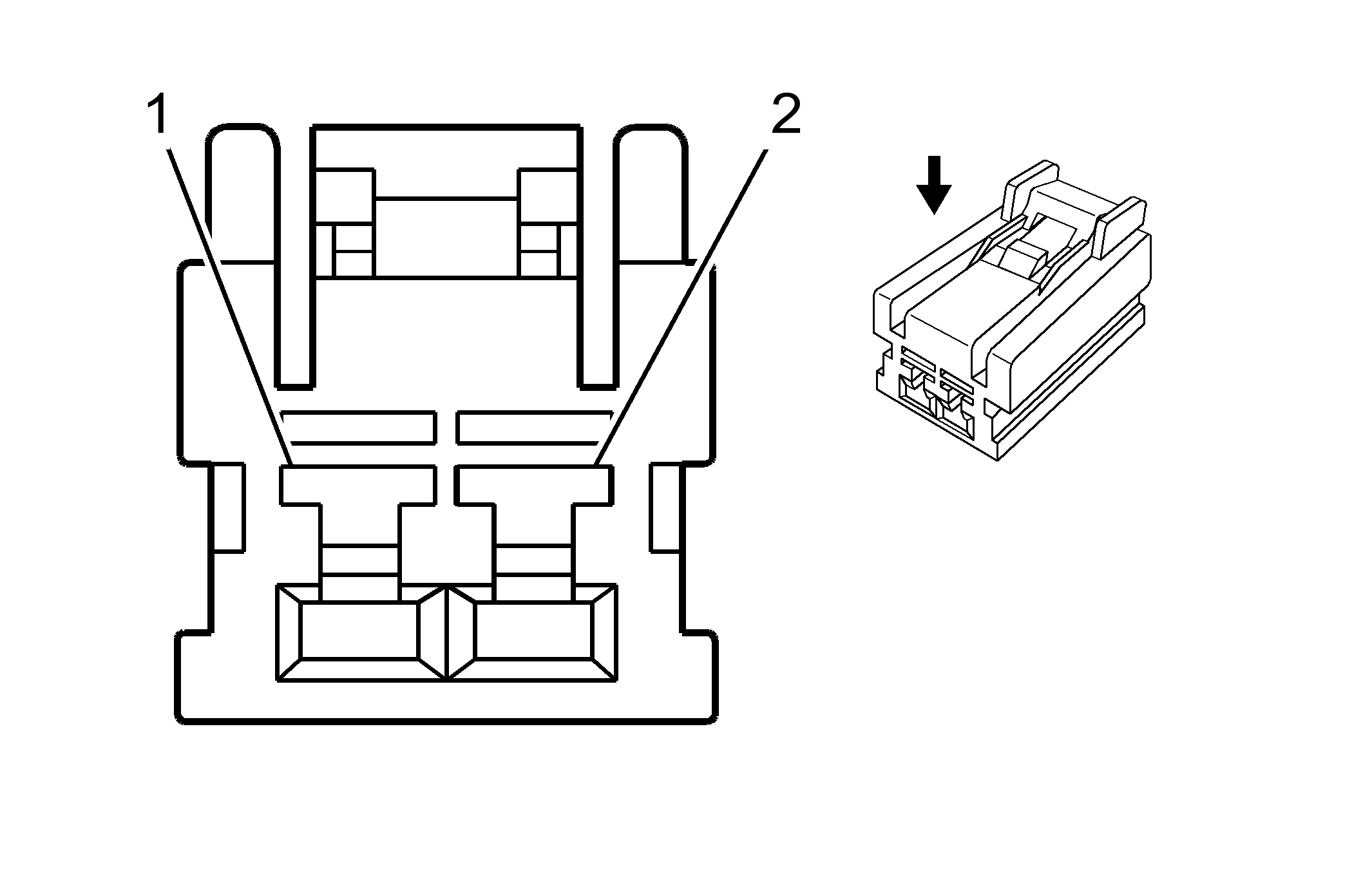

Window Motor - Driver (A31/A32)

GM1413001Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 936224-1
  • 2-Way F 090 Series (NA)
Pin Wire Color Circuit No. Function
1 BN - Power Window Motor Driver Up Control
2 D-BU - Power Window Motor Driver Down Control

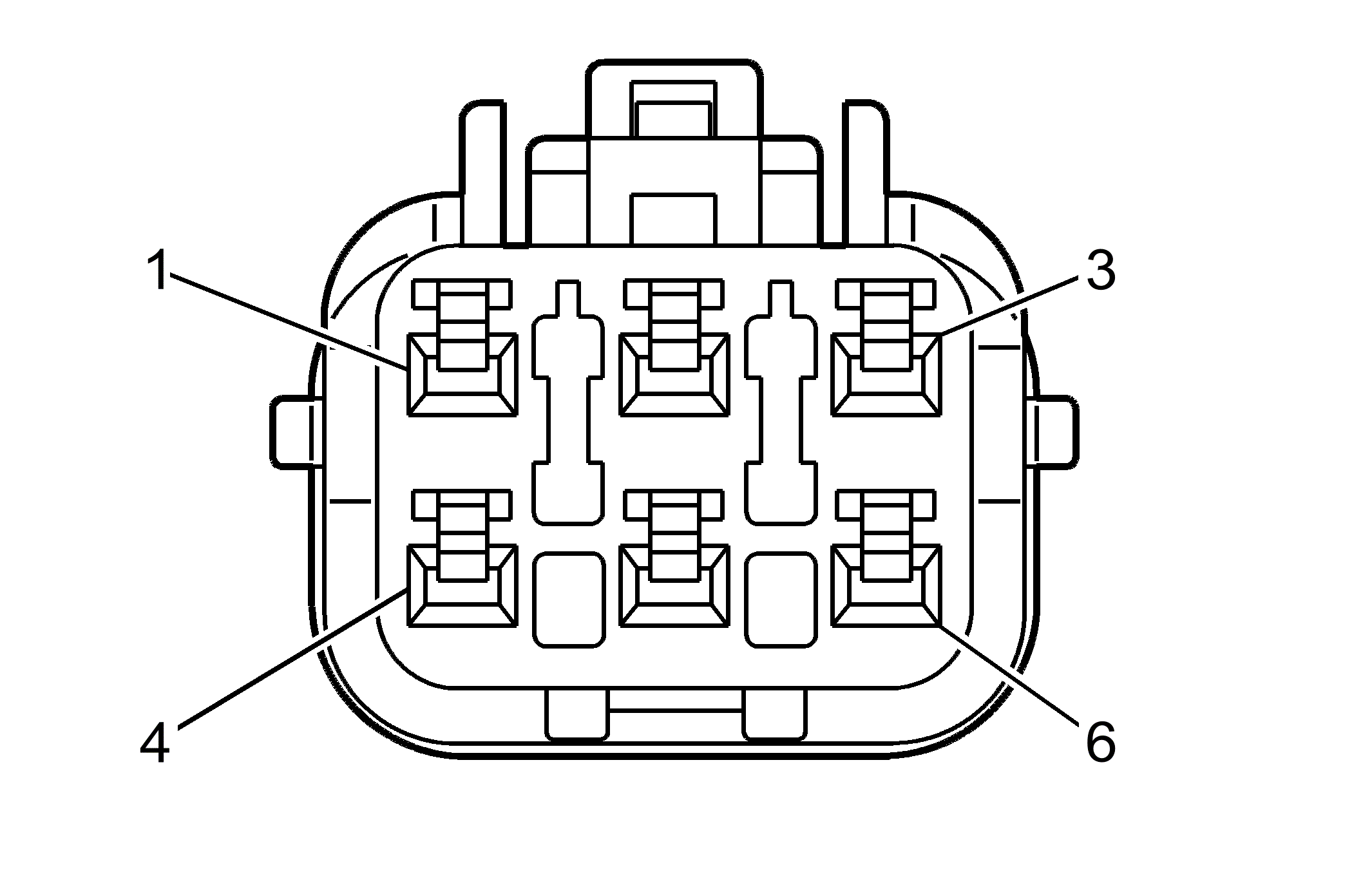

Window Motor - Driver (ABZ)

GM1902503Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • MG 610335-0
  • 6-Way F SWP Series
Pin Wire Color Circuit No. Function
1 L-GN/BK - Power Window Master Switch Driver Auto Up Signal (LHD)
2 BN - Power Window Master Switch Driver Auto Down Signal (RHD)
3 BK - Ground (LHD)
L-GN/BK - Battery Positive Voltage (RHD)
4 L-GN/D-BU - Battery Positive Voltage (LHD)
L-GN/BK - Power Window Master Switch Driver Auto Up Signal (RHD)
5 D-BU - Power Window Master Switch Driver Down Signal
6 BK - Ground (RHD)
Window Motor - Left Rear

GM1891421Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • MG 610320-0
  • 2-Way F SWP Series (NA)
Pin Wire Color Circuit No. Function
1 L-GN/RD - Power Window Motor Left Rear Down Control
2 GY/D-GN - Power Window Motor Left Rear Up Control
Window Motor - Passenger

GM1413001Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 936224-1
  • 2-Way F 090 Series (NA)
Pin Wire Color Circuit No. Function
1 BN - Power Window Motor Passenger Down Control
2 D-BU - Power Window Motor Passenger Up Control
Window Motor - Right Rear

GM1891421Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • MG 610320-0
  • 2-Way F SWP Series (NA)
Pin Wire Color Circuit No. Function
1 BN - Power Window Motor Right Rear Down Control
2 D-BU - Power Window Motor Right Rear Up Control

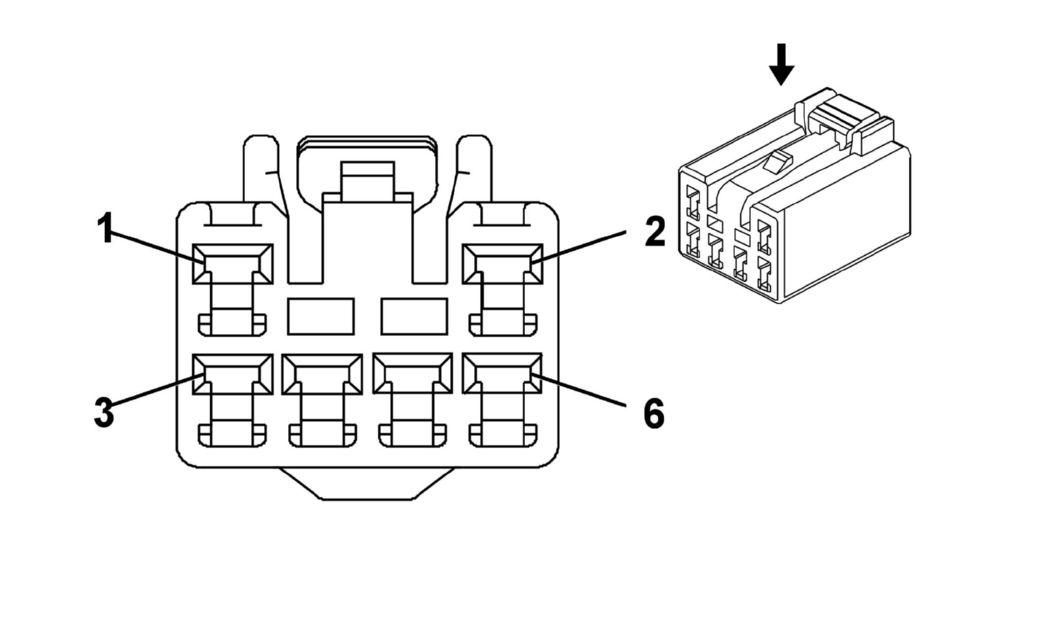

Window Switch - Left Rear

GM1908545Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • MG612228
  • 6-Way F ASC Series (WH)
Pin Wire Color Circuit No. Function
1 D-GN - Power Window Master Switch Left Rear Down Signal
2 PU - Power Window Master Switch Left Rear Up Signal
3 D-BU - Power Window Switch Left Rear Down Control
4 D-BU - Power Window Master Switch Lockout Control
5 - - Not Used
6 BN - Power Window Switch Left Rear Up Control
Window Switch - Passenger

GM1908545Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • MG612228
  • 6-Way F ASC Series (WH)
Pin Wire Color Circuit No. Function
1 L-BU - Power Window Switch Passenger Down Signal
2 PU - Power Window Switch Passenger Up Signal
3 D-BU - Power Window Motor Passenger Down Control
4 D-BU - Power Window Master Switch Lockout Control
5 - - Not Used
6 BN - Power Window Motor Passenger Up Control
Window Switch - Right Rear

GM1908545Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • MG612228
  • 6-Way F ASC Series (WH)
Pin Wire Color Circuit No. Function
1 D-GN - Power Window Master Switch Right Rear Down Signal
2 PU - Power Window Master Switch Right Rear Up Signal
3 D-BU - Power Window Switch Right Rear Down Control
4 D-BU - Power Window Master Switch Lockout Control
5 - - Not Used
6 BN - Power Window Switch Right Rear Up Control
