Removal Procedure

  1. Remove the battery. Refer to BATTERY NEGATIVE CABLE DISCONNECTION AND CONNECTION .
    Fig 1: Identifying Battery Vent Tube
    G05465815Courtesy of SUZUKI OF AMERICA CORP.
  2. Remove the battery vent tube from the battery box.

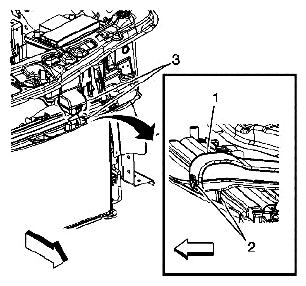

    Fig 2: Removing Battery Vent Tube From Upper Radiator Air Deflector
    G05465816Courtesy of SUZUKI OF AMERICA CORP.
  3. Release the locking clips (2) from the battery vent tube (1).
  4. Remove the battery vent tube (1) from the upper radiator air deflector (3).
    Fig 3: Identifying Battery Box Mounting Bolts
    G05465817Courtesy of SUZUKI OF AMERICA CORP.
  5. Remove the battery box mounting bolts.
  6. Remove the battery box.
