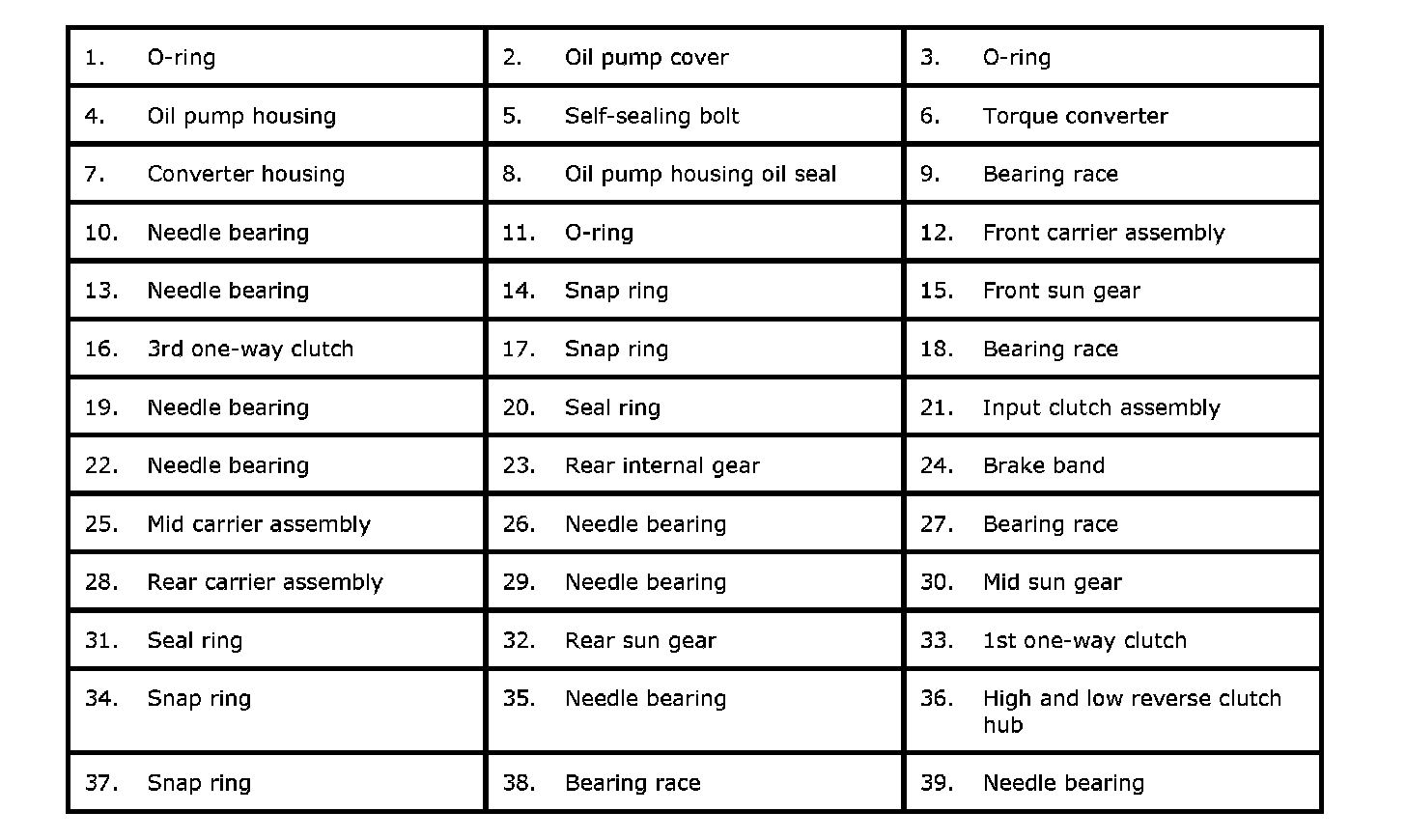

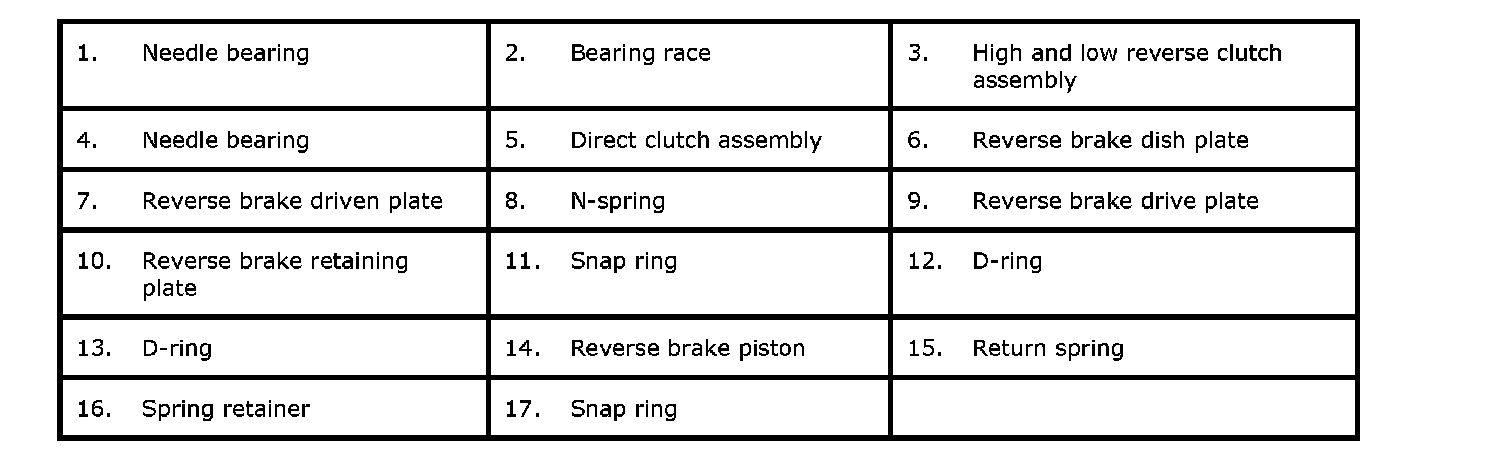

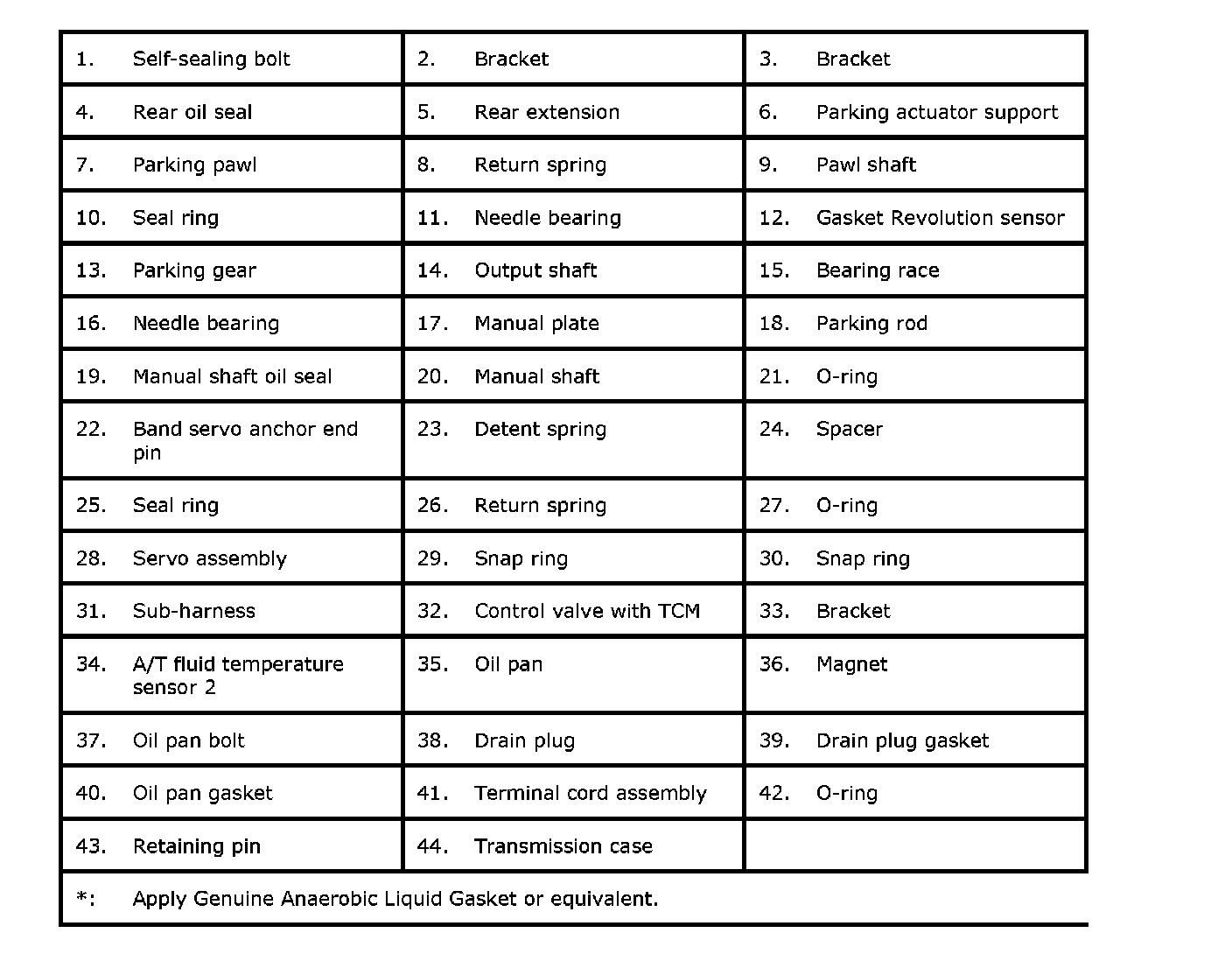

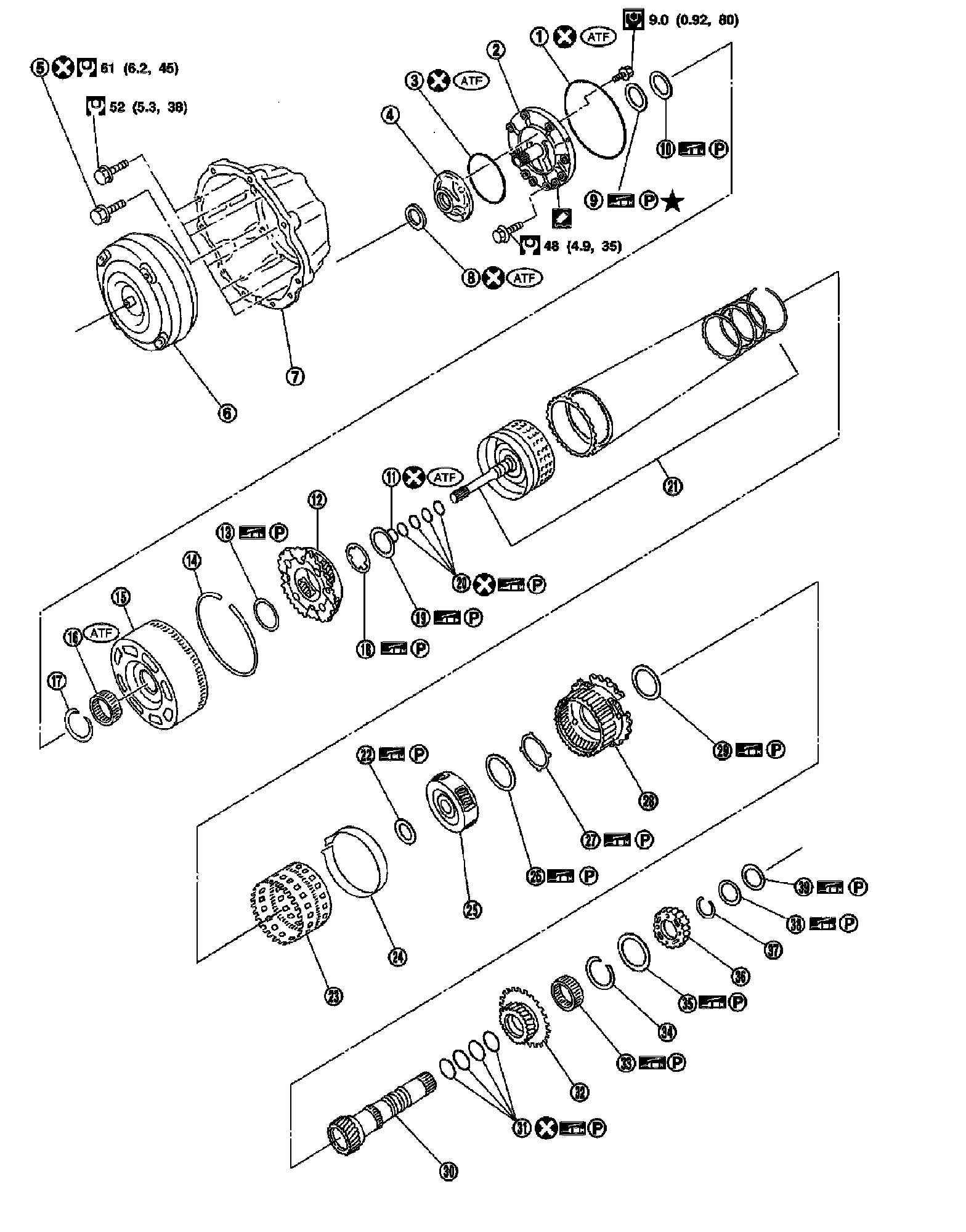

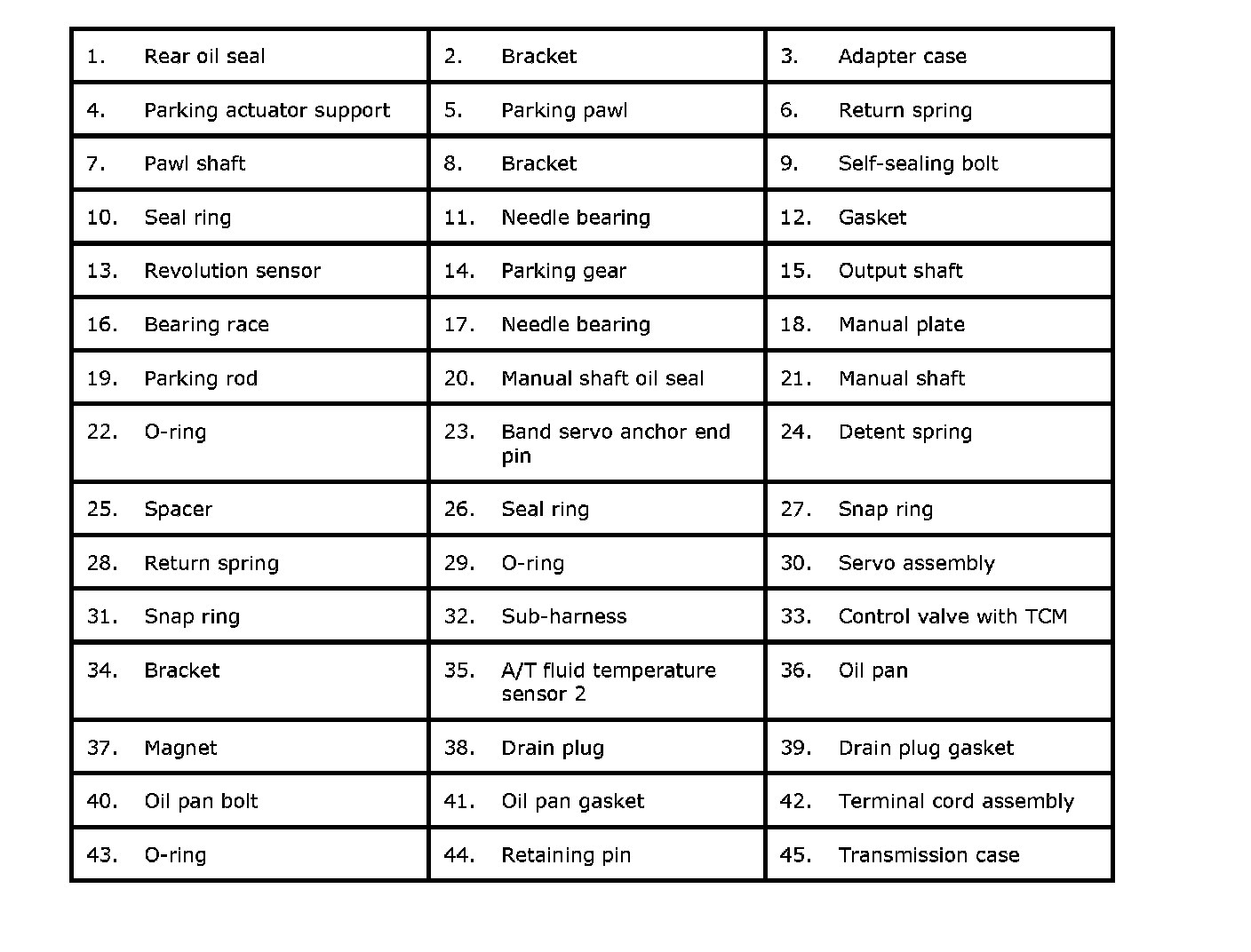

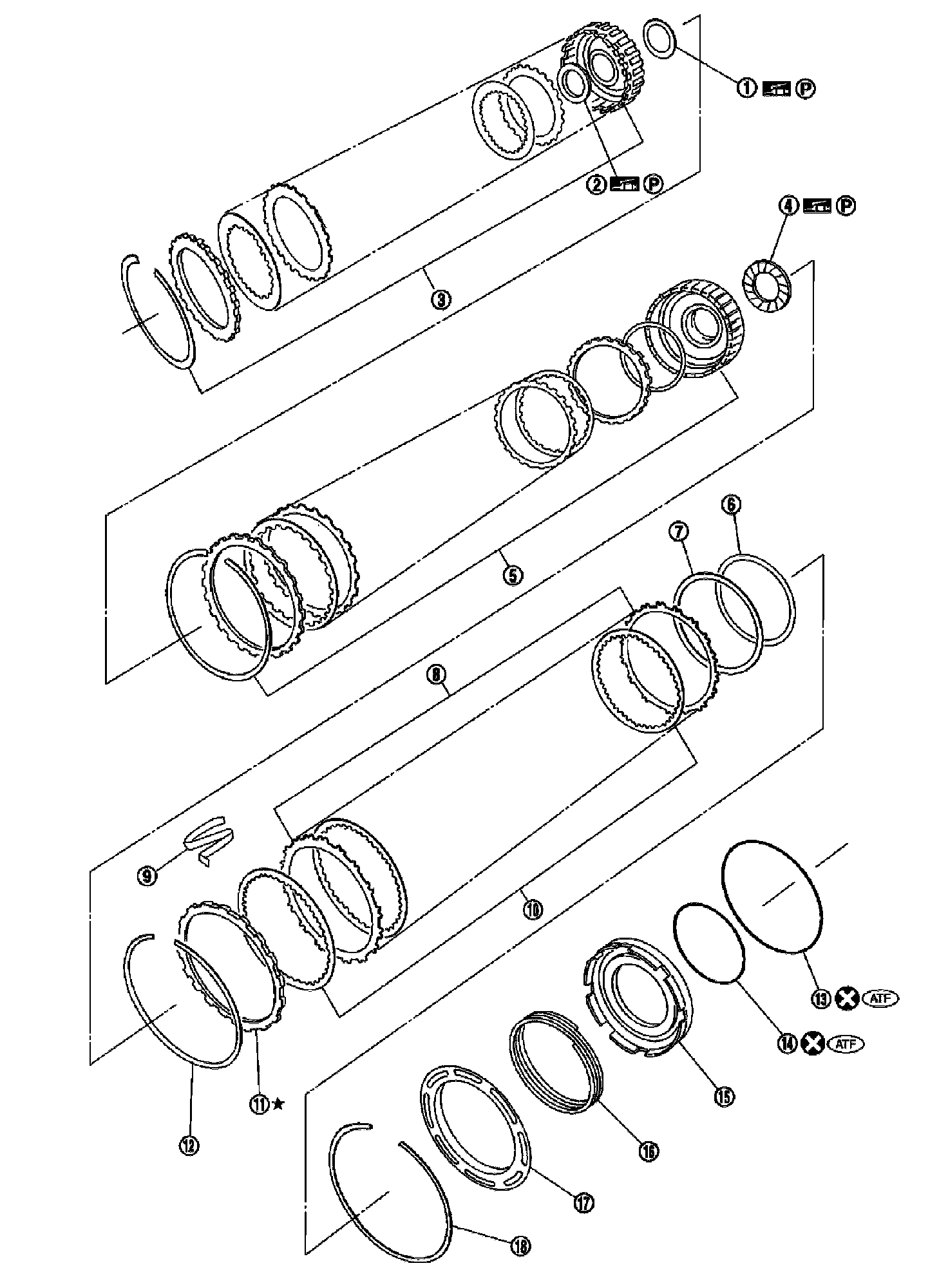

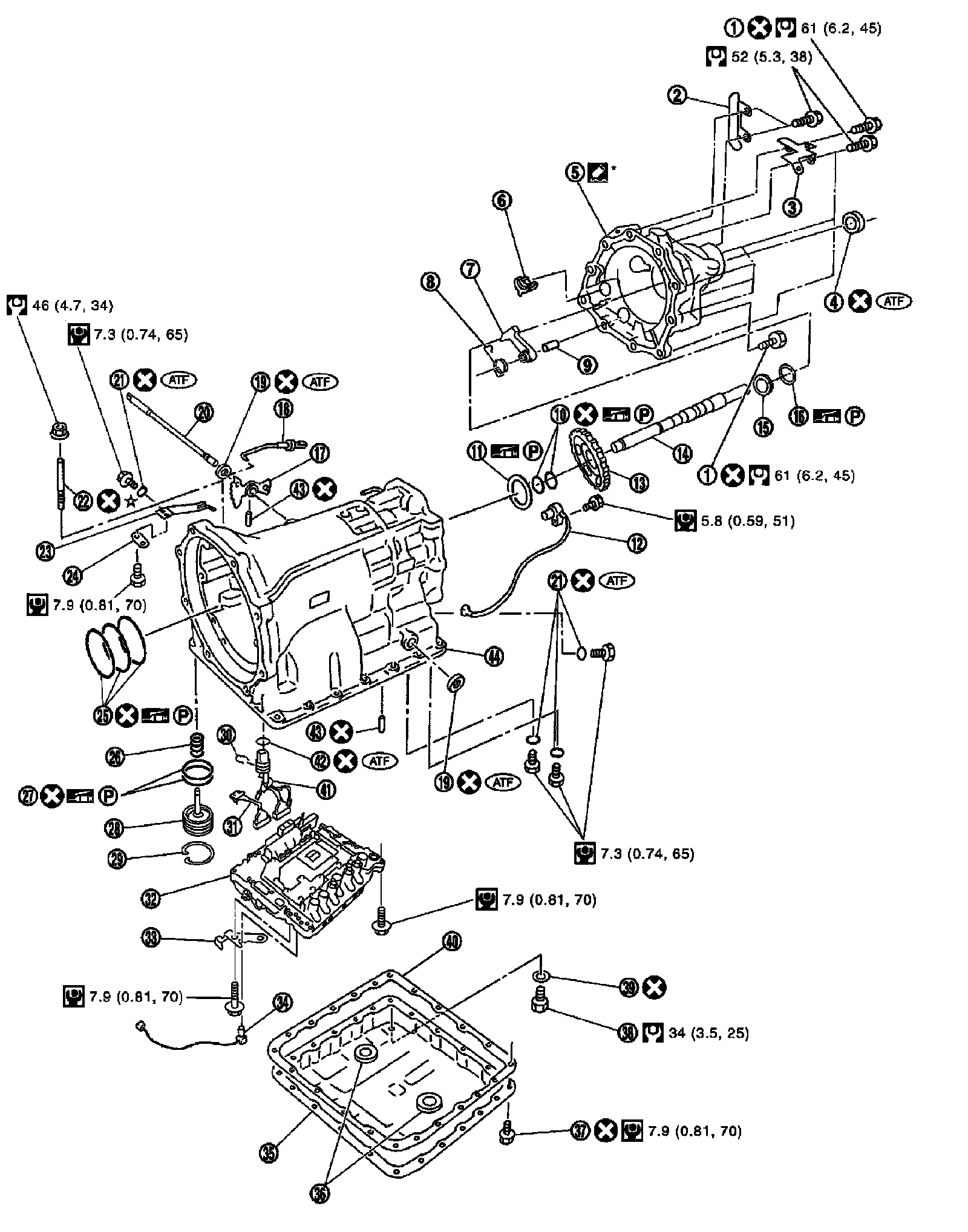

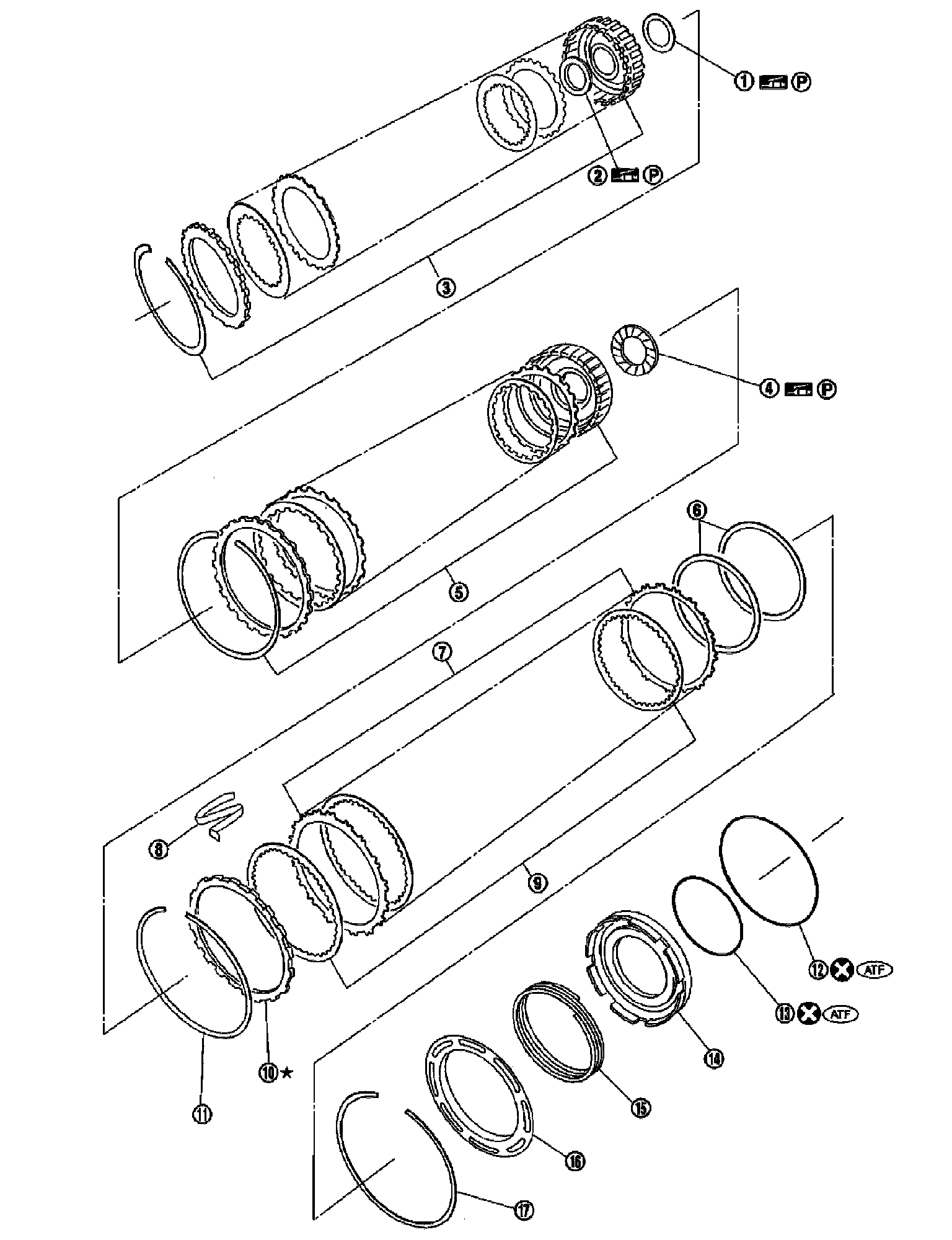

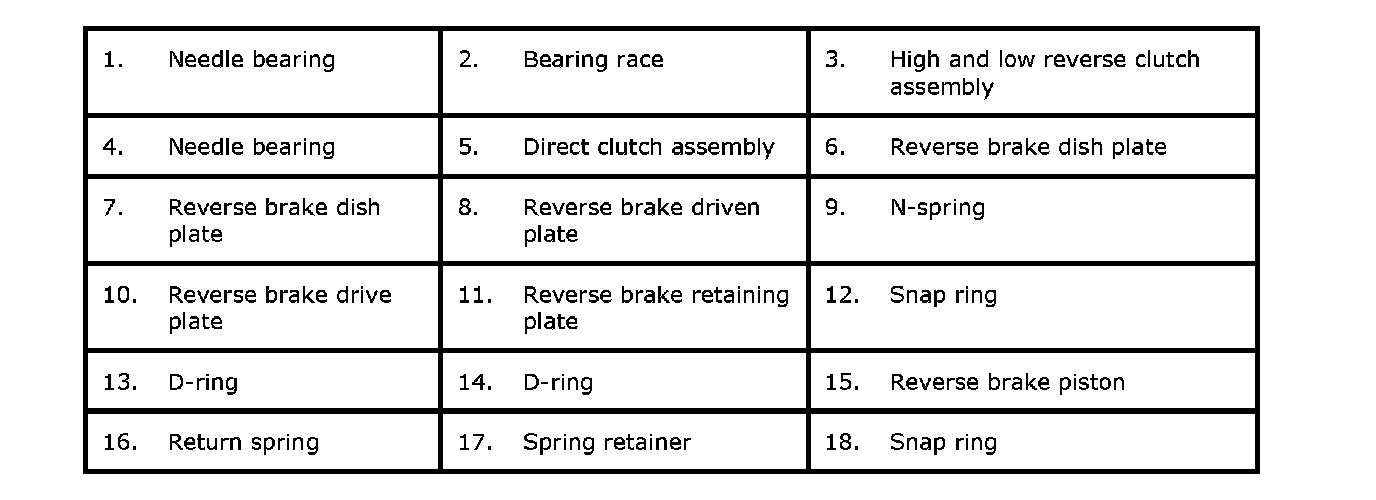

Transmission Assembly Exploded View
Transmission Assembly Exploded View
QR25DE models
VQ40DE models
2WD Models
4WD Models
