Seats

Front Seat: Component

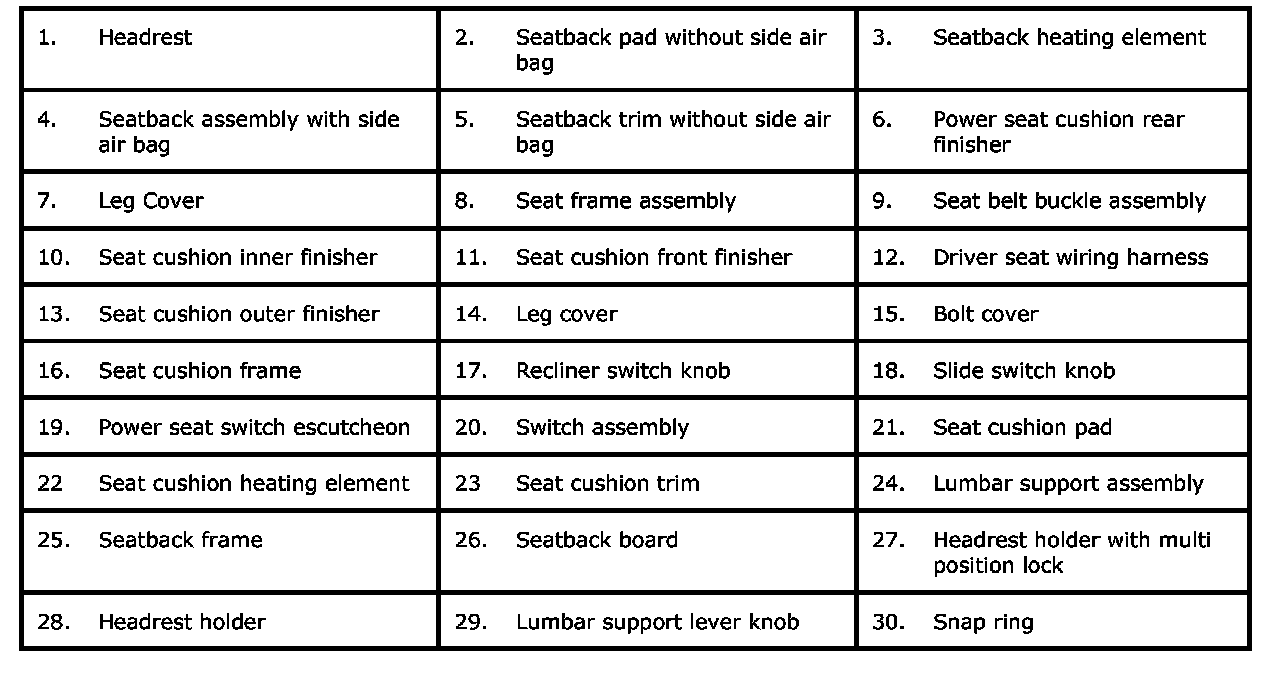

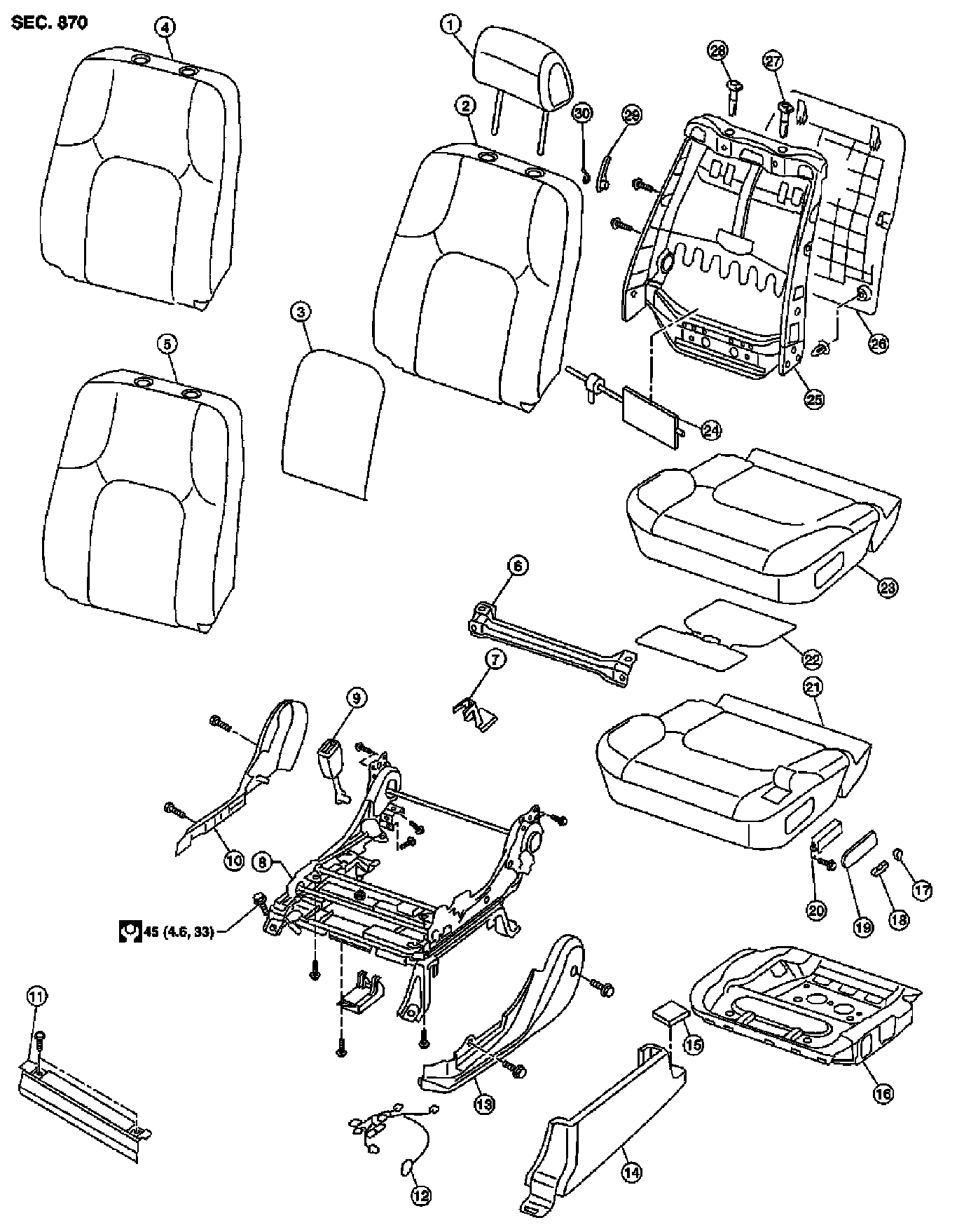

Power Driver Seat

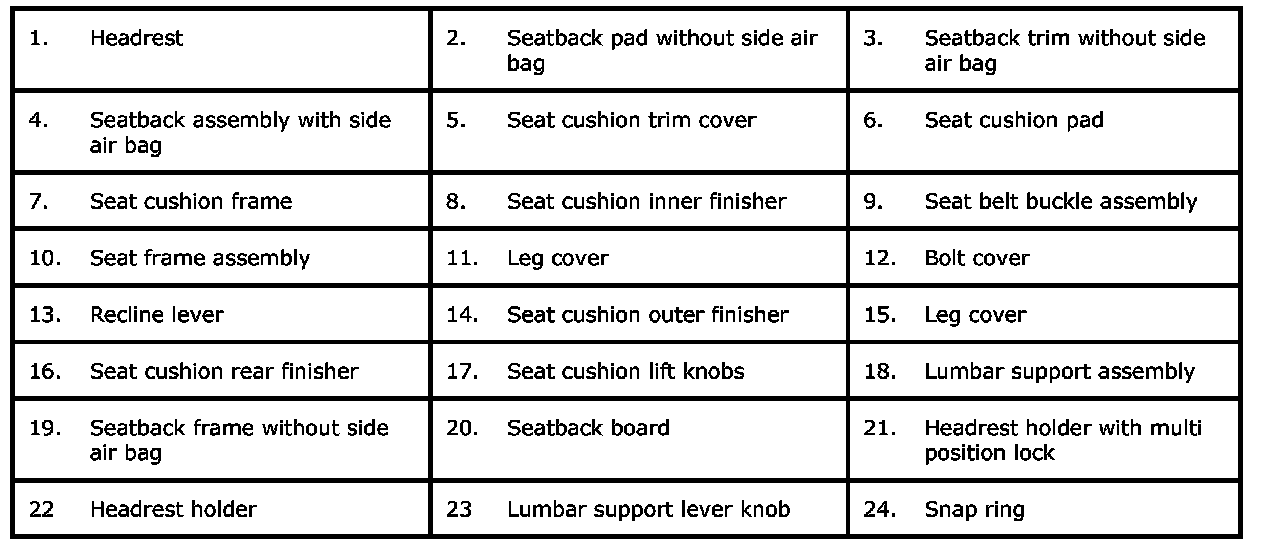

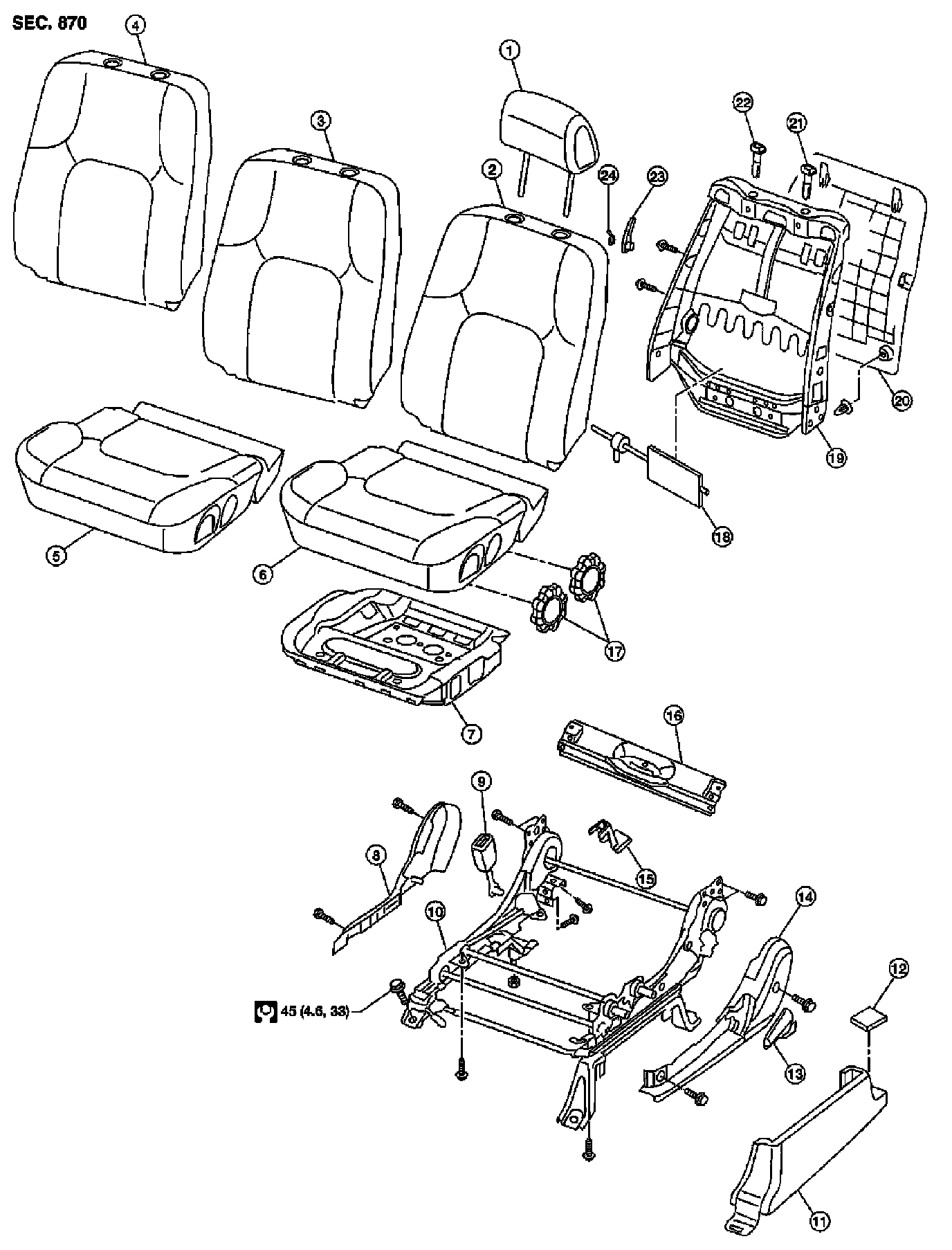

Manual Driver Seat

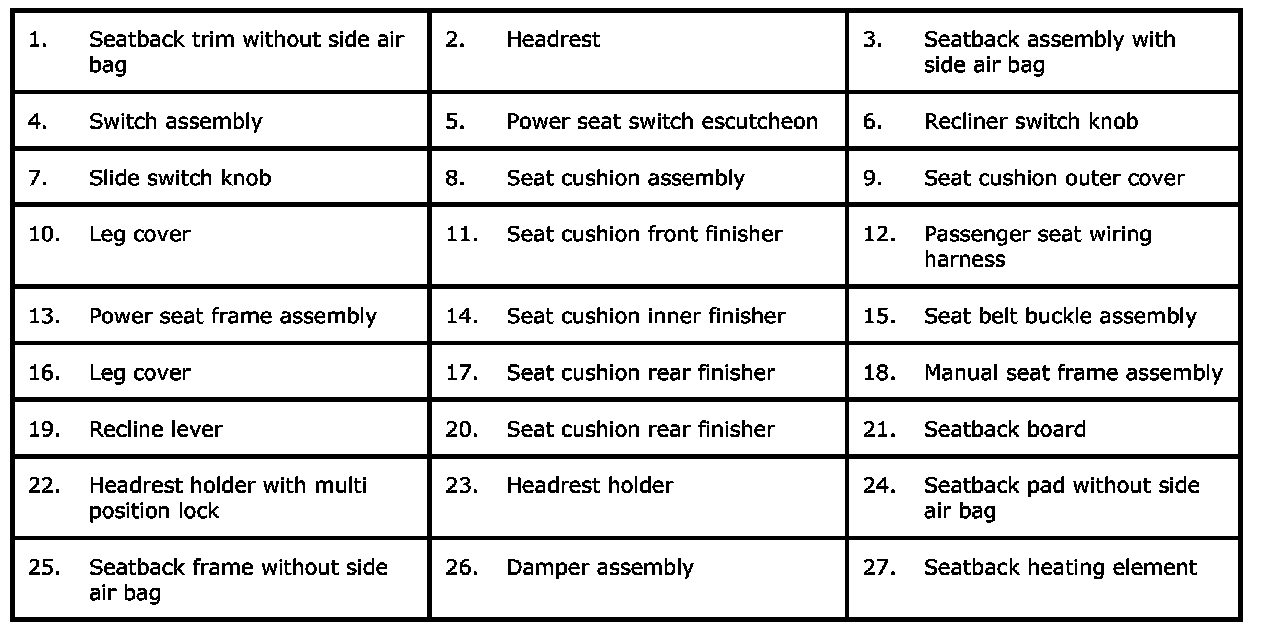

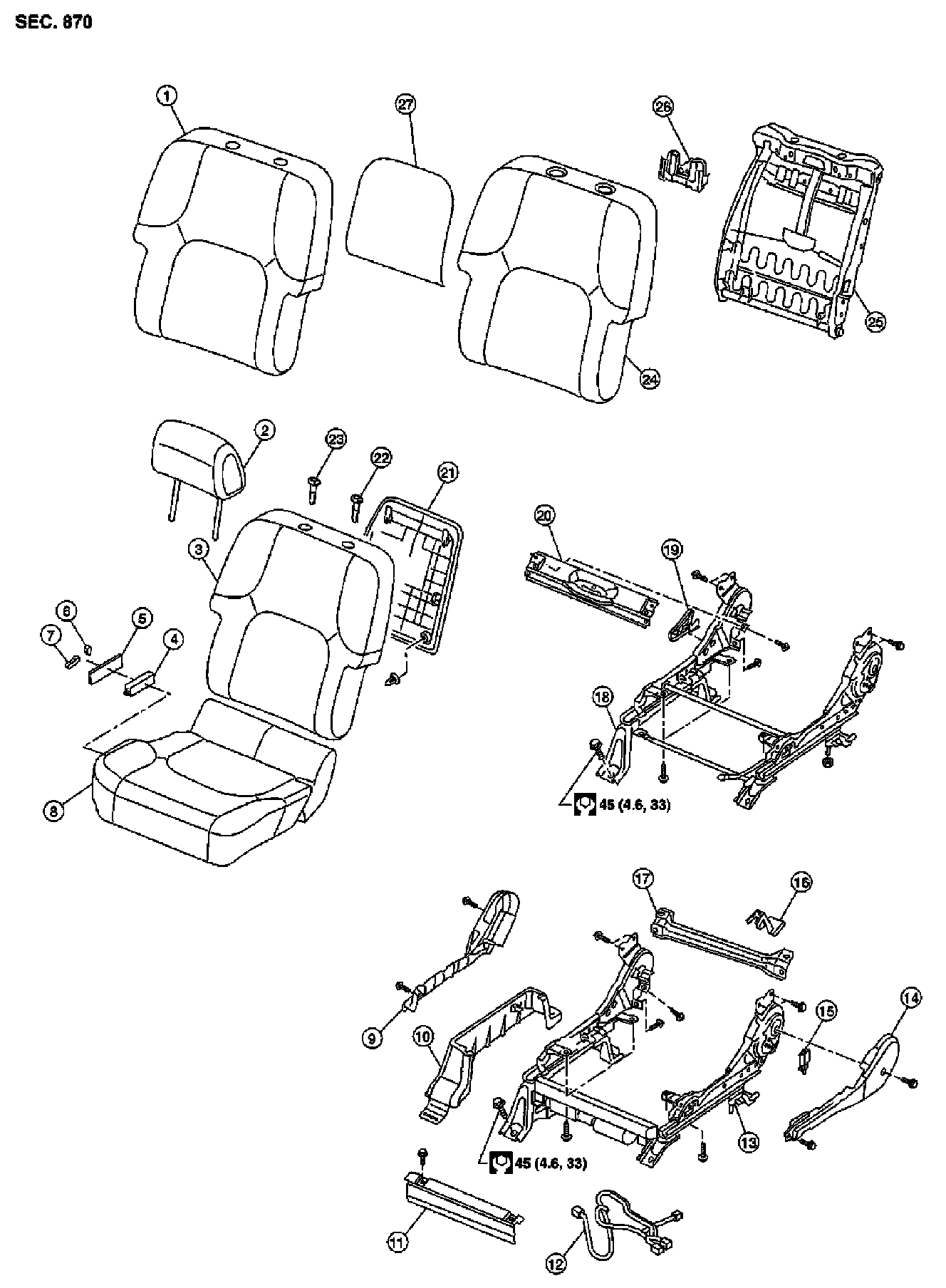

Conventional Passenger Seat

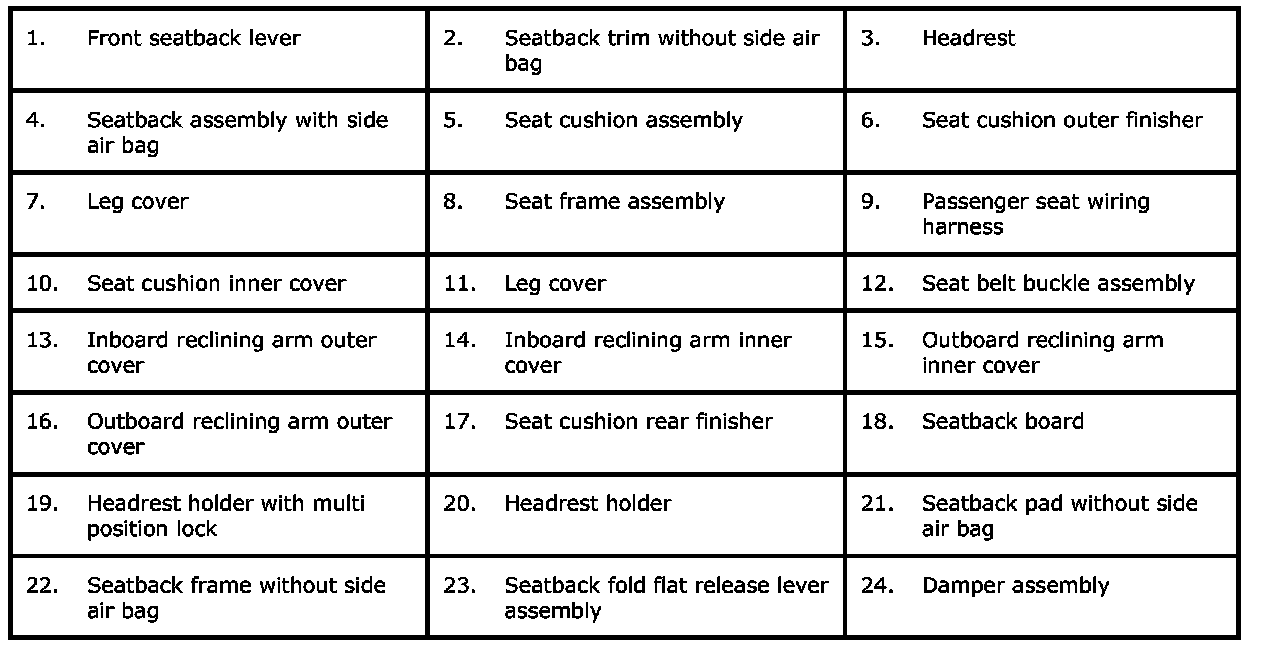

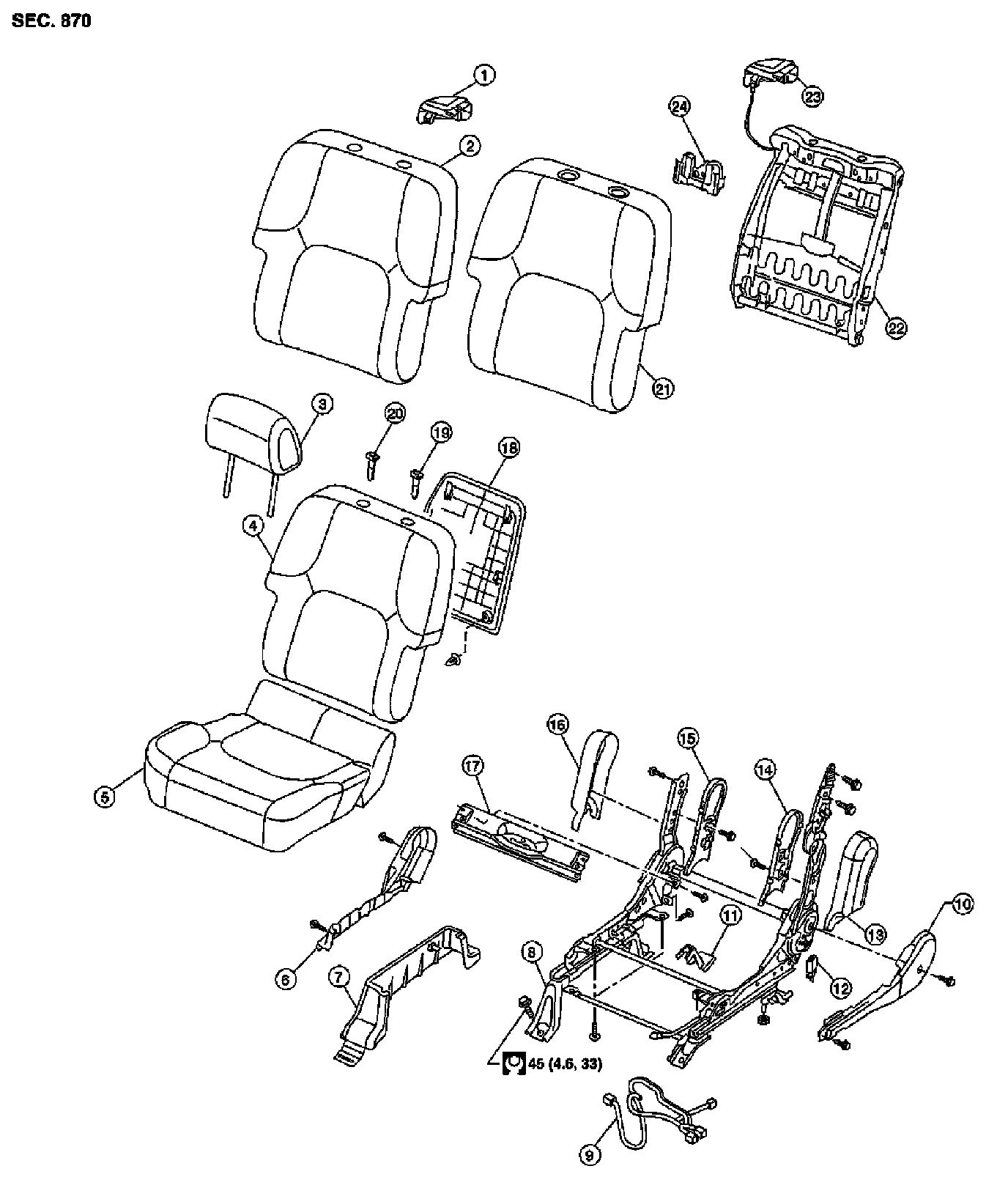

Fold Flat Passenger Seat
