Alignment: Specifications

Service Data and Specifications

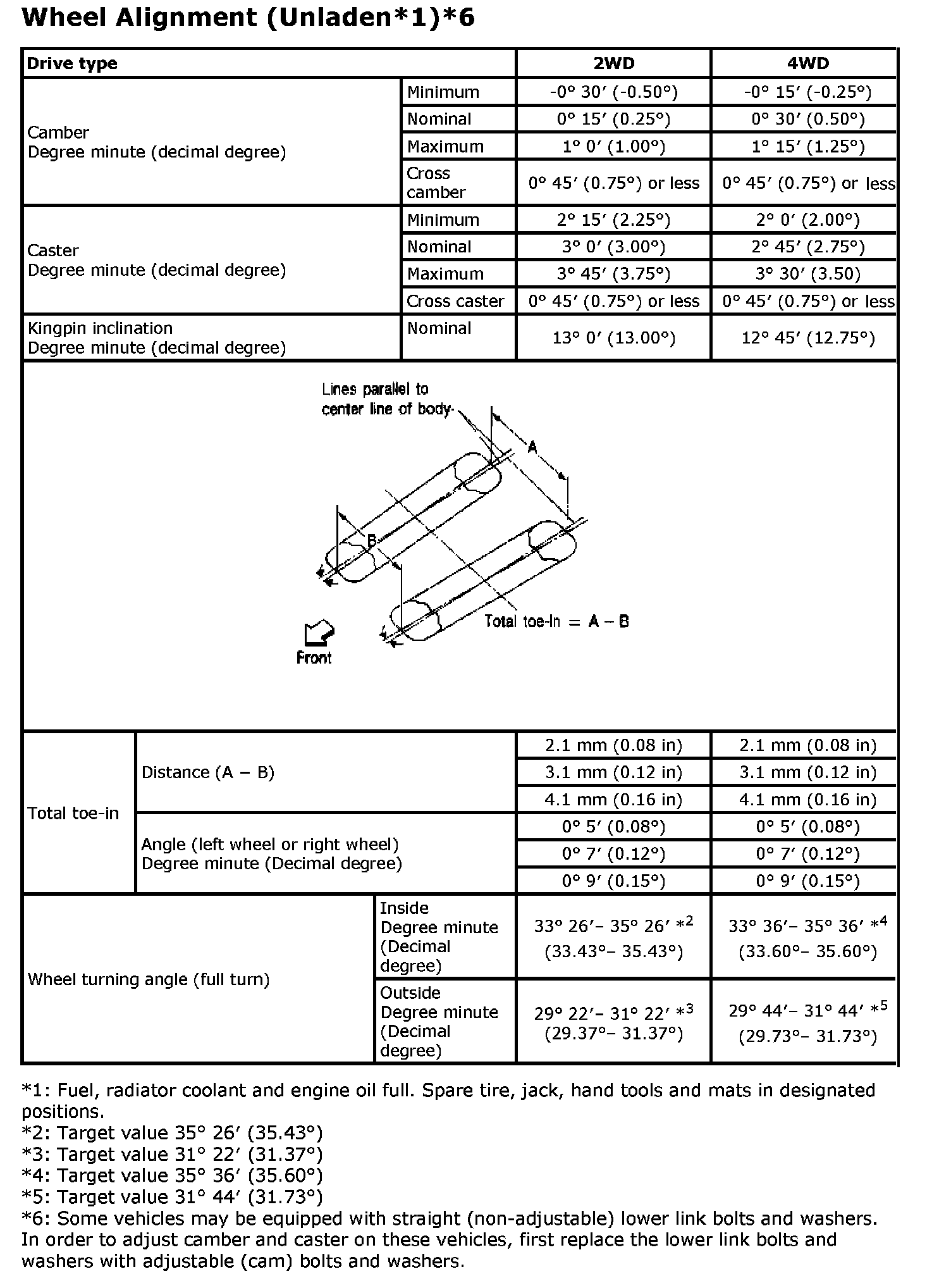

Wheel Alignment (Unladen*1)*6





Wheel arch Height (Unladen*1)

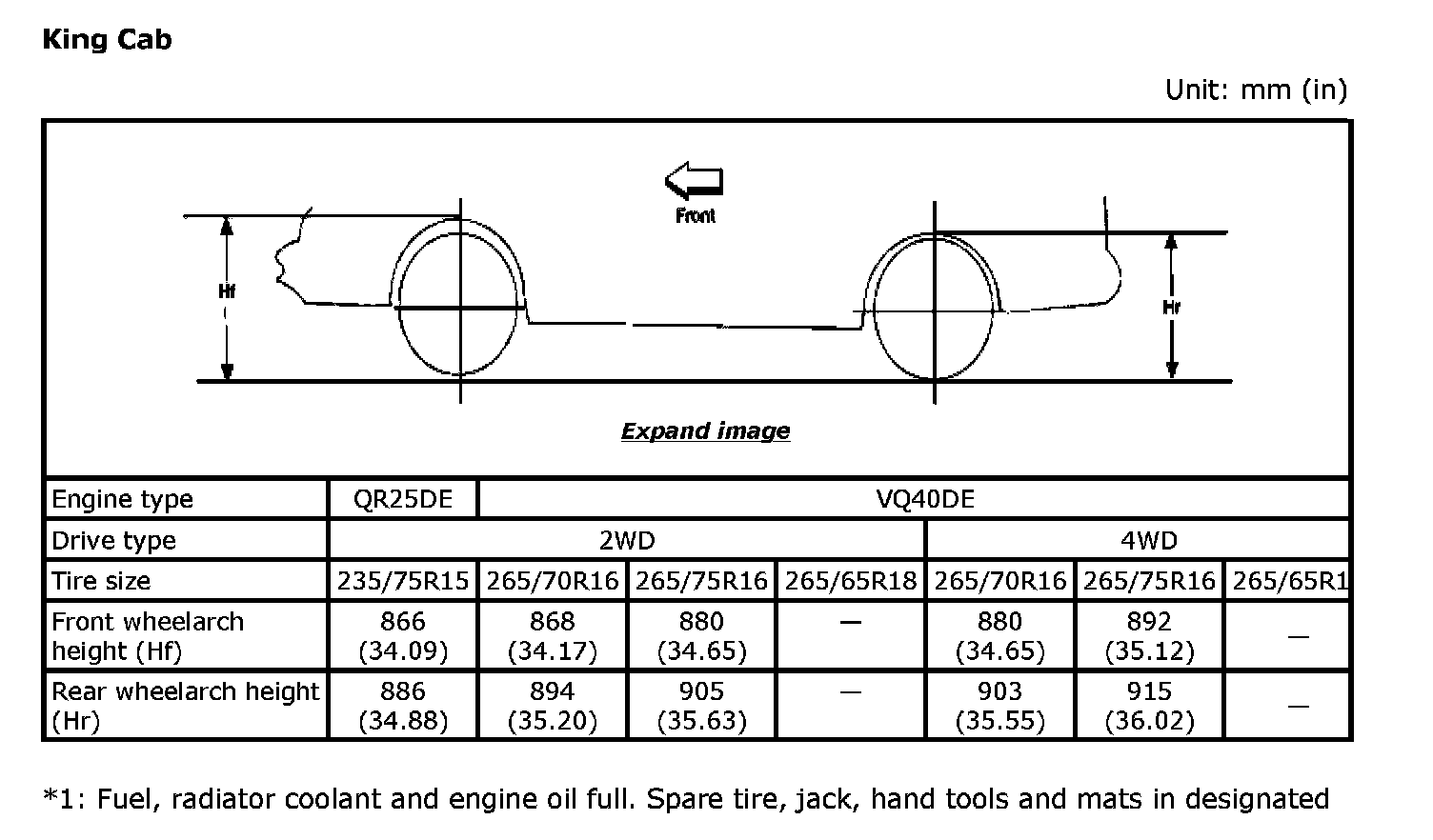

King Cab

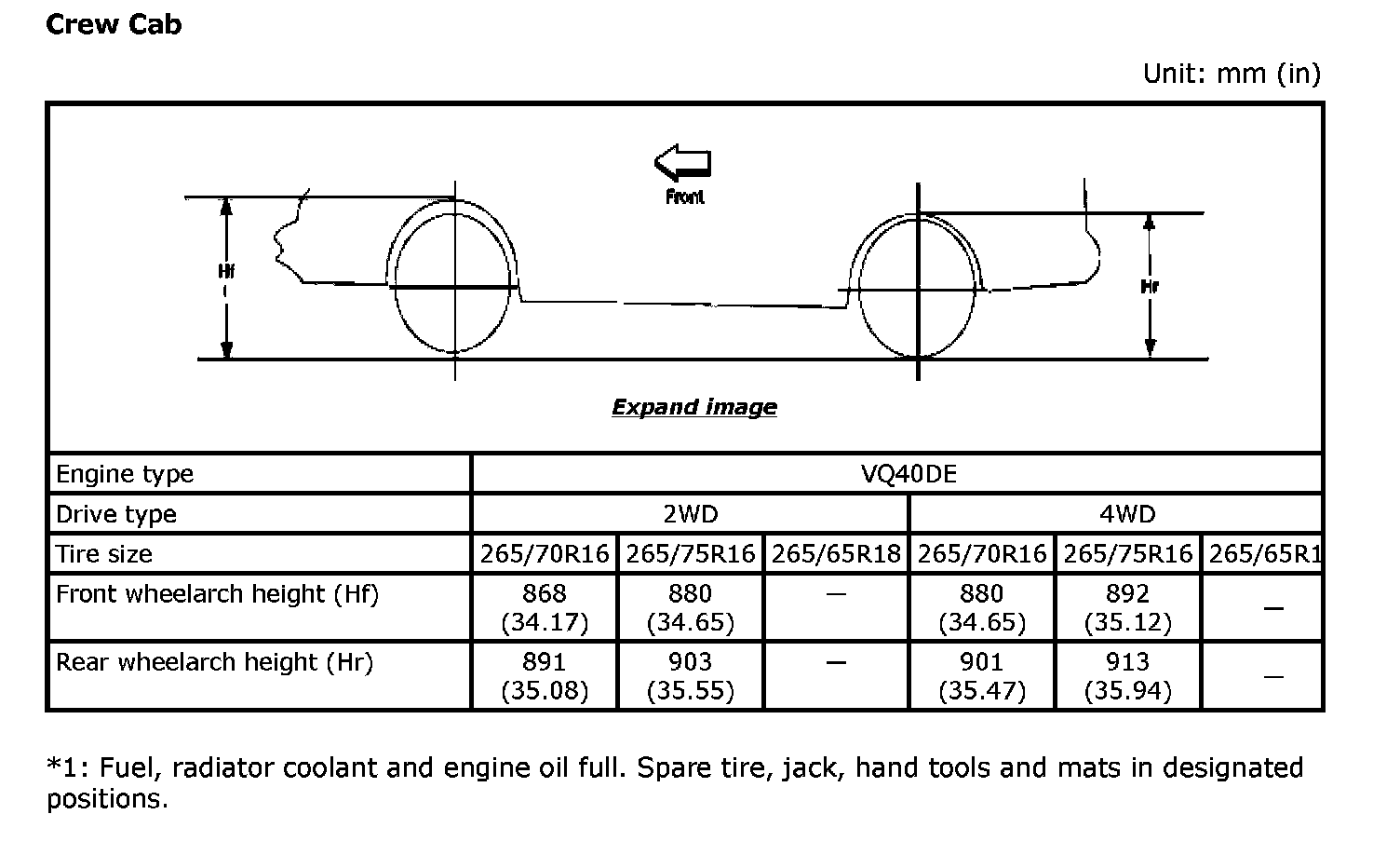

Crew Cab
