DTC Check Mode
DTC Check Mode
DTC Check Item
Regarding items of "DTC and 1st trip DTC", refer to [DTC Index: ECM].
DTC Index: ECM

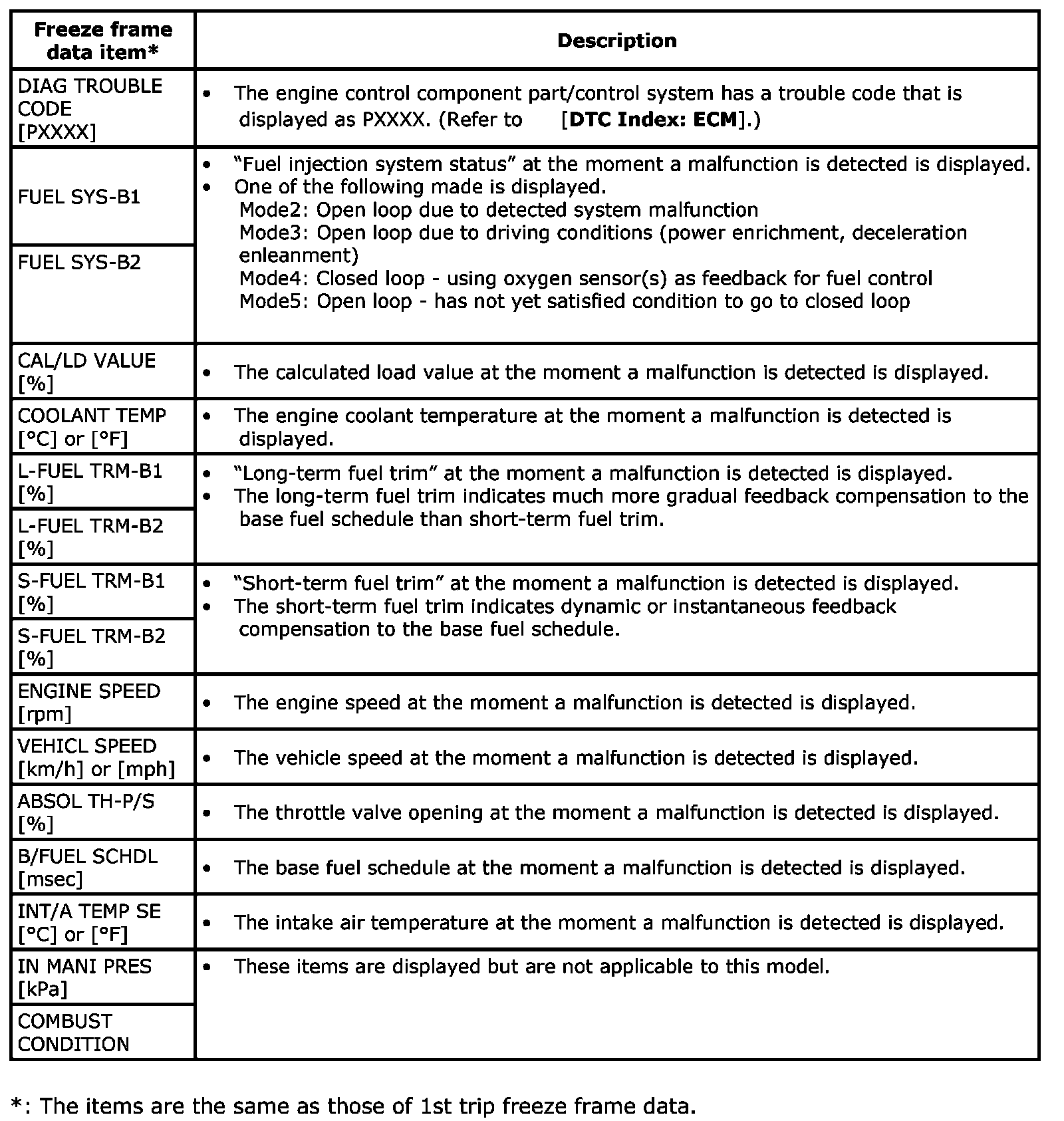

Freeze Frame Data and 1st Trip Freeze Frame Data
