Data List Mode

Data list Mode

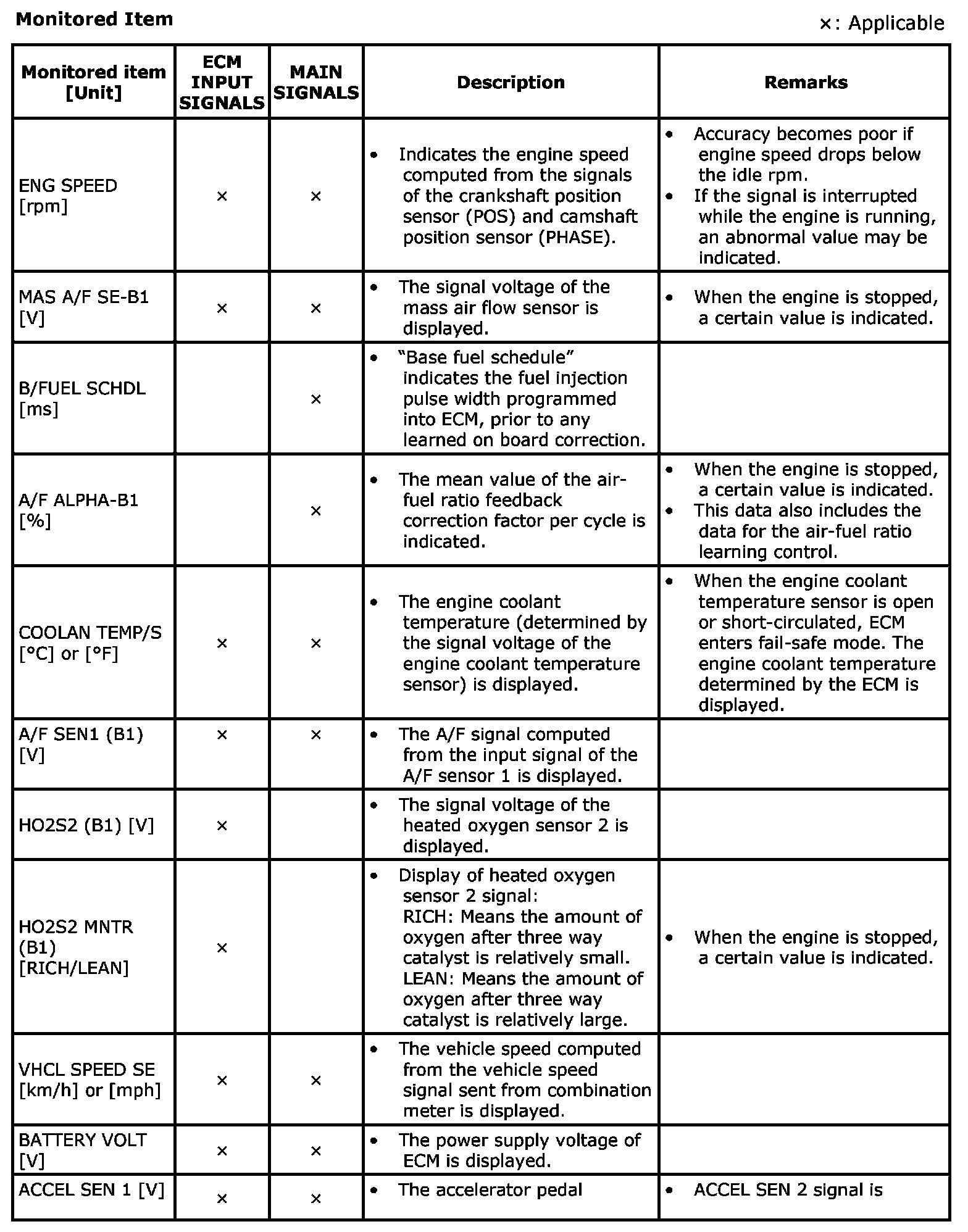

Monitored Item

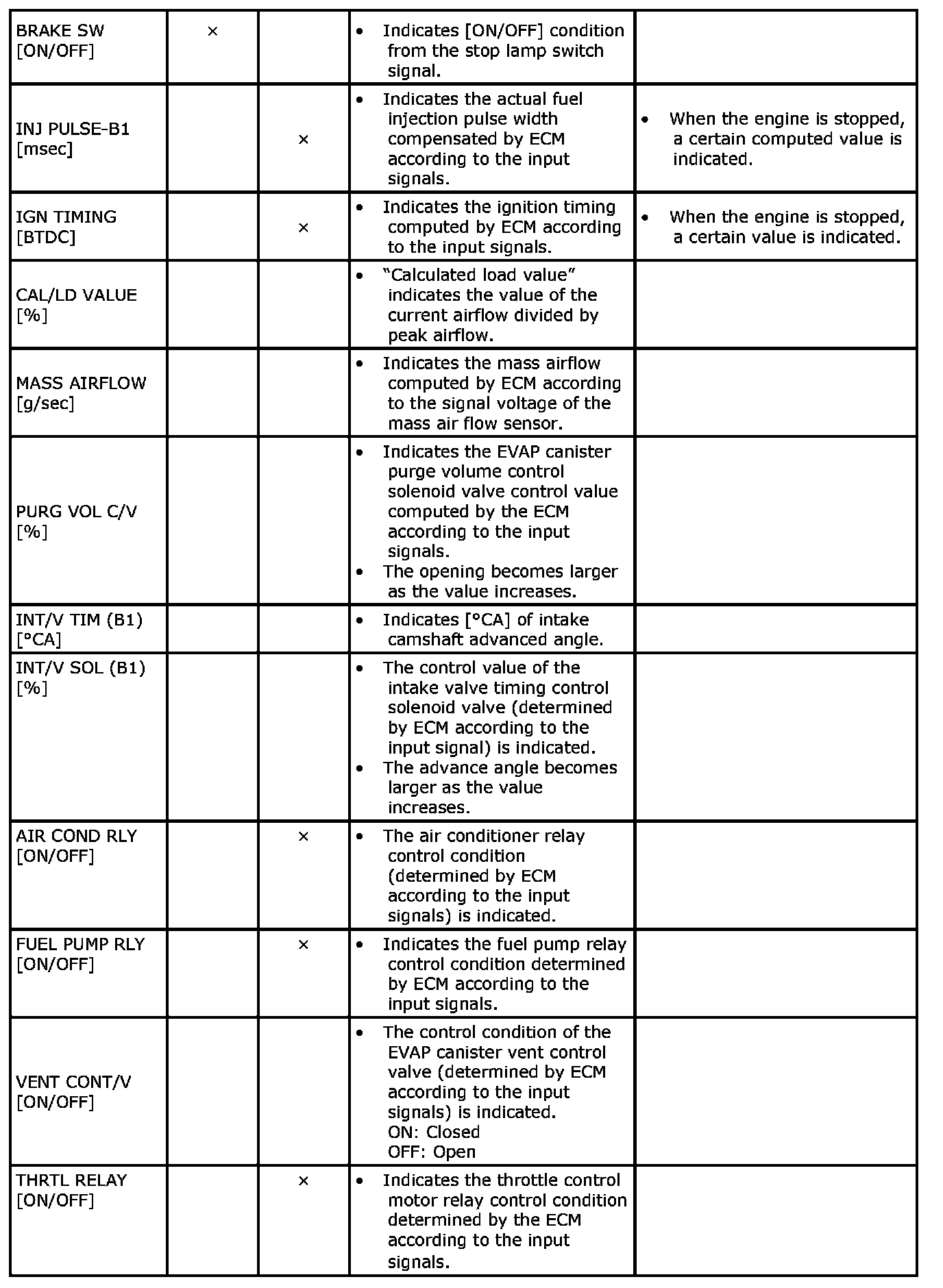

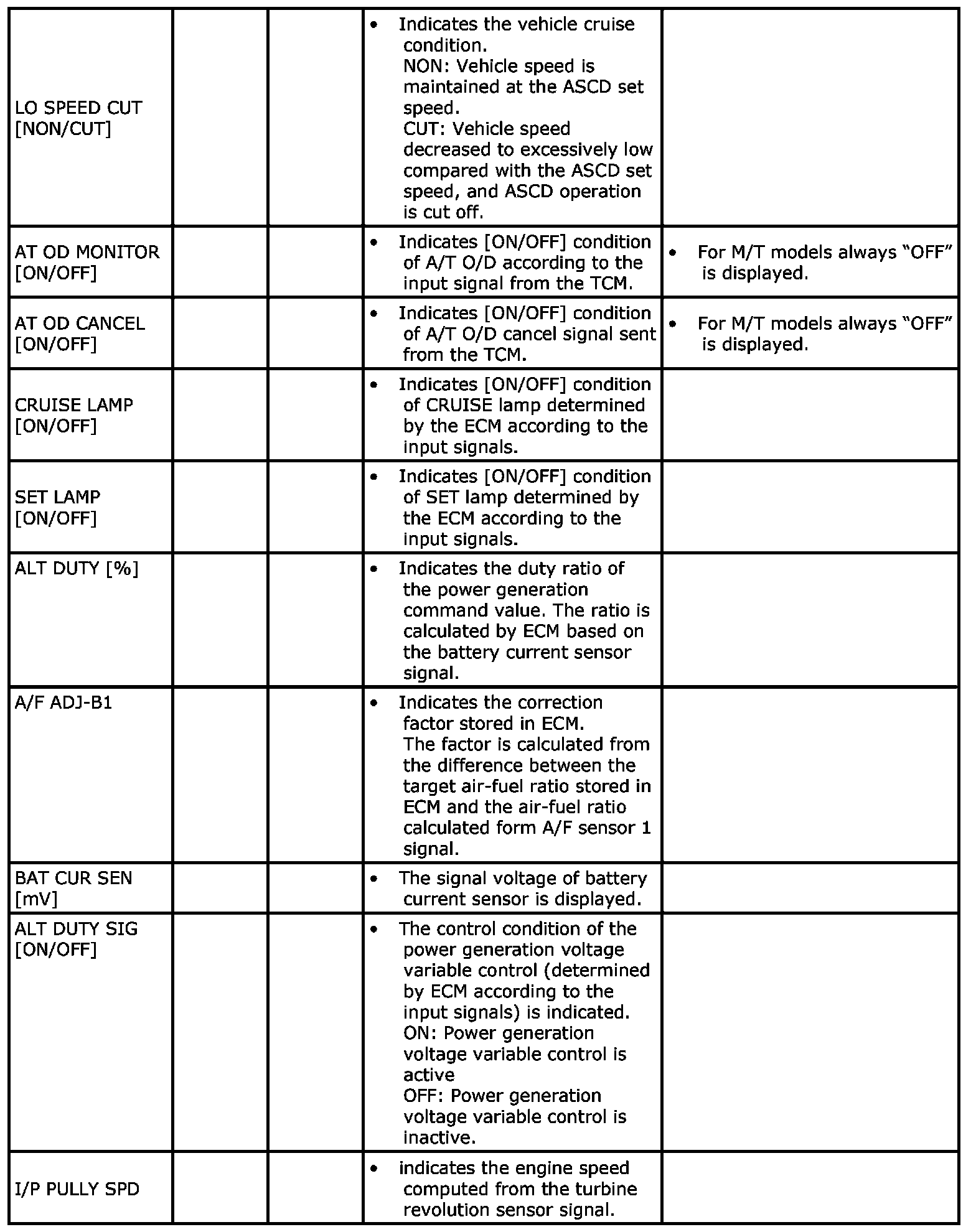

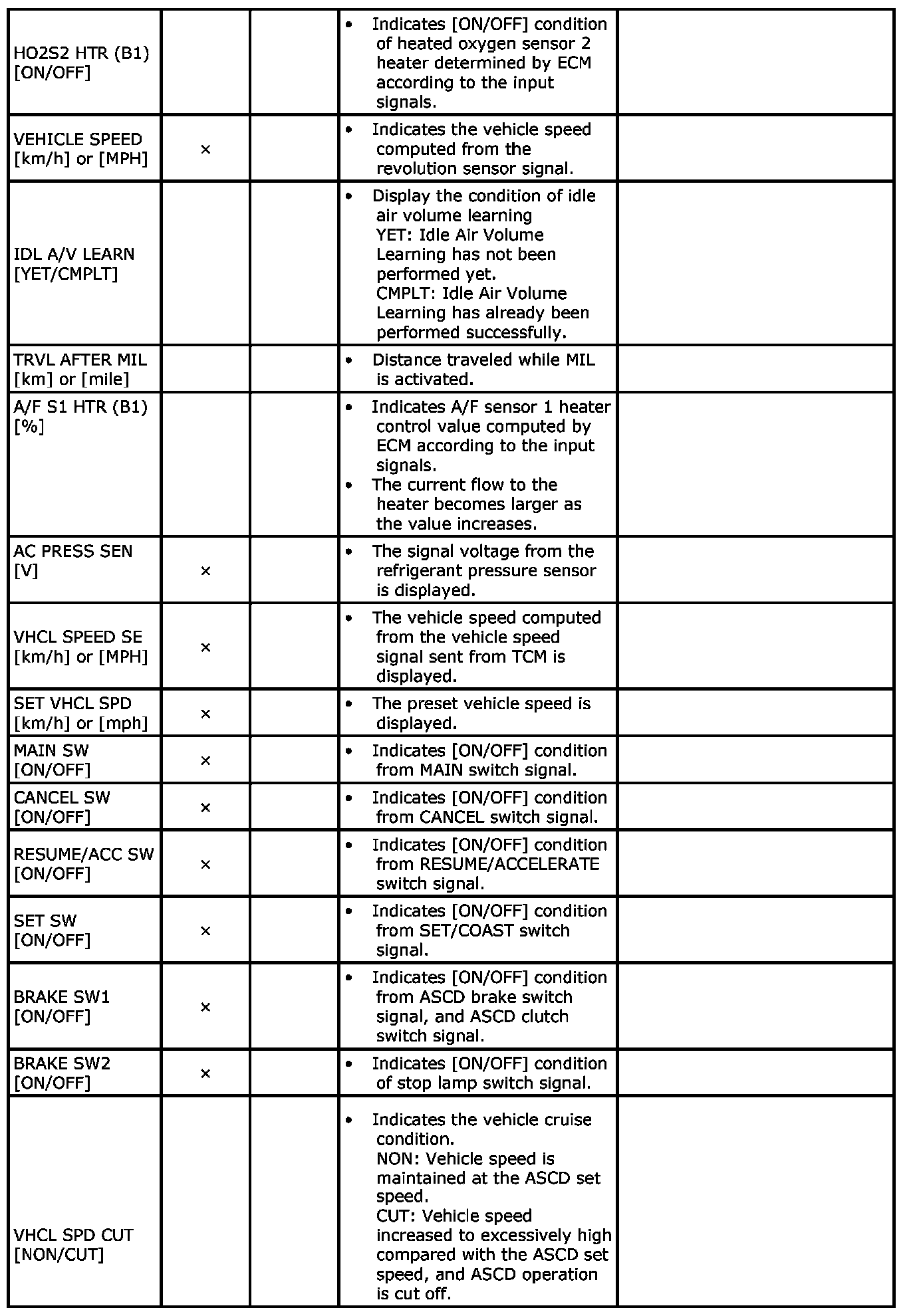

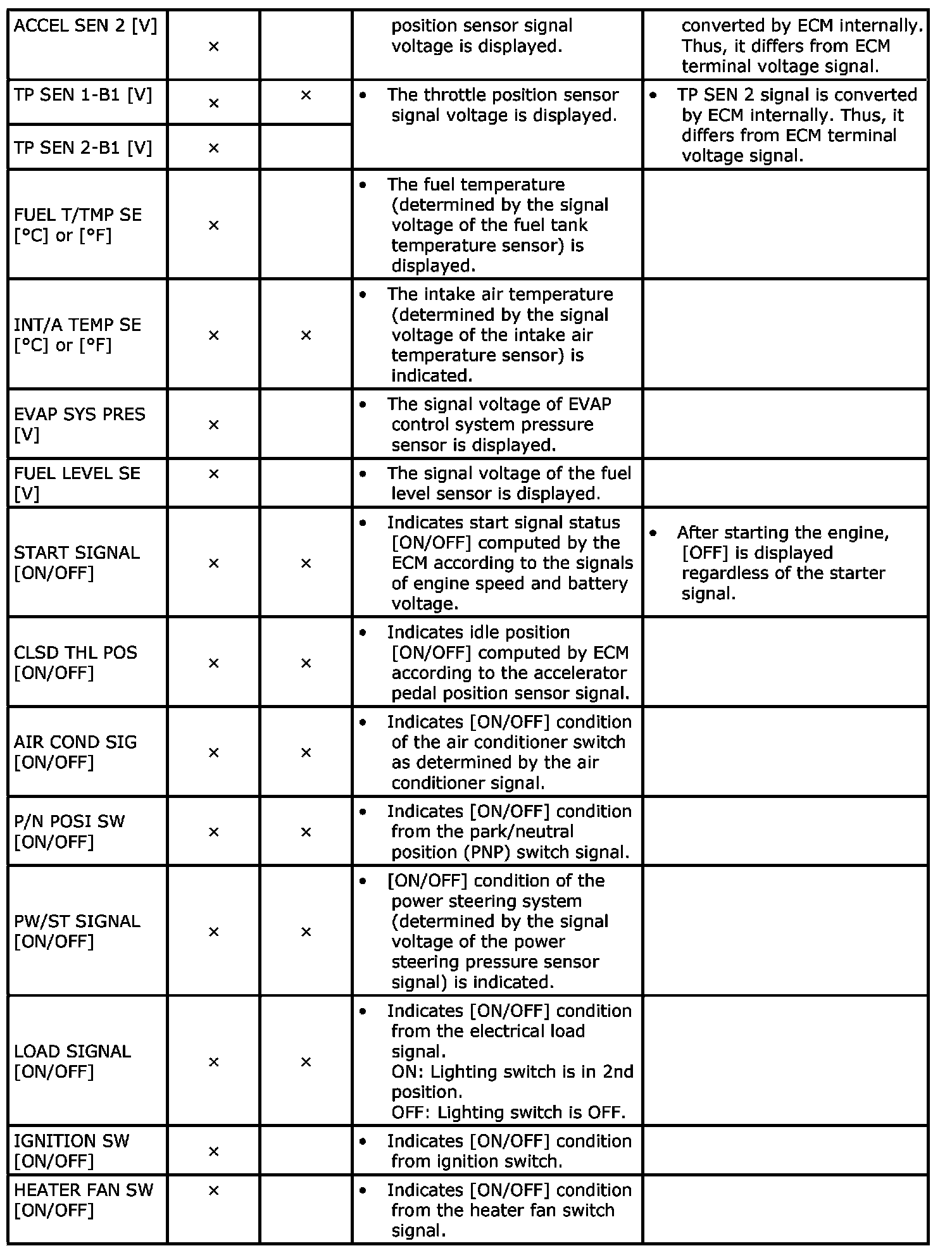

Data List Mode (Part 1):




Data List Mode (Part 2):




Data List Mode (Part 3):




Data List Mode (Part 4):




Data List Mode (Part 5):
