Service Data and Specifications

Service Data and Specifications

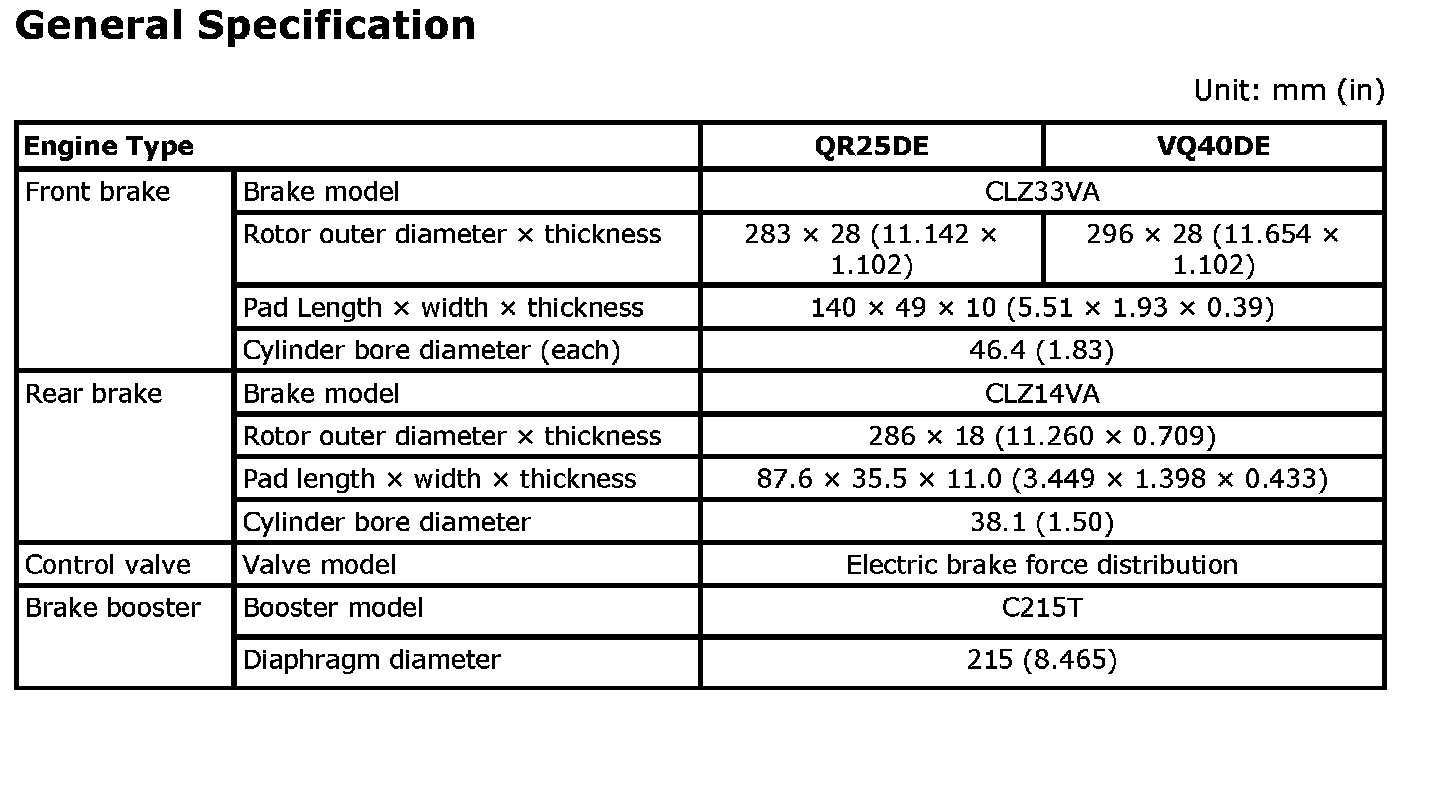

General Specification

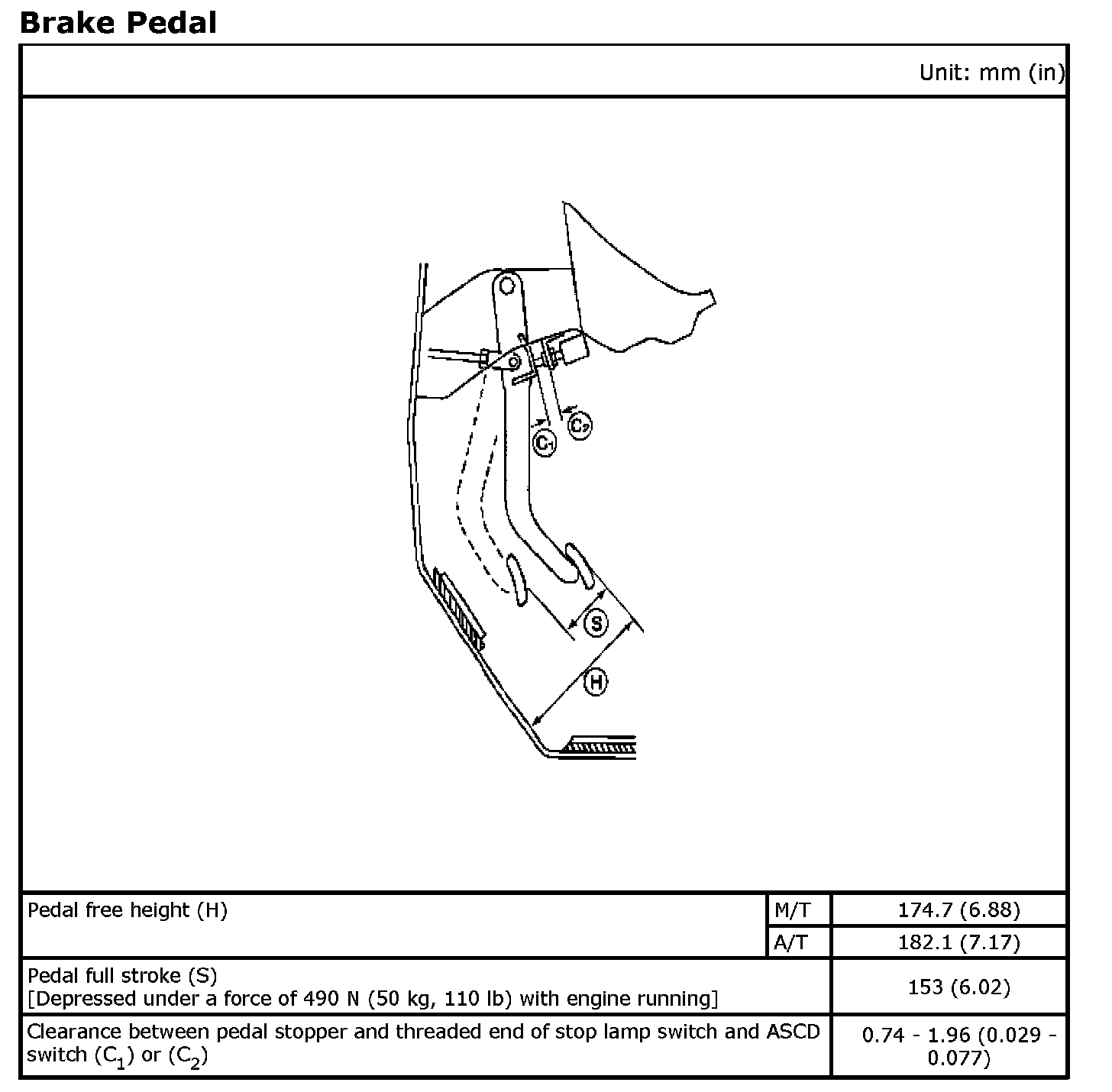

Brake Pedal

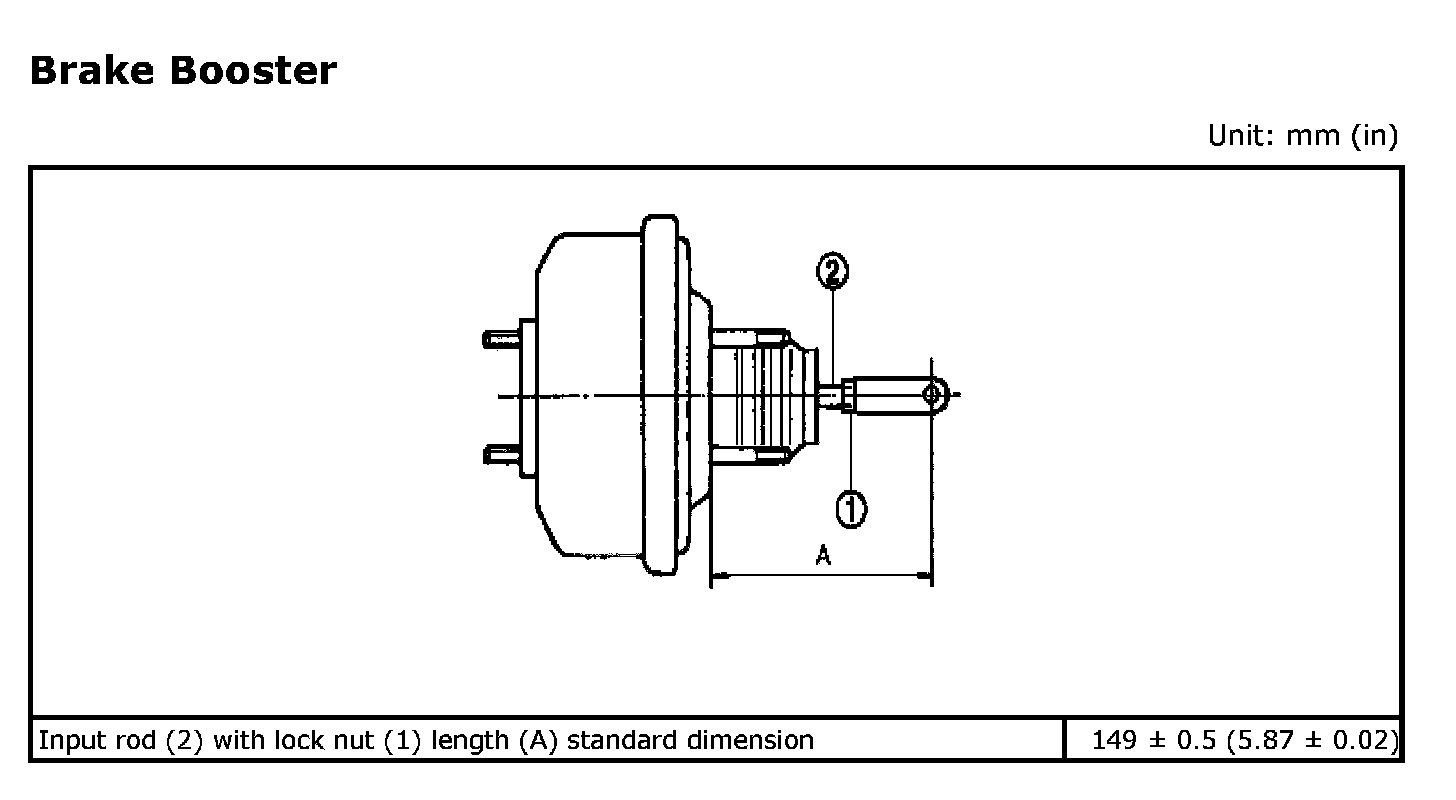

Brake Booster





Check Valve
