Diagnosis and Repair Work Flow

Diagnosis and Repair Work Flow

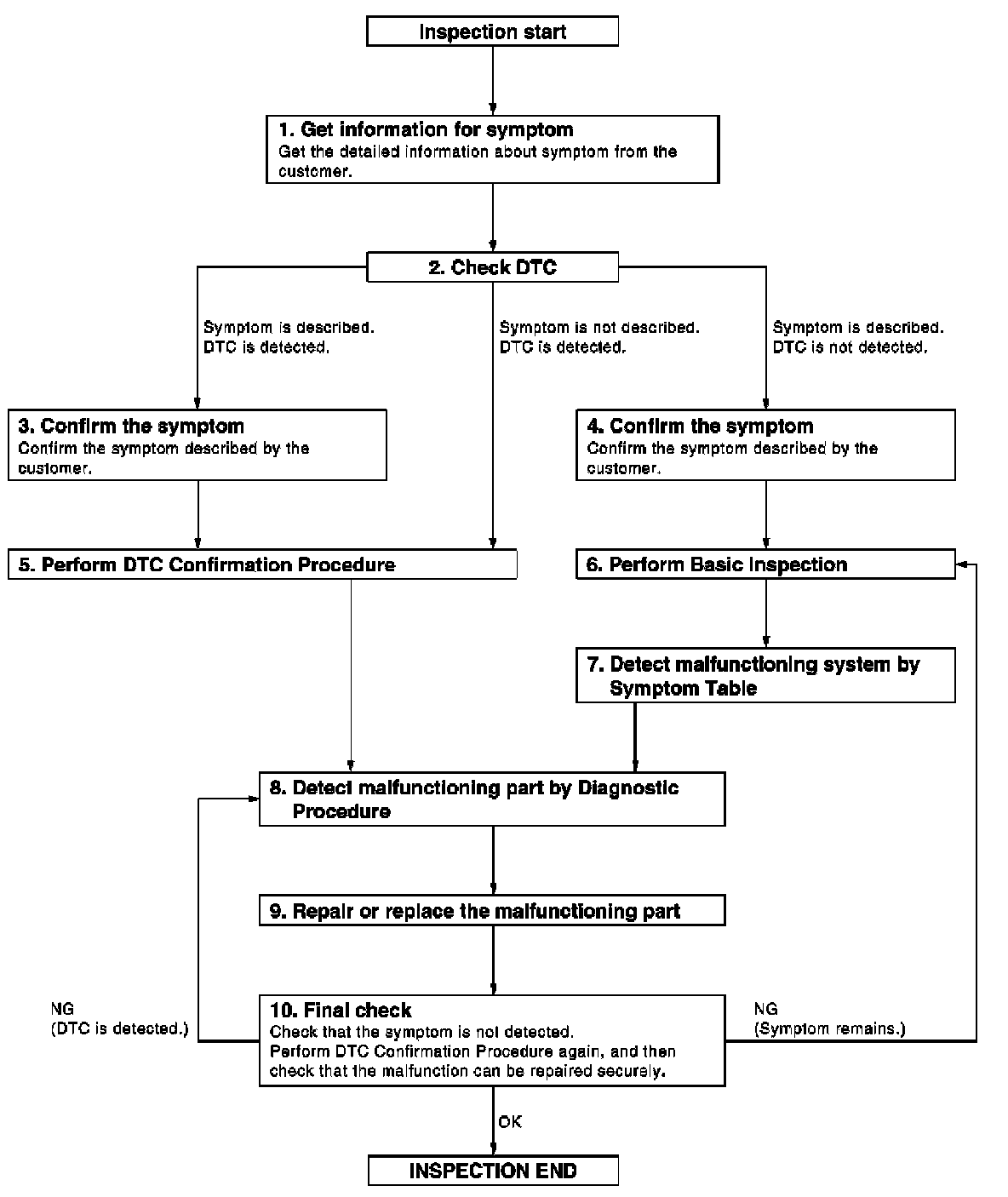

OVERALL SEQUENCE

Diagnosis and Repair Workflow:






DETAILED FLOW

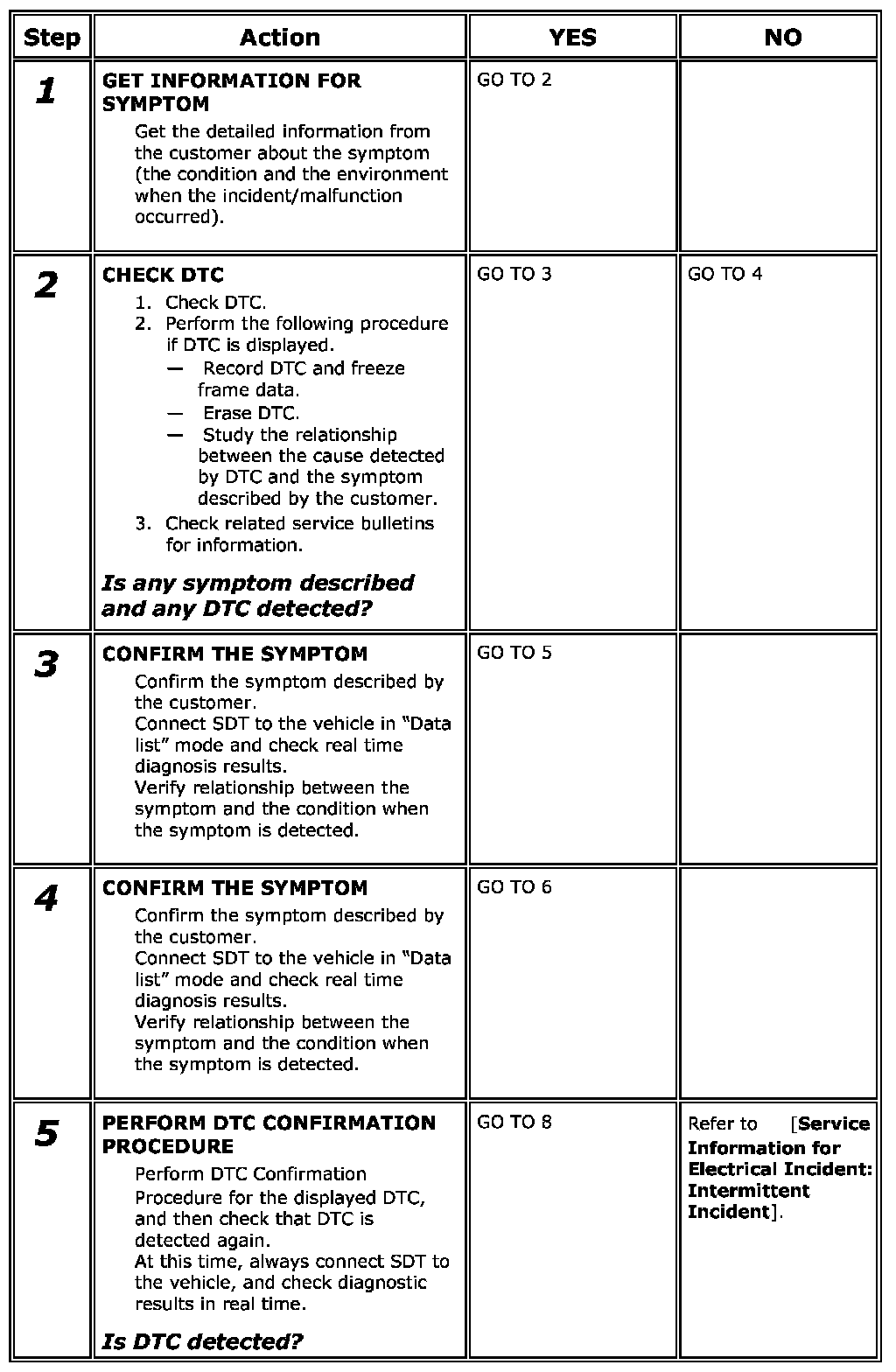

Step 1-5:

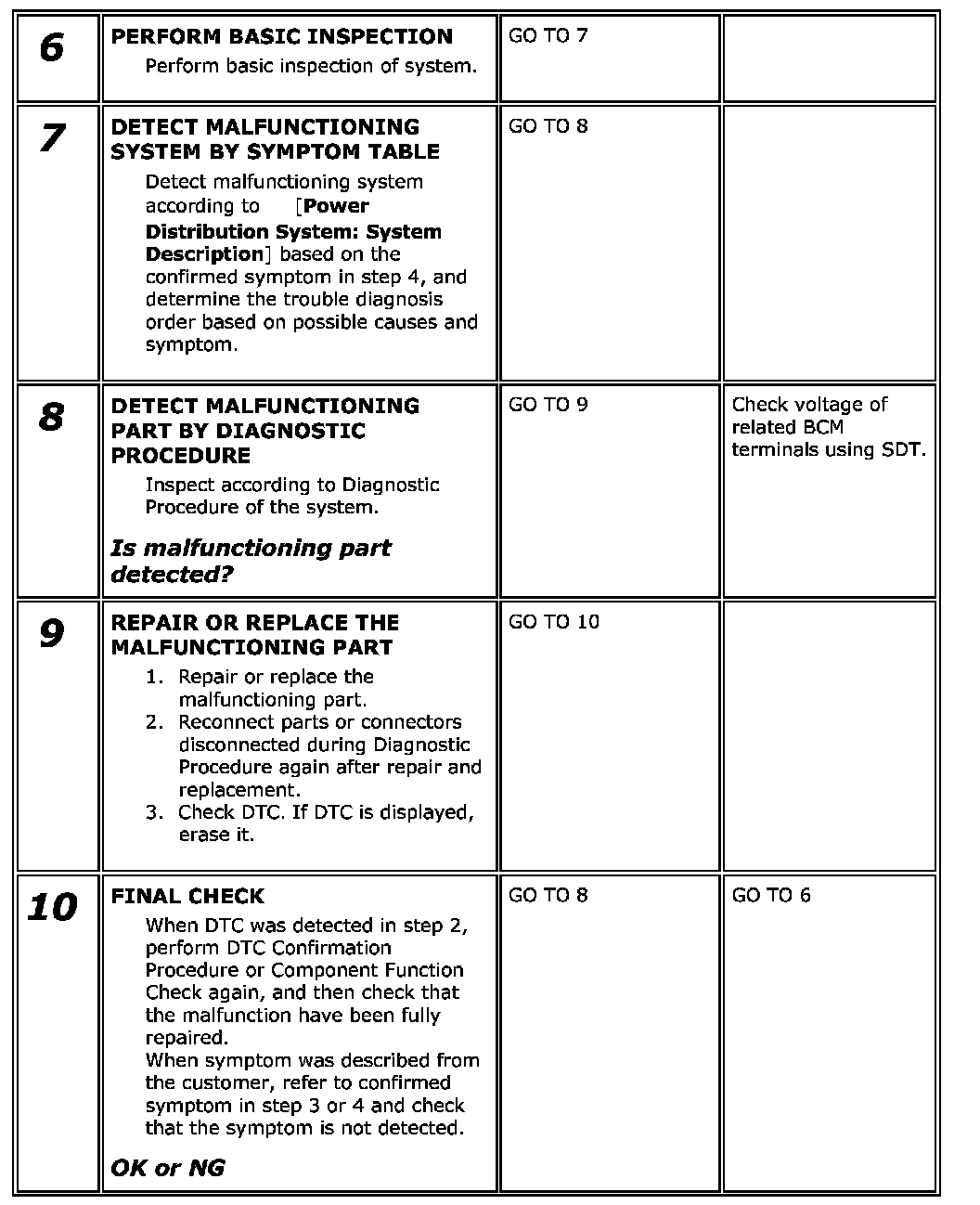

Step 6-10:
