Control Unit: Service and Repair
Differential Lock Control Unit: Removal and InstallationREMOVAL
1) Disconnect the battery cable from the negative terminal.
2) Remove jack and tools.
3) Remove upper bracket of center seat belt retractor and belt assembly.
4) Remove the necessary push pins and reposition rear panel out of the way.

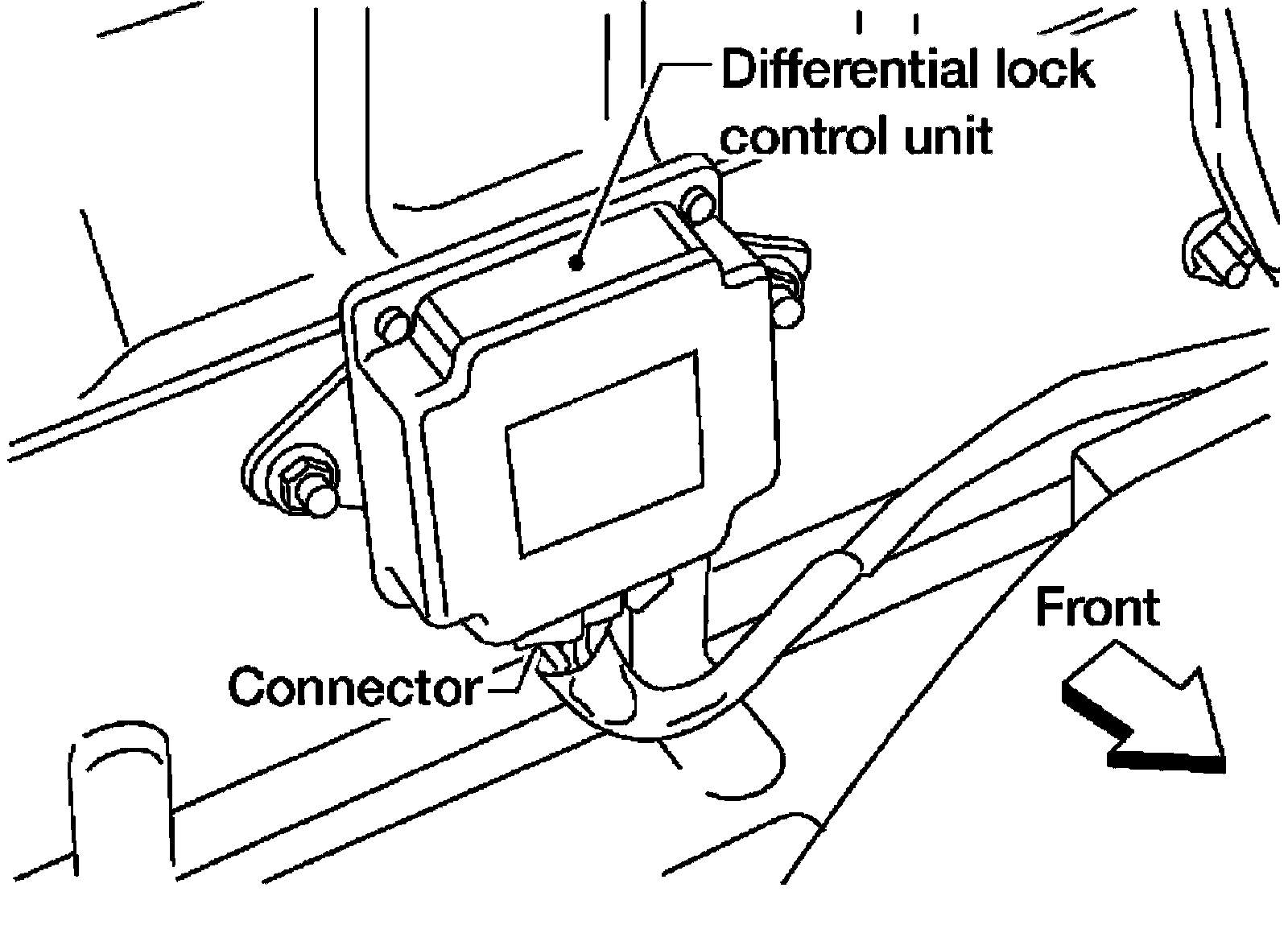

5) Reposition the carpet to access differential lock control unit to disconnect connector.
6) Remove the two nuts and remove differential lock control unit.
INSTALLATION
Note the following, and installation is in the reverse order of removal.
^ When installing differential lock control unit, tighten nuts to the specified torque.
Differential lock control unit nuts: 5.1 Nm (0.52 kg-m, 45 in-lb).
