Engine Control Harness

ENGINE CONTROL HARNESS (VQ40DE MODELS)

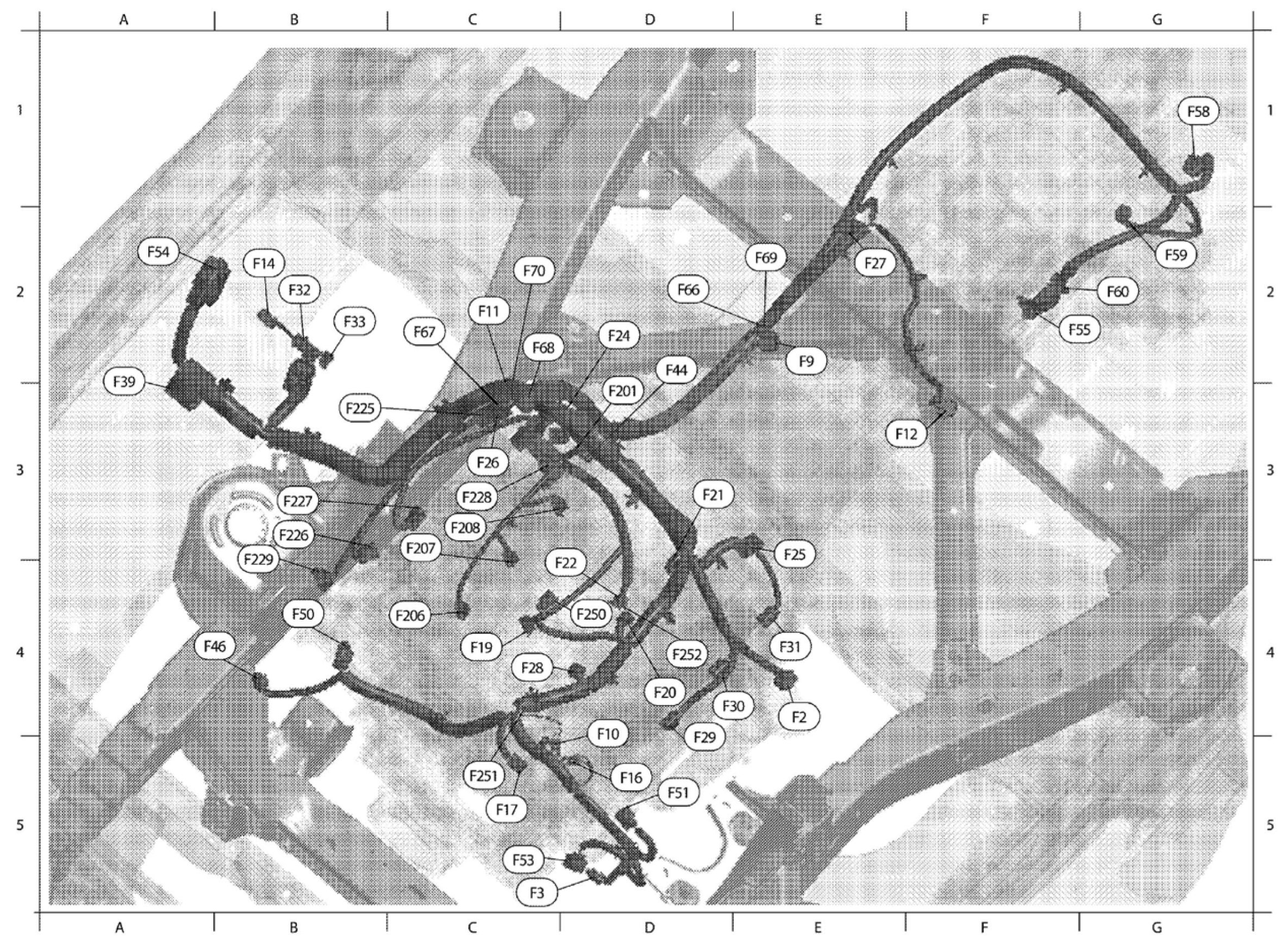

Engine Control Harness View:






ENGINE CONTROL HARNESS (VQ40DE MODELS) INDEX

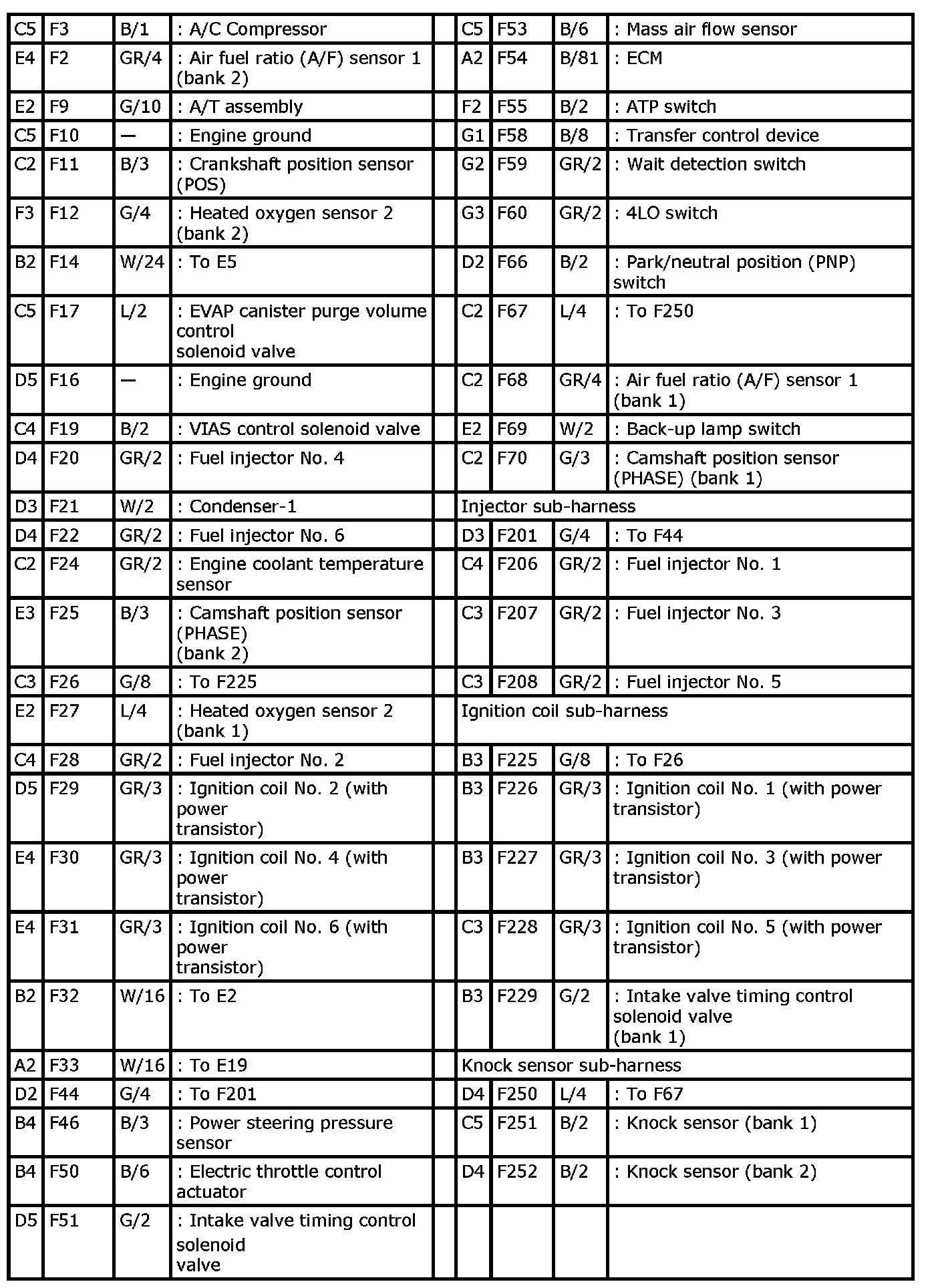

Engine Control Harness Index:
