How to Use CAN Communication Signal Chart

How to Use CAN Communication Signal Chart

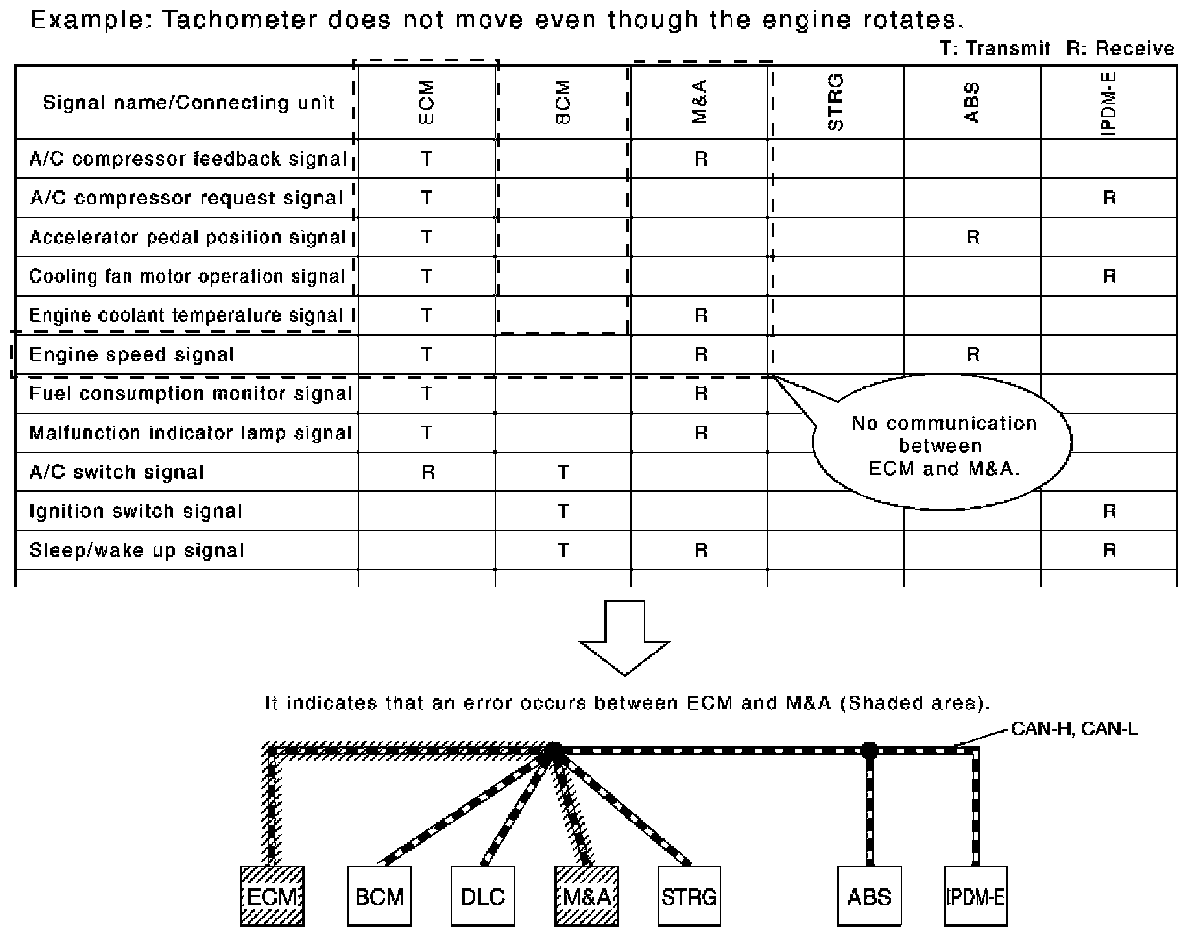

The CAN communication signal chart lists the signals needed for trouble diagnosis. It is useful for detecting the root cause by finding a signal related to the symptom, and by checking transmission and reception unit.
