Steering Column

STEERING COLUMN SPECIFICATIONS

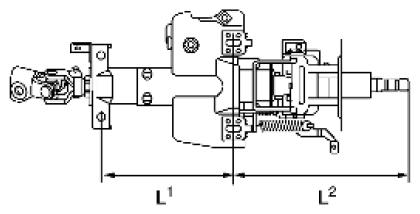

G06445853Courtesy of SUZUKI OF AMERICA CORP.
Steering column length "L1" 165.1 mm (6.500 in)
Steering column length "L2" 258.0 mm (10.16 in)
G06445854Courtesy of SUZUKI OF AMERICA CORP.
Tilt range "A" 73.8 mm (2.906 in)
