Inspection Procedure

1. Turn ignition switch OFF.
2. Connect GST to data link connector, which is located under LH dash panel near the hood opener handle.

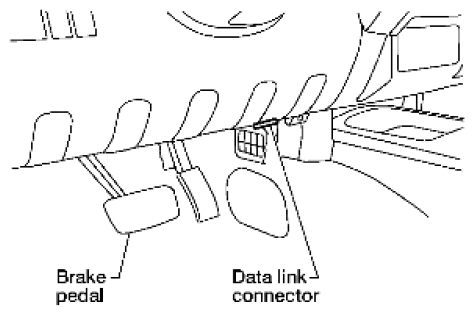

   Fig 1: Connecting GST To Data Link Connector

   Courtesy of SUZUKI OF AMERICA CORP.
3. Turn ignition switch ON.
   Fig 2: Screen Display - Program Card

   Courtesy of SUZUKI OF AMERICA CORP.
4. Enter the program according to instruction on the screen or in the operation manual.

   (*: Regarding GST screens in this section, sample screens are shown.)

5. Perform each diagnostic mode according to each service procedure.

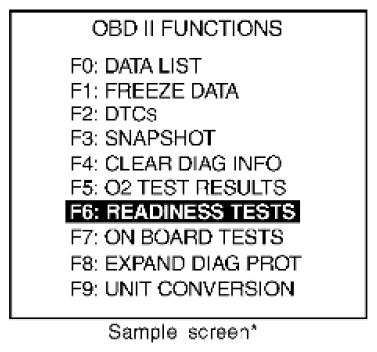

   Fig 3: Screen Display - Readiness Tests

   Courtesy of SUZUKI OF AMERICA CORP.

For further information, see the GST Operation Manual of the tool maker.
