Camshaft Position Sensor (Phase)

  1. Loosen the fixing bolt of the sensor.
  2. Disconnect camshaft position sensor (PHASE) harness connector.
  3. Remove the sensor.
  4. Visually check the sensor for chipping.
    Fig 1: Checking Sensor For Chipping
    G06441431Courtesy of SUZUKI OF AMERICA CORP.

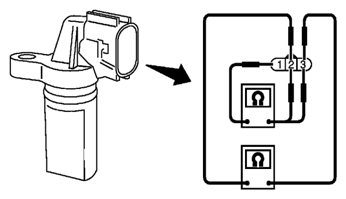

  5. Check resistance as shown in the figure.
    Fig 2: Checking Resistance Between Crankshaft Position Sensor Connector
    G06441432Courtesy of SUZUKI OF AMERICA CORP.
    RESISTANCE SPECIFICATION

    Terminal No. (Polarity) Resistance Ω [at 25°C (77°F)]
    1 (+) - 2 (-) Except 0 or ∞
    1 (+) - 3 (-)
    2 (+) - 3 (-)
