Component Description

When the brake pedal is depressed, ASCD brake switch is turned OFF and stop lamp switch is turned ON. ECM detects the state of the brake pedal by two types of input (ON/OFF signal).

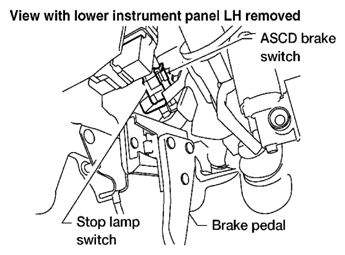

Fig 1: Identifying ASCD Brake Switch And Stop Lamp Switch
G06441646Courtesy of SUZUKI OF AMERICA CORP.

Refer to [ASCD: SYSTEM DESCRIPTION ] for the ASCD function.
