"D5" Position

The front brake fastens the front sun gear.
The input clutch is coupled and the front internal gear and mid internal gear are connected.
The high and low reverse clutch is coupled and the mid sun gear and rear sun gear are connected.

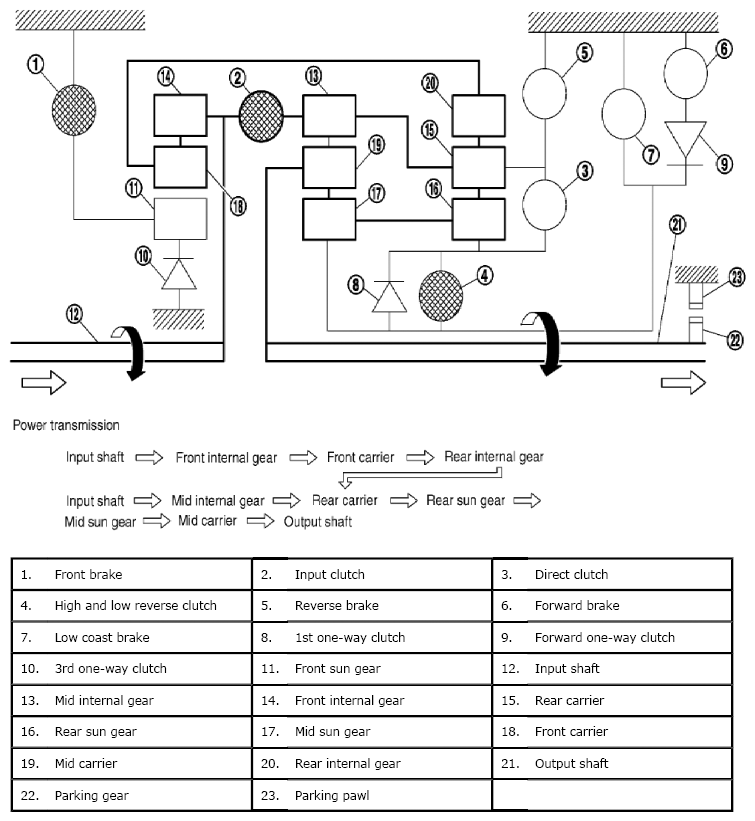

Fig 1: Automatic Transmission Power Flow Diagram - D5 Position
Courtesy of SUZUKI OF AMERICA CORP.
