Keyless Start Control Module Power and Ground Circuit Check

Keyless Start Control Module Power and Ground Circuit Check

Wiring Diagram

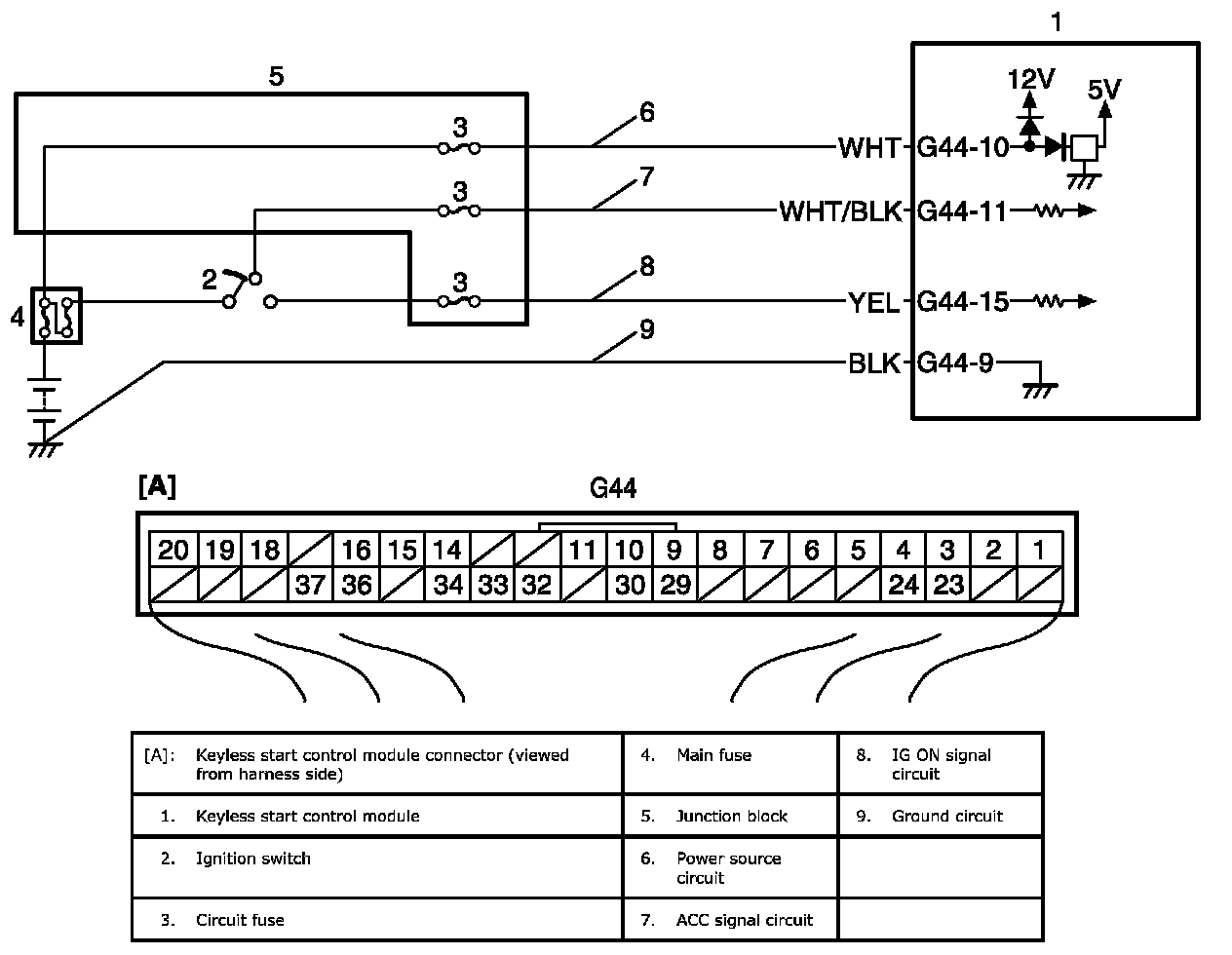

Wiring Diagram:






Troubleshooting

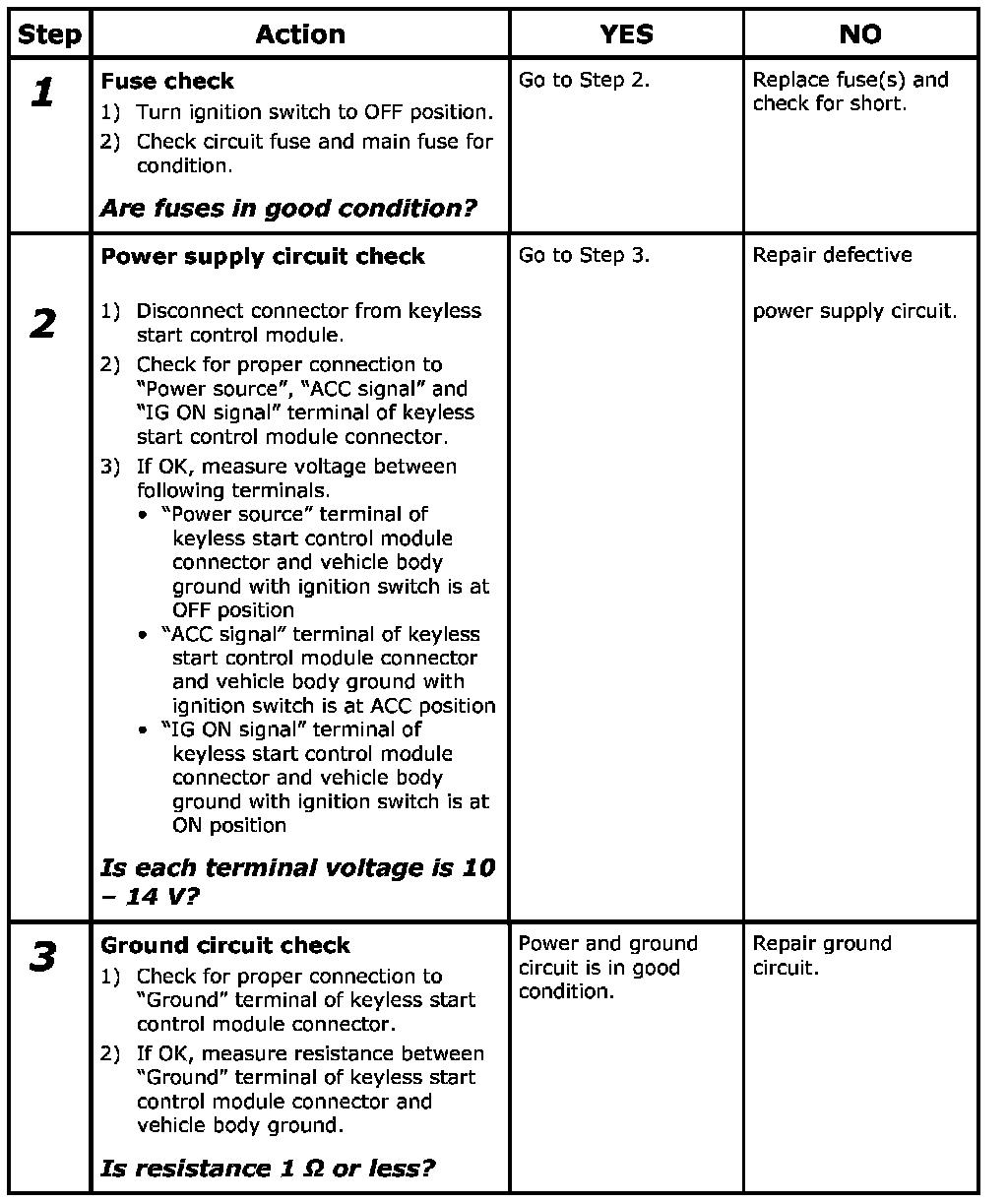

Step 1-3:
