Manual Transmission/Transaxle
>>
Gear Shift Control Lever Rear Case Assembly Components
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

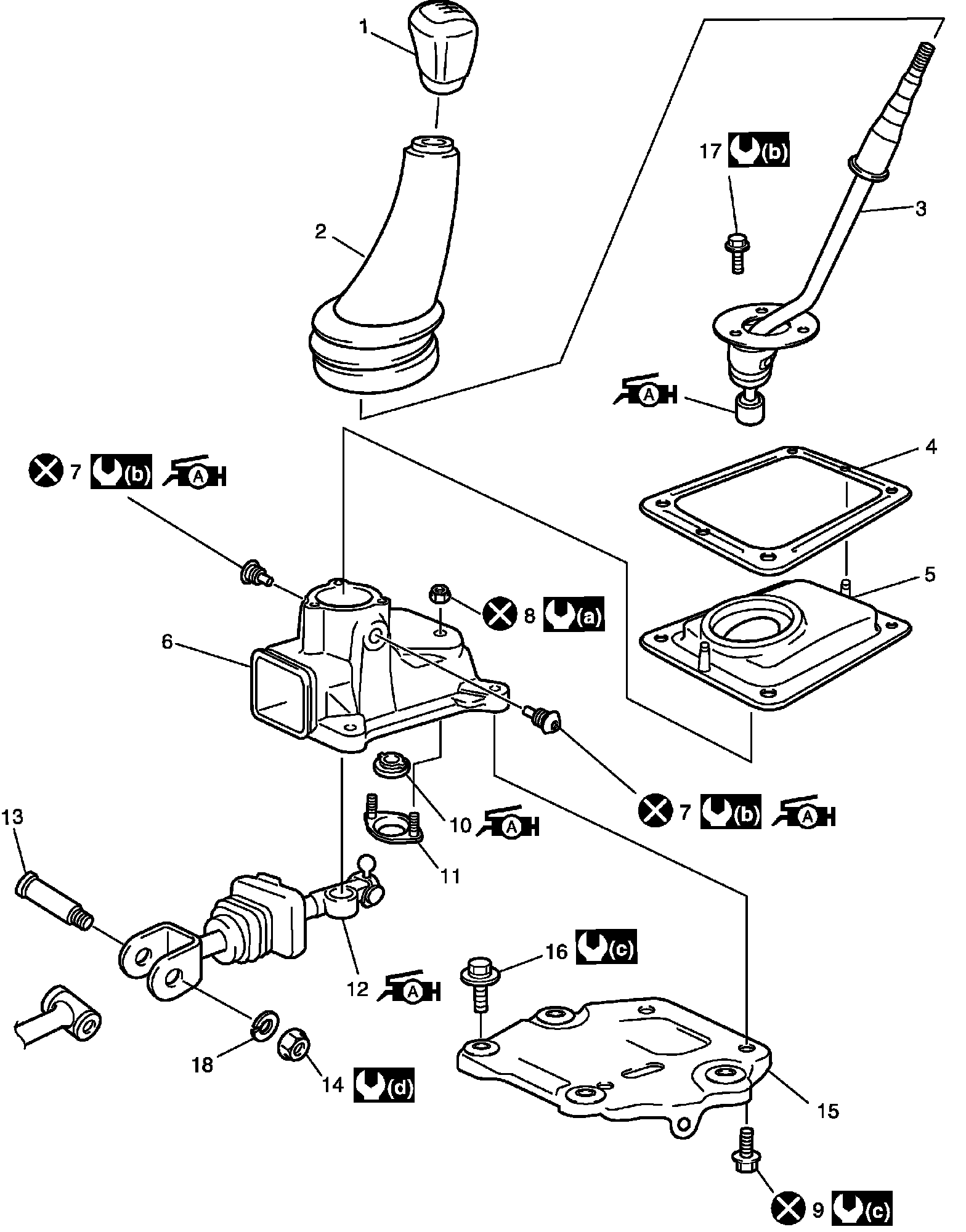

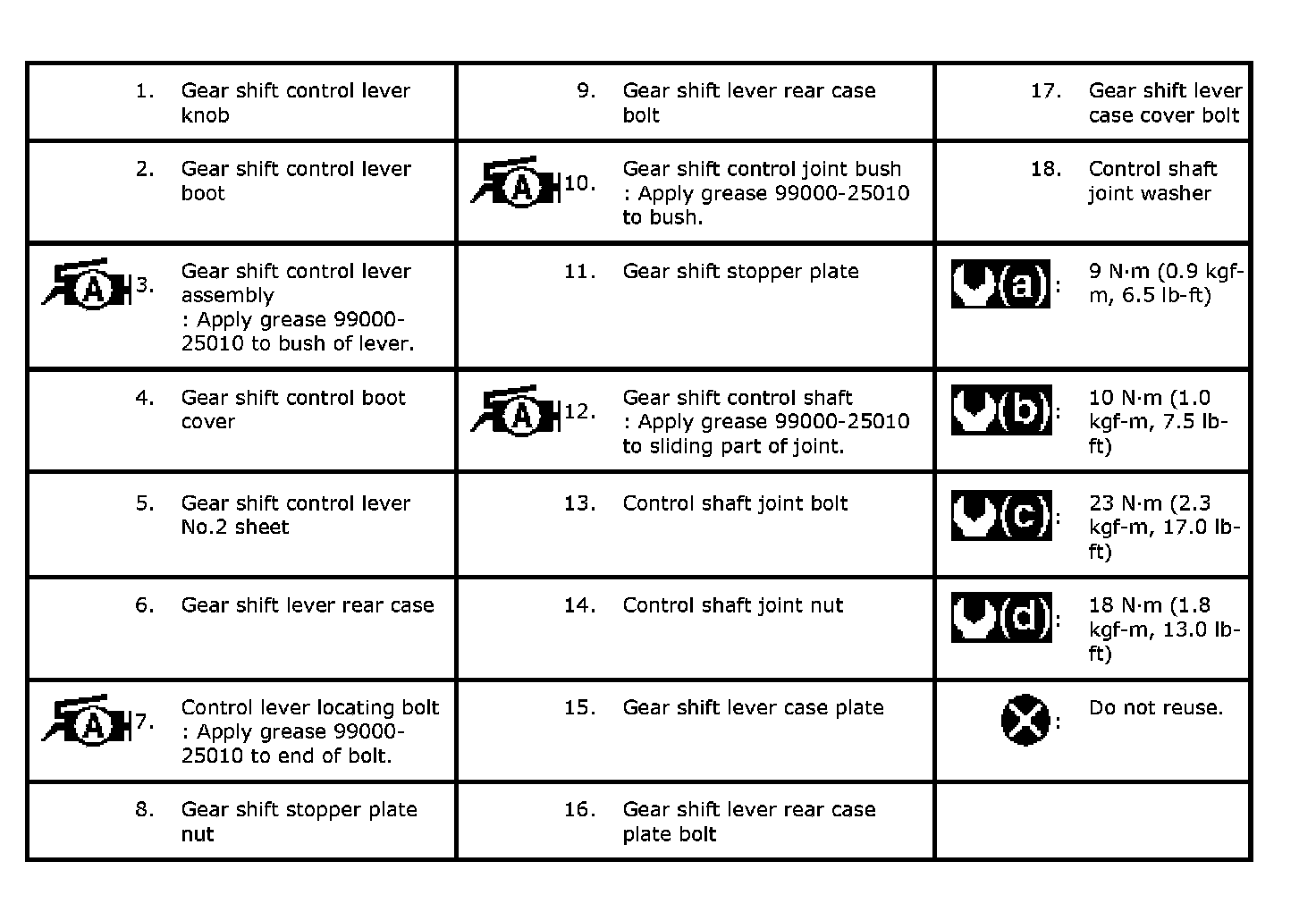

Gear Shift Control Lever Rear Case Assembly Components
Gear Shift Control Lever Rear Case Assembly Components
