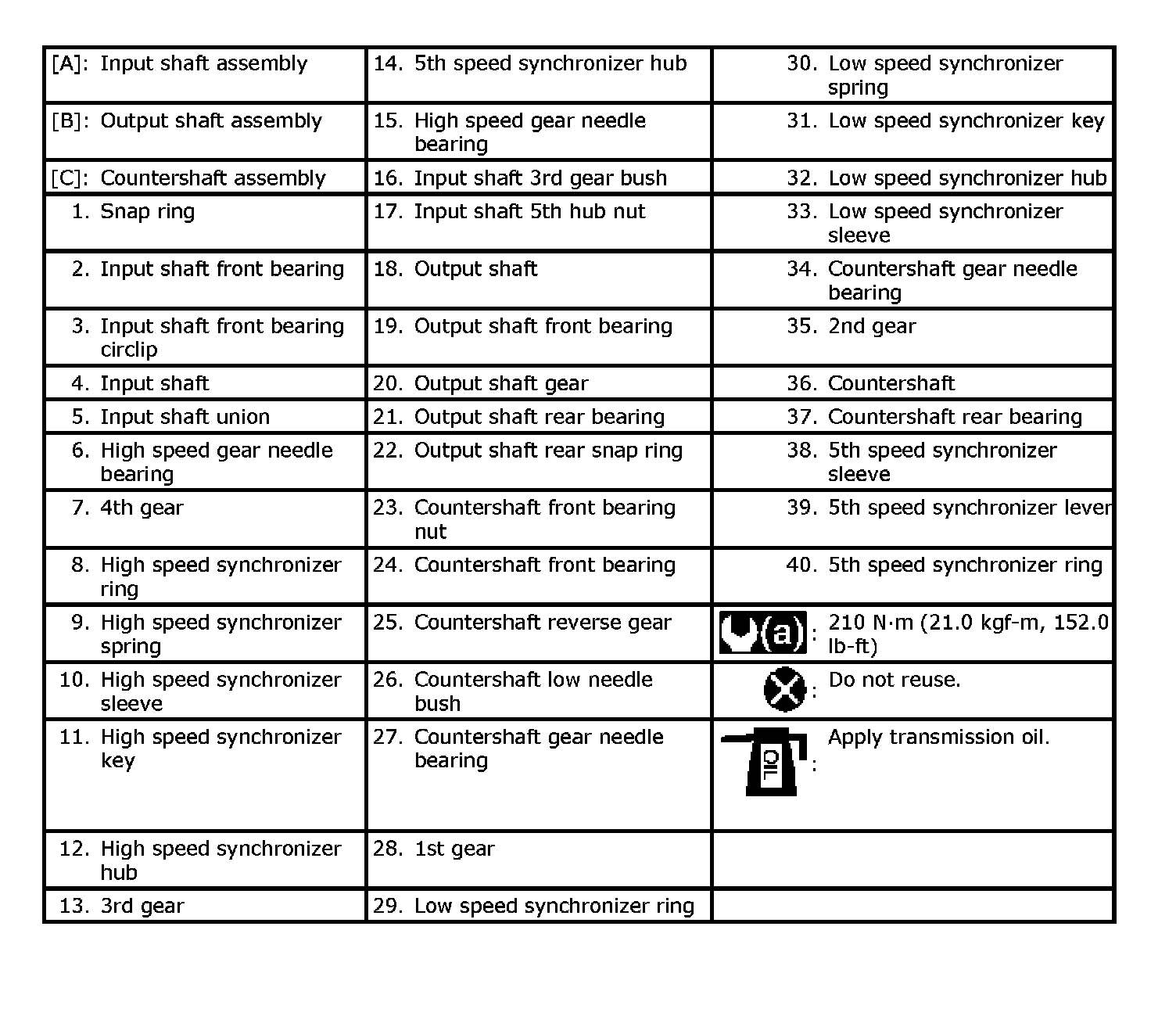

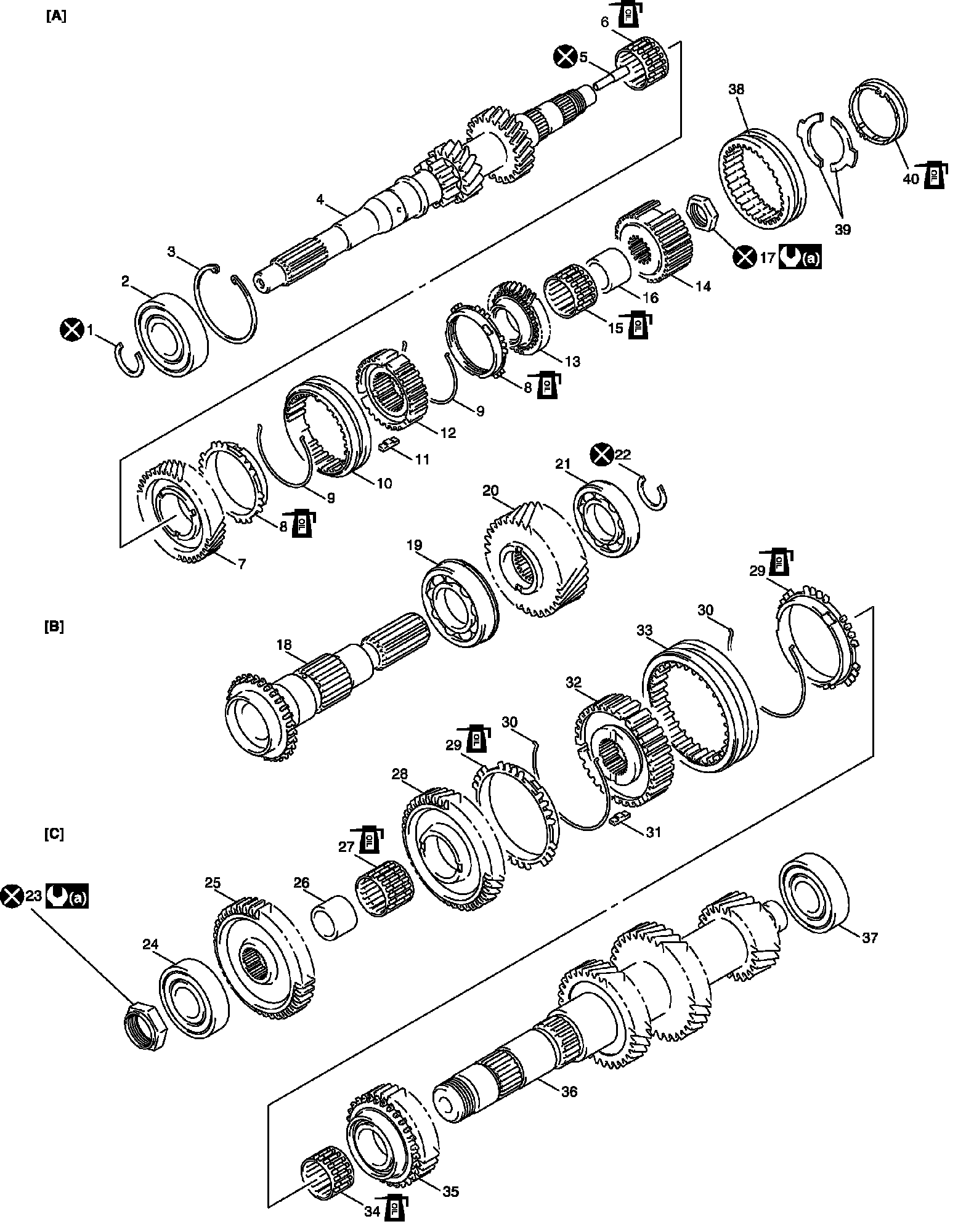

Input Shaft Assembly, Output Shaft Assembly and Countershaft Assembly Components
Input Shaft Assembly, Output Shaft Assembly and Countershaft Assembly Components
