Control Module HVAC: Service and Repair
HVAC Control Module Removal and InstallationRemoval
1. Disconnect negative (-) cable at battery.
2. Remove center garnish with audio unit (if equipped) and HVAC control module referring to Audio Unit Removal and Installation.

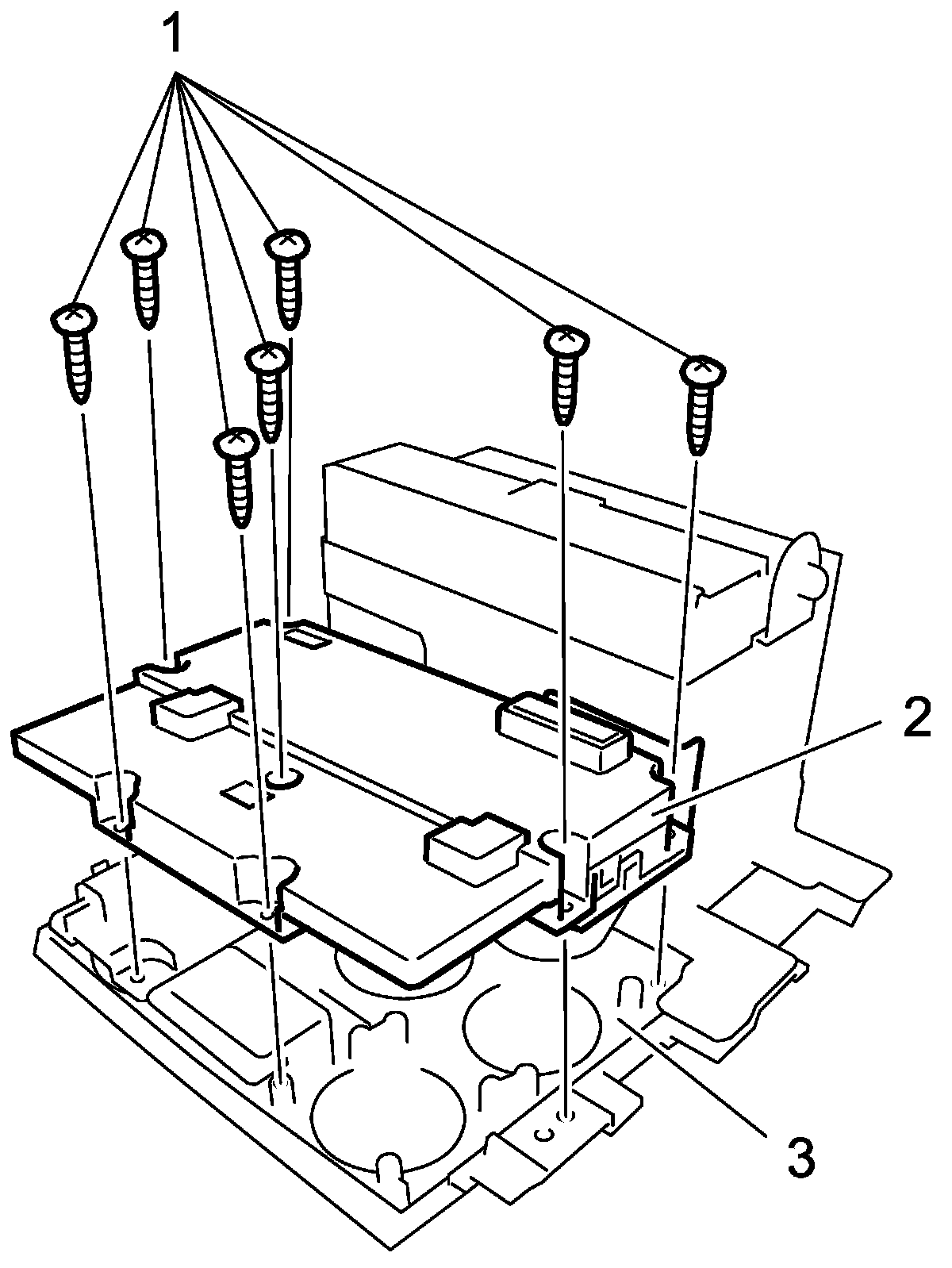

3. Remove HVAC control module mounting screws (1) and then, remove HVAC control module (2) from center garnish (3).
Installation
Reverse removal procedure.
