Fuel Level Sensor: Testing and Inspection

Fuel Level Sensor Inspection

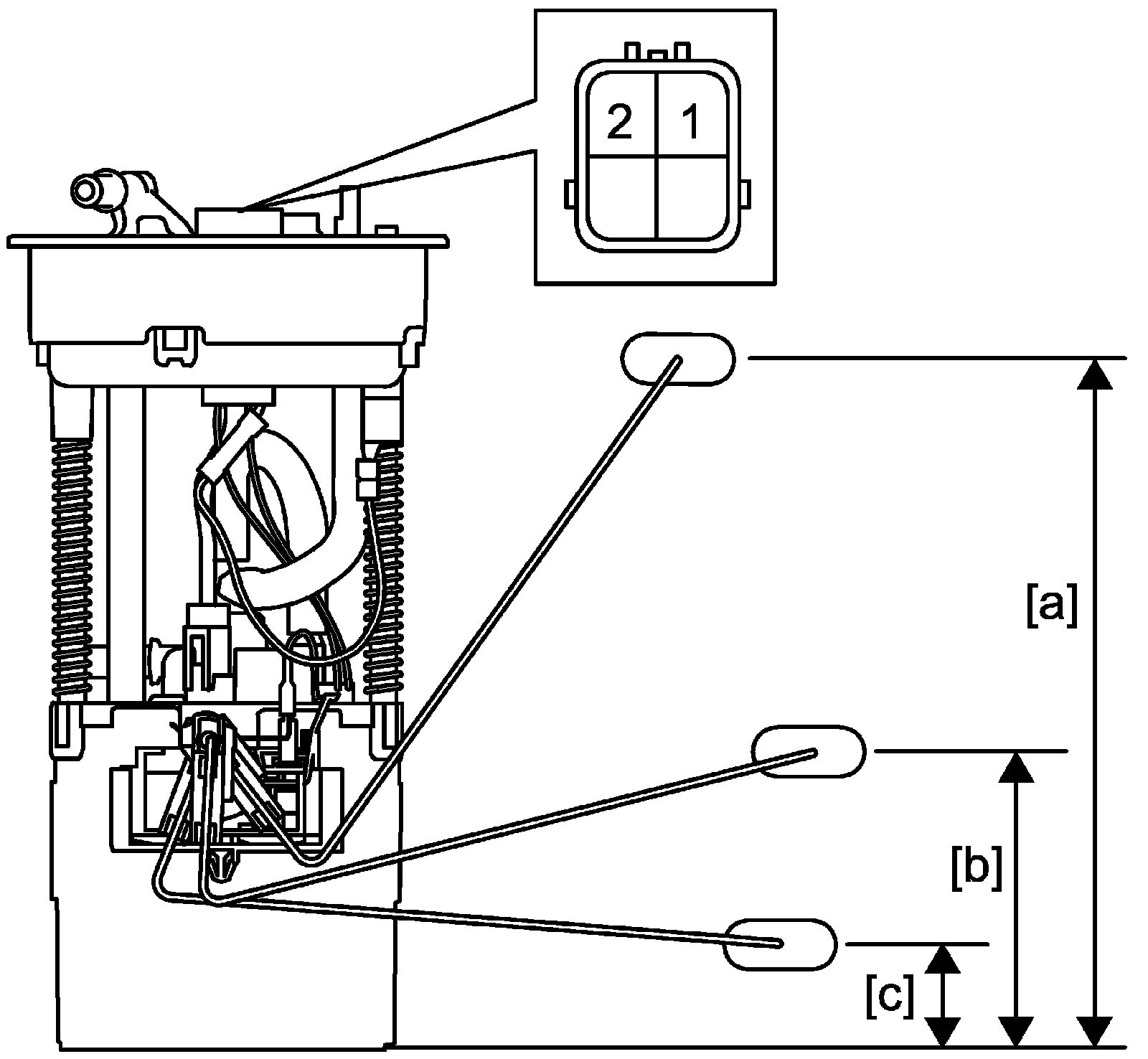

Main Fuel Level Sensor

Check resistance between terminals (1) and (2) at each float position [a], [b] and [c].
If measured resistance is out of specification, replace main fuel level sensor.

Main fuel level sensor resistance

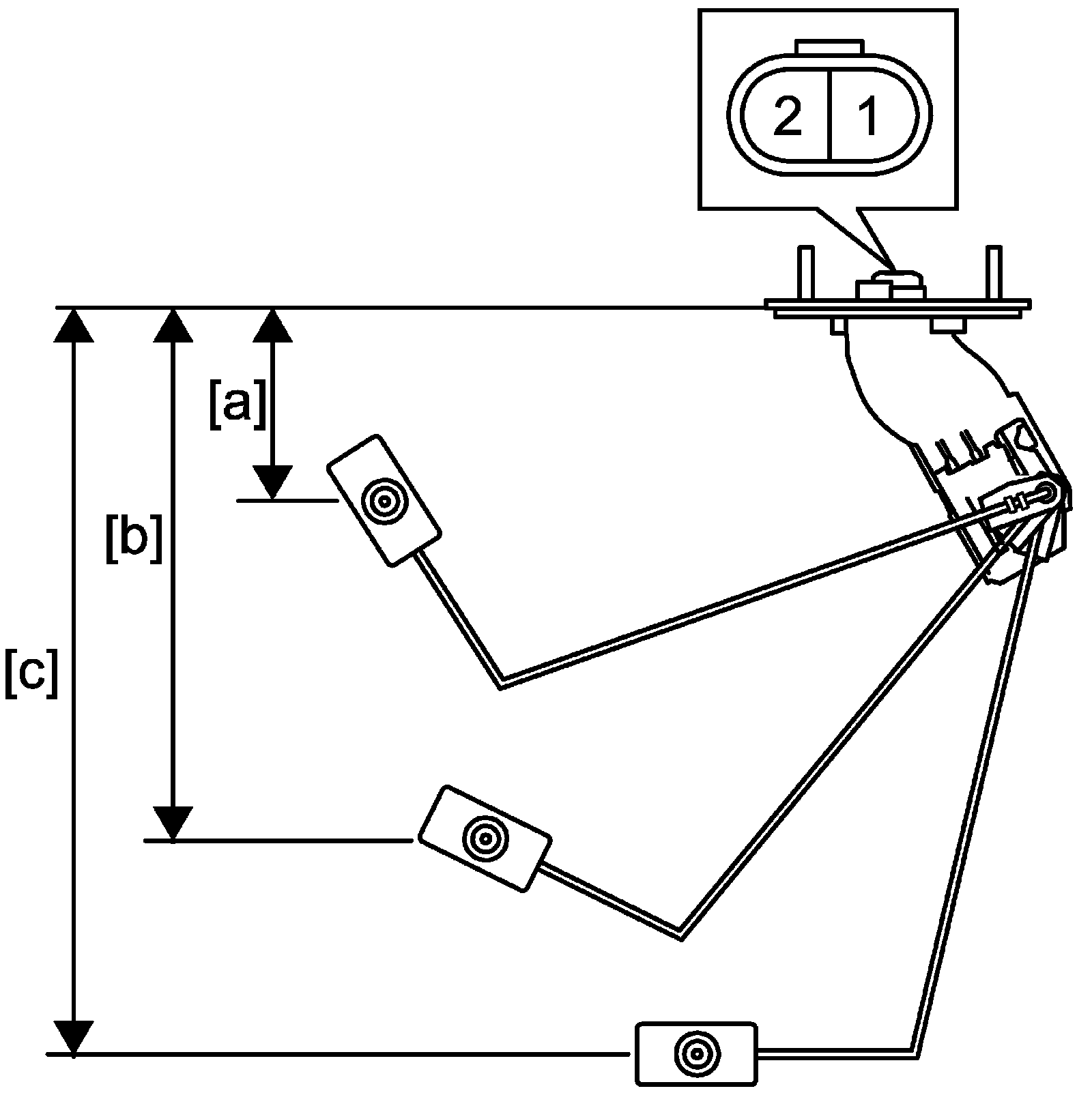

Sub Fuel Level Sensor

Check resistance between terminals (1) and (2) at each float position [a], [b] and [c].
If measured resistance is out of specification, replace sub fuel level sensor.

Sub fuel level sensor resistance
