System Specifications

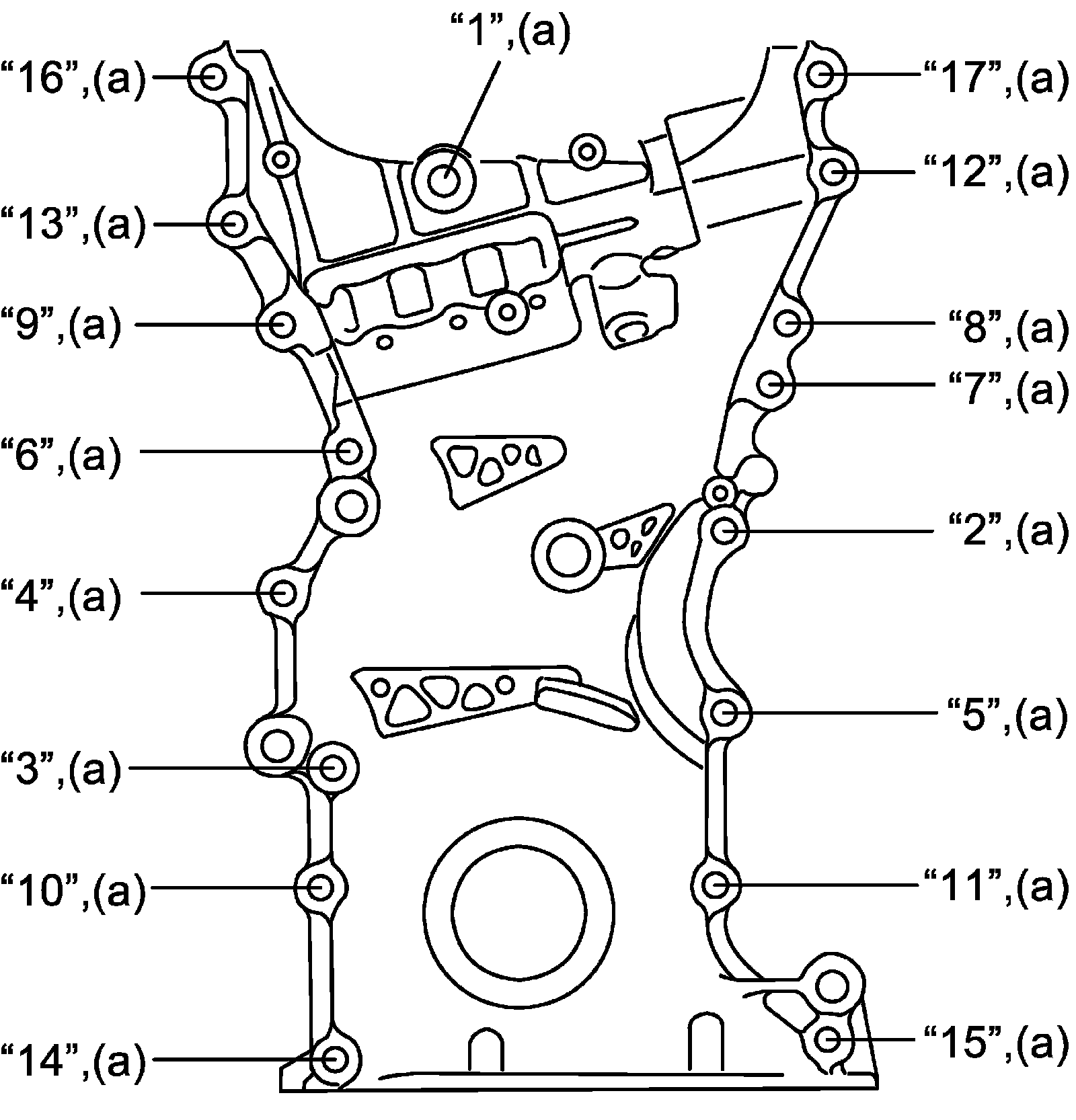

Timing chain cover bolt 25 N-m (2.5 kgf-m, 18.5 lbf-ft)

Crankshaft pulley bolt 150 N-m (15.3 kgf-m, 111.0 lbf-ft)

Timing chain tensioner bolt 25 N-m (2.5 kgf-m, 18.5 lbf-ft)
Timing chain tensioner adjuster bolt 11 N-m (1.1 kgf-m, 8.5 lbf-ft)

For fastener with * (asterisk) below, be sure to tighten it according to specified procedure in "Repair Instructions".
