System Specifications

Timing Chain Tensioner No.1 bolt 23 N-m (2.3 kgf-m, 17.0 lbf-ft)
Timing chain tensioner adjuster No.1 bolt 23 Nm (2.3 kg-m, 17.0 lbf-ft)
Timing chain tensioner adjuster No.2 bolt 23 Nm (2.3 kg-m, 17.0 lbf-ft)
Timing chain tensioner No.2 bolt 23 Nm (2.3 kg-m, 17.0 lbf-ft)
Timing chain tensioner adjuster No.3 bolt 23 Nm (2.3 kg-m, 17.0 lbf-ft)

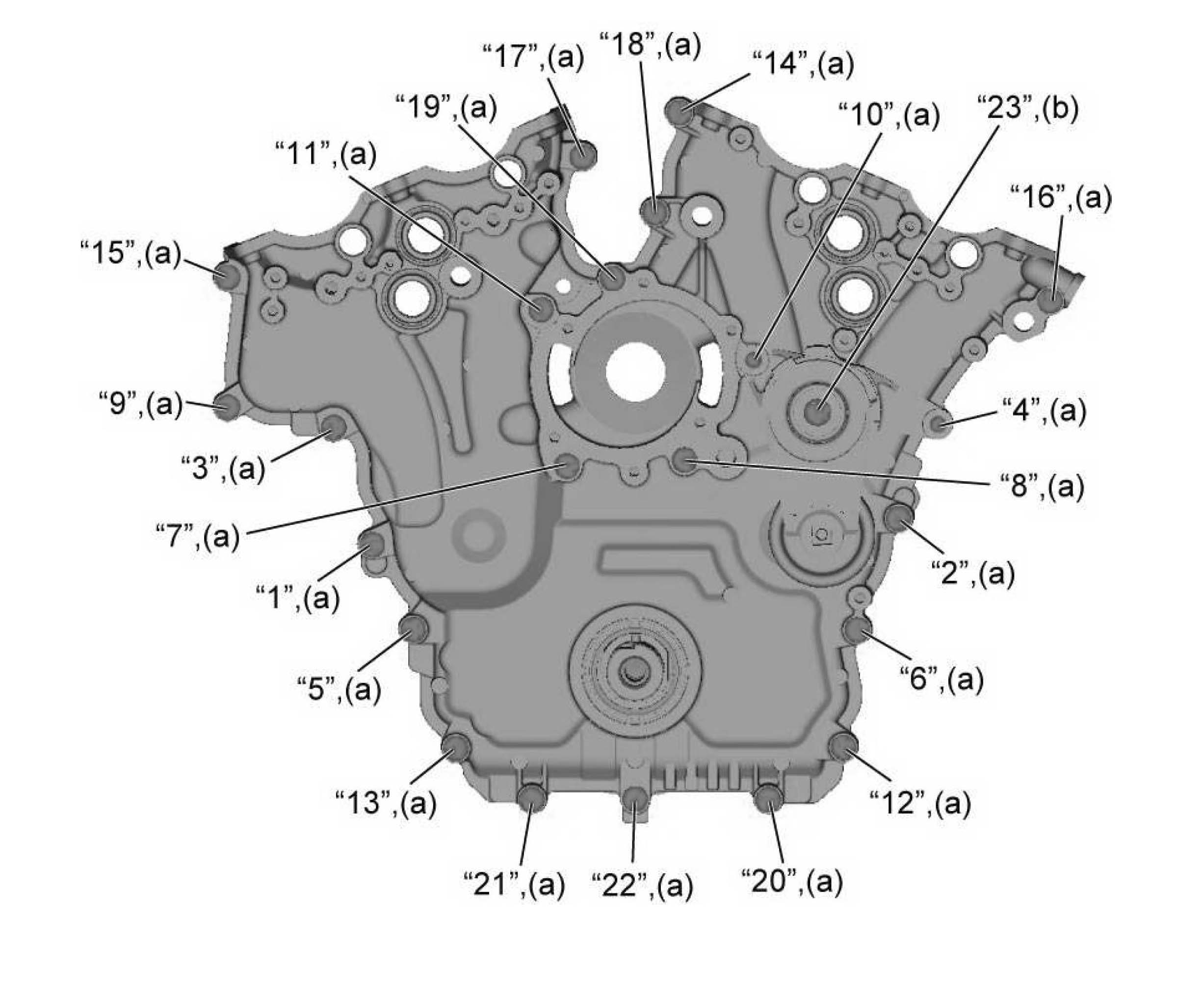

Timing chain cover bolt * 20 N-m + 60° (2.0 kgf-m +60° , 15 lbf-ft -> + 60°

Crankshaft pulley bolt 120 N-m -> 0 N-m -> 100 N-m -> + 150 ° (12.2 kgf-m -> 10.2 kgf-m -> + 150°, 88.5 lbf-ft -> 0lbf-ft -> 74.0 lbf-ft -> + 150°

For fastener with * (asterisk) below, be sure to tighten it according to specified procedure in "Repair Instructions".
