Input / Output Signal Table of 4WD Control Module

Input / Output Signal Table of 4WD Control Module

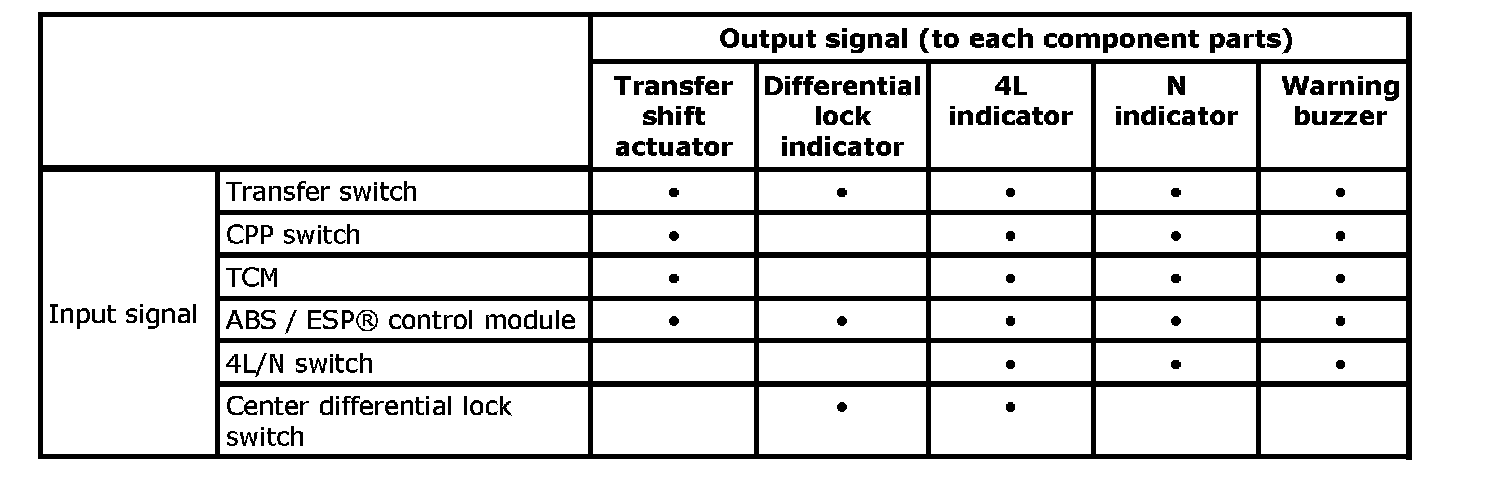

4WD control module outputs the following signals to actuators, indicators, warning buzzer, according to the transfer switch operation.
