Terminal Arrangement of ESP® Control Module Connector (Viewed from Terminal Side)

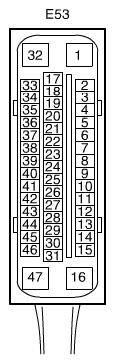

Fig 1: Identifying ESP® Control Module Connector Terminals
G06498500Courtesy of SUZUKI OF AMERICA CORP.
TERMINAL REFERENCE CHART

Terminal Circuit Terminal Circuit
E53-1 Solenoid valve power supply driver (transistor) E53-25 -
E53-2 Right-front wheel speed sensor (-) E53-26 -
E53-3 Right-front wheel speed sensor (+) E53-27 -
E53-4 Brake light relay drive circuit E53-28 -
E53-5 Left-rear wheel speed sensor (+) E53-29 Ground for yaw rate/G sensor assembly
E53-6 Left-rear wheel speed sensor (-) E53-30 -
E53-7 - E53-31 -
E53-8 Hill descent control switch signal E53-32 Pump motor driver (transistor)
E53-9 - E53-33 -
E53-10 - E53-34 -
E53-11 Right-rear wheel speed sensor (-) E53-35 Brake light relay power supply circuit
E53-12 Right-rear wheel speed sensor (+) E53-36 -
E53-13 - E53-37 -
E53-14 Left-front wheel speed sensor (+) E53-38 -
E53-15 Left-front wheel speed sensor (-) E53-39 Ignition switch
E53-16 Ground E53-40 -
E53-17 - E53-41 -
E53-18 CAN communication line (high) for yaw rate/G sensor assembly E53-42 CAN communication line (high)
E53-19 CAN communication line (low) for yaw rate/G sensor assembly E53-43 CAN communication line (high) for ECM
E53-20 - E53-44 CAN communication line (low) for ECM
E53-21 - E53-45 CAN communication line (low)
E53-22 Power source for yaw rate/G sensor assembly E53-46 -
E53-23 - E53-47 Ground
E53-24 ESP® OFF switch signal
