Control Module HVAC: Service and Repair

HVAC Control Module Removal and Installation

Removal
1. Remove audio unit from instrument panel referring to Audio Unit Removal and Installation (If Equipped).

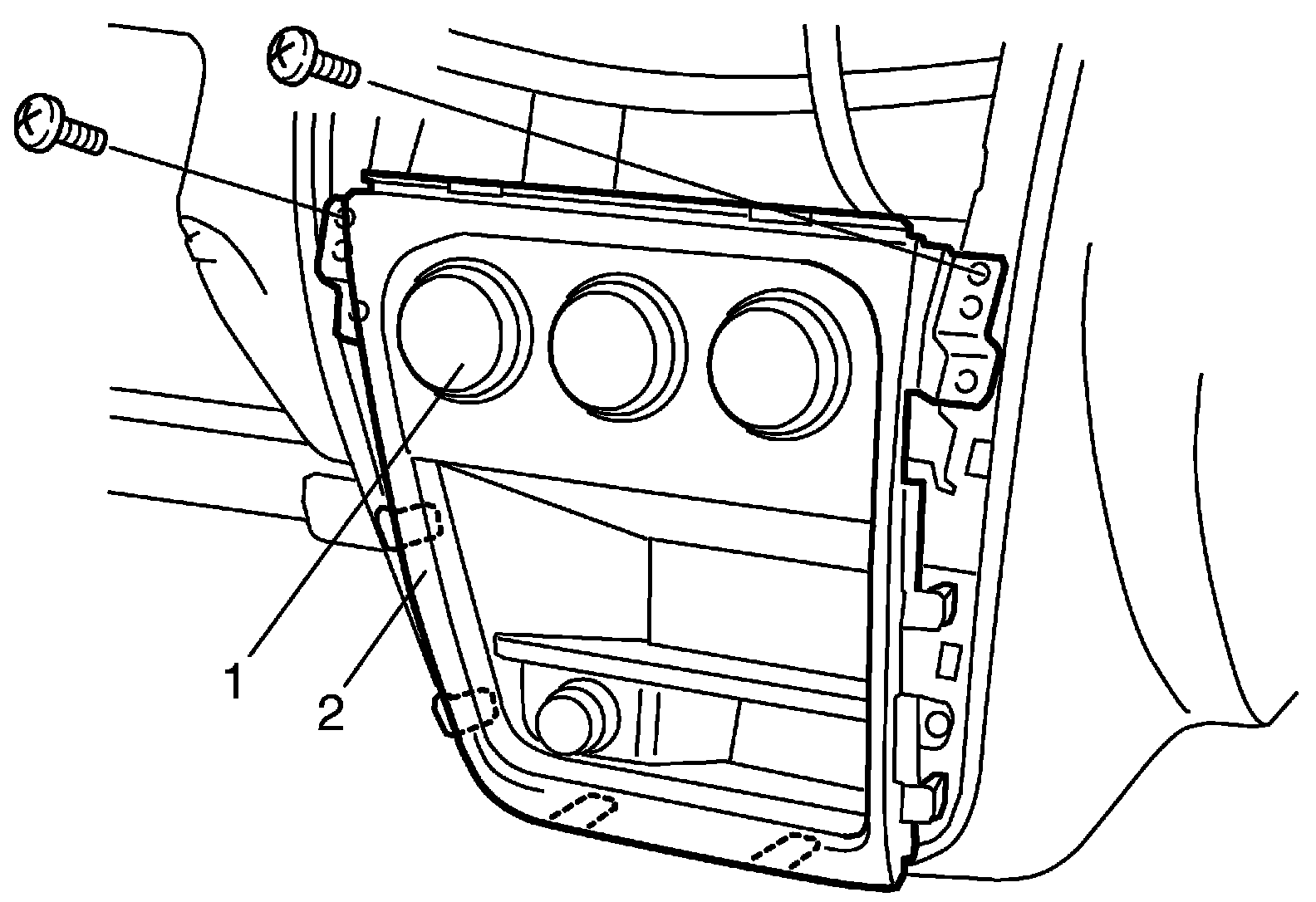

2. Remove HVAC control module (1) with its garnish (2) from instrument panel.




3. Remove HVAC control module from garnish.

Installation
Reverse removal procedure.
