Knock Sensor: Service and Repair
Knock Sensor Removal and InstallationRemoval
1. Disconnect negative cable at battery.
2. Hoist vehicle.
3. Remove right side drive shaft referring to Front Drive Shaft Assembly Removal and Installation:Front.

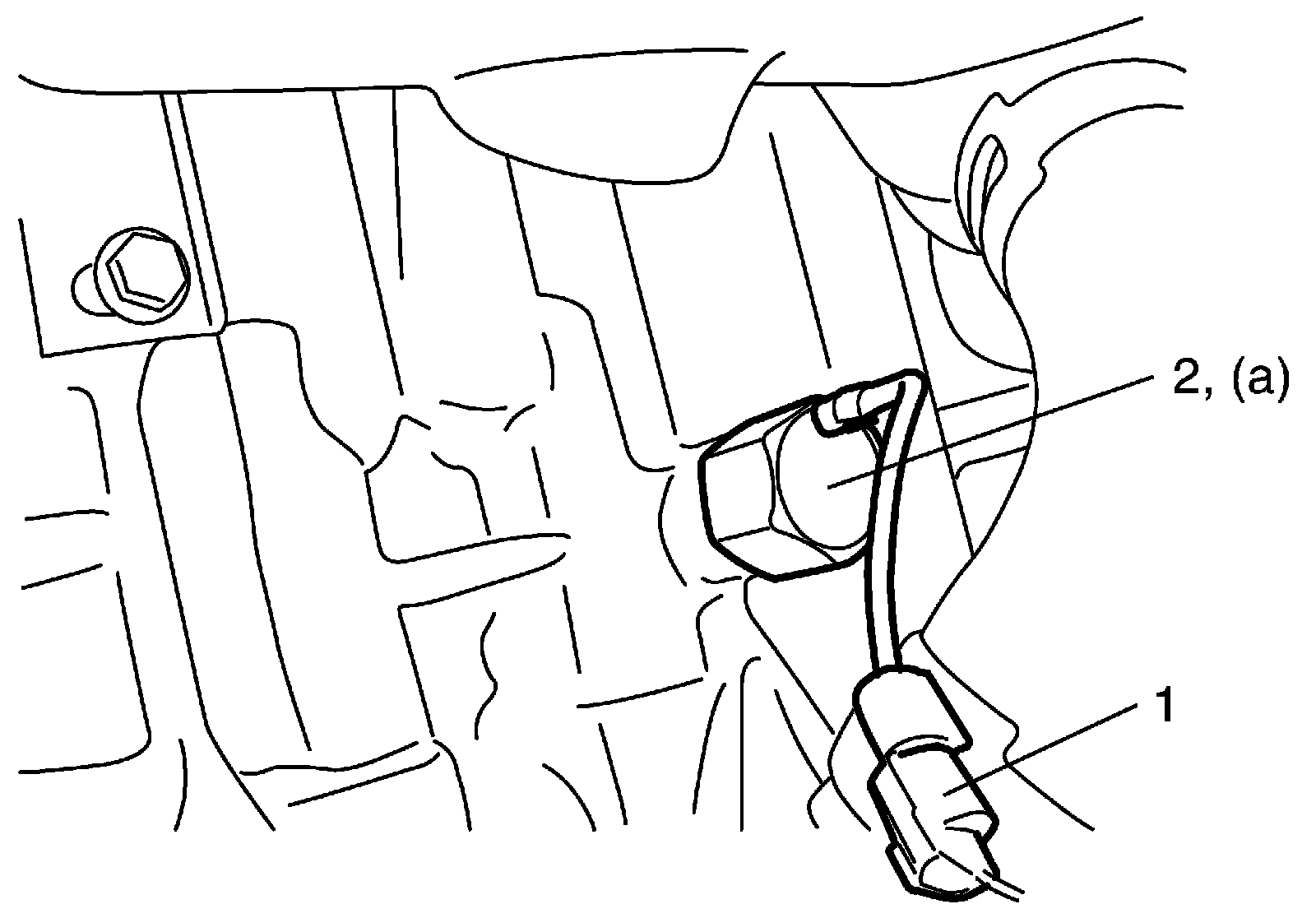

4. Disconnect knock sensor connector (1).
5. Remove knock sensor (2) from cylinder block.
Installation
Reverse removal procedure for installation.
Tightening torque
Knock sensor a: 22 Nm (2.2 kg.m, 16.0 ft. lbs.)
