System Specifications

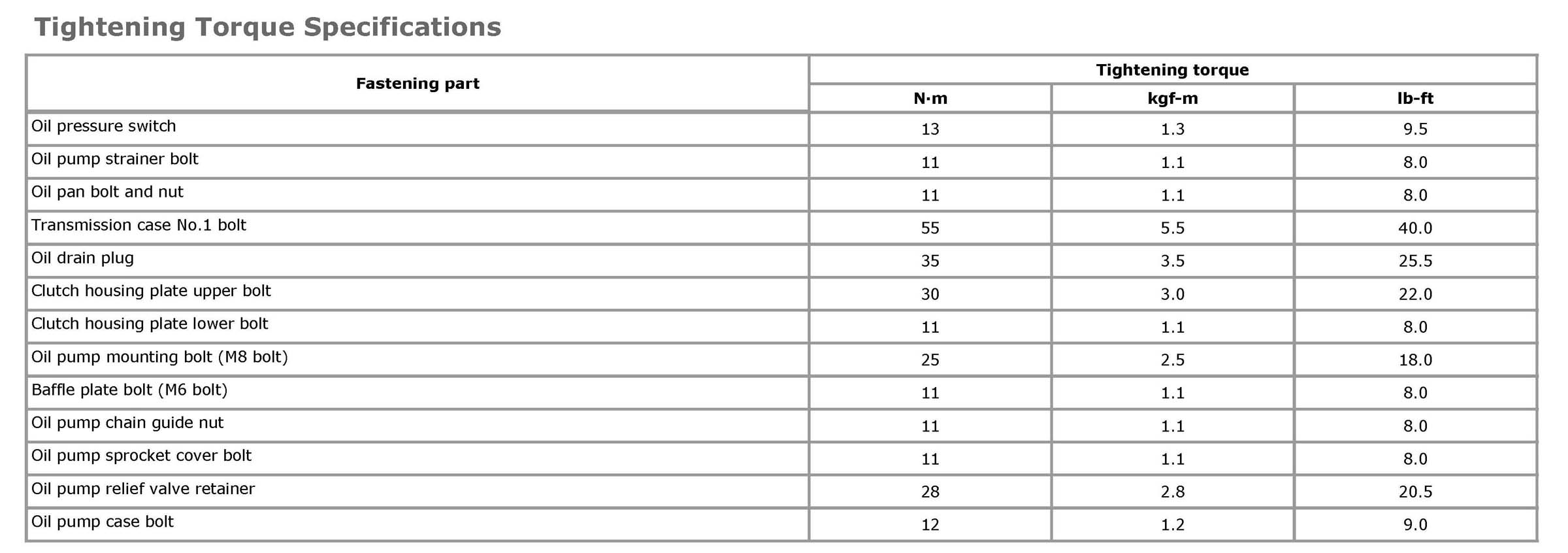

Tightening Torque Specifications





NOTE: The specified tightening torque is also described in the following.
Oil Pan and Oil Pump Strainer Components
Oil Pump Components

Reference:
For the tightening torque of fastener not specified in this section, refer to Fasteners Information.

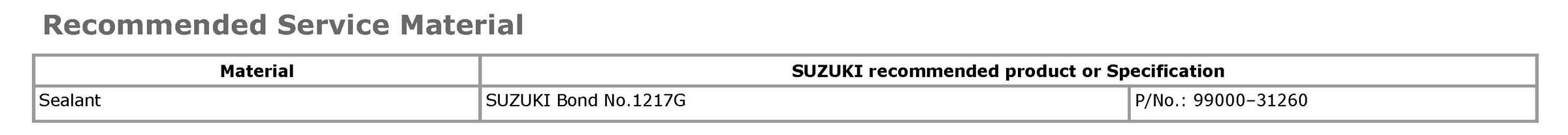

Recommended Service Material





NOTE: Required service material is also described in the following.
Oil Pan and Oil Pump Strainer Components
