Serial Data Link Circuit Check (No Communication to P/S Control Module)
Serial Data Link Circuit Check (No communication to P/S Control Module)

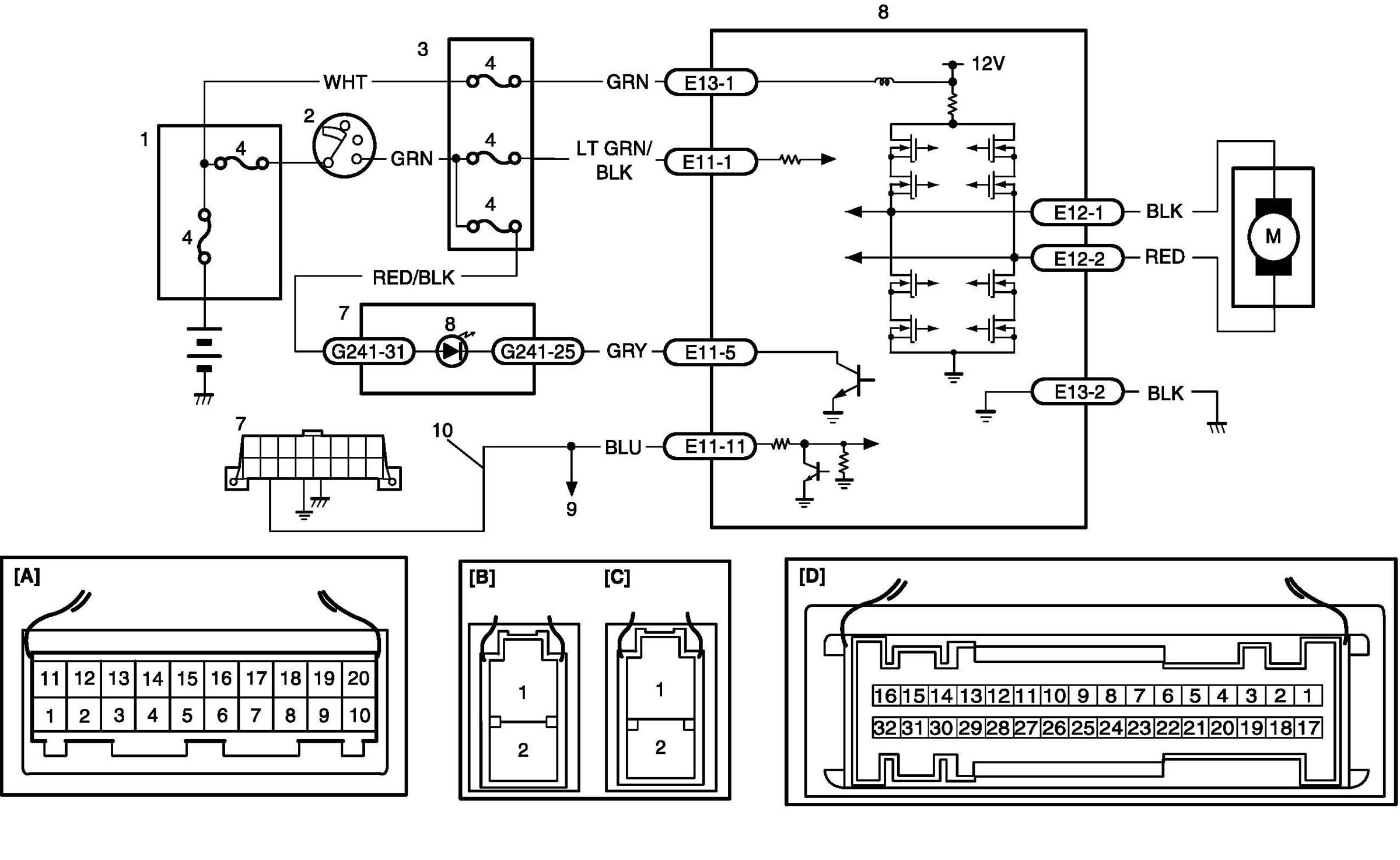

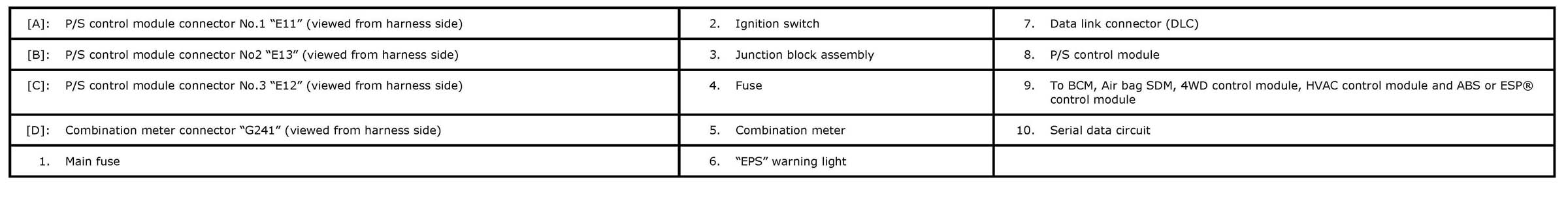

Wiring Diagram

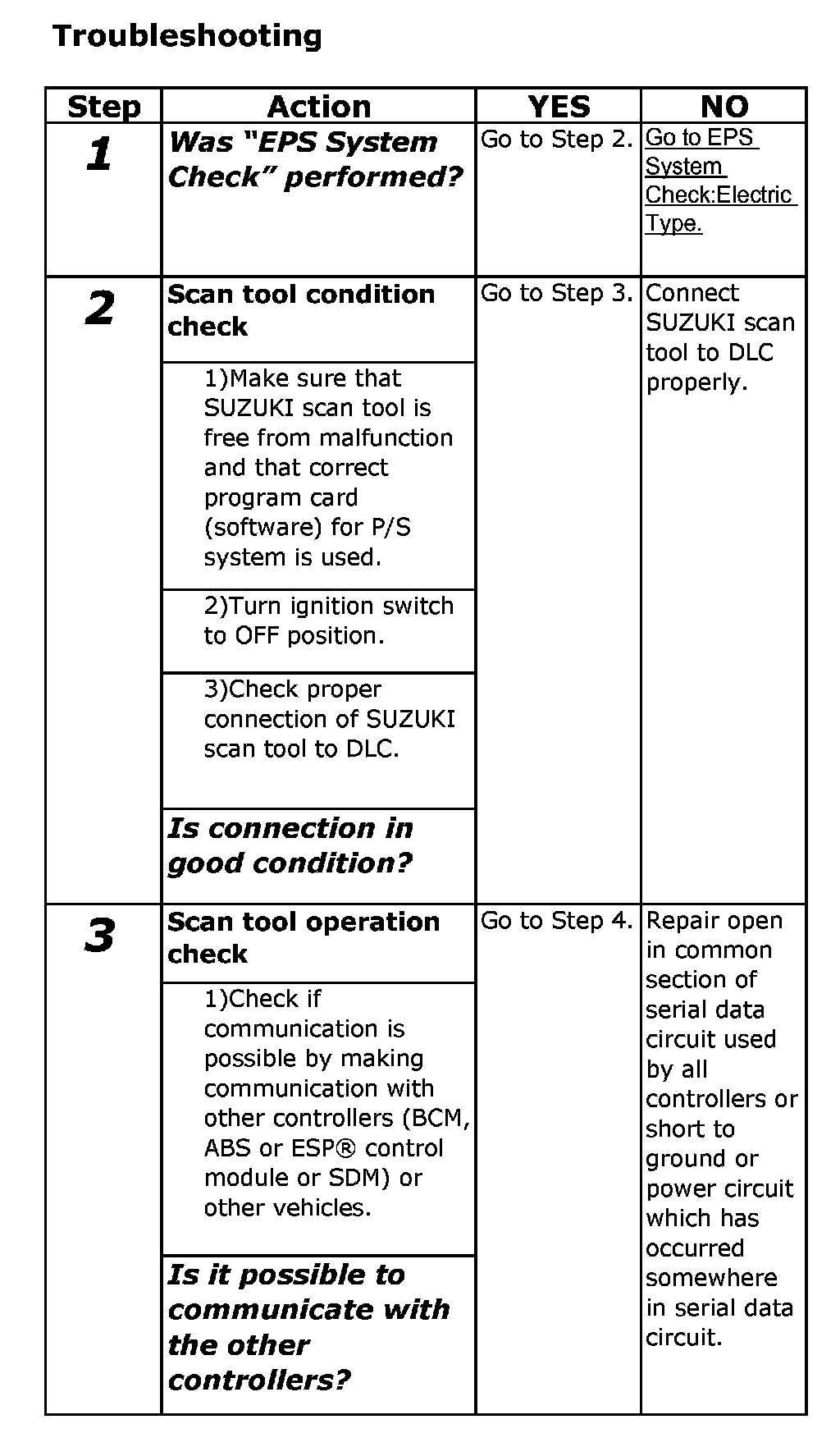

Troubleshooting
Step 1-3:

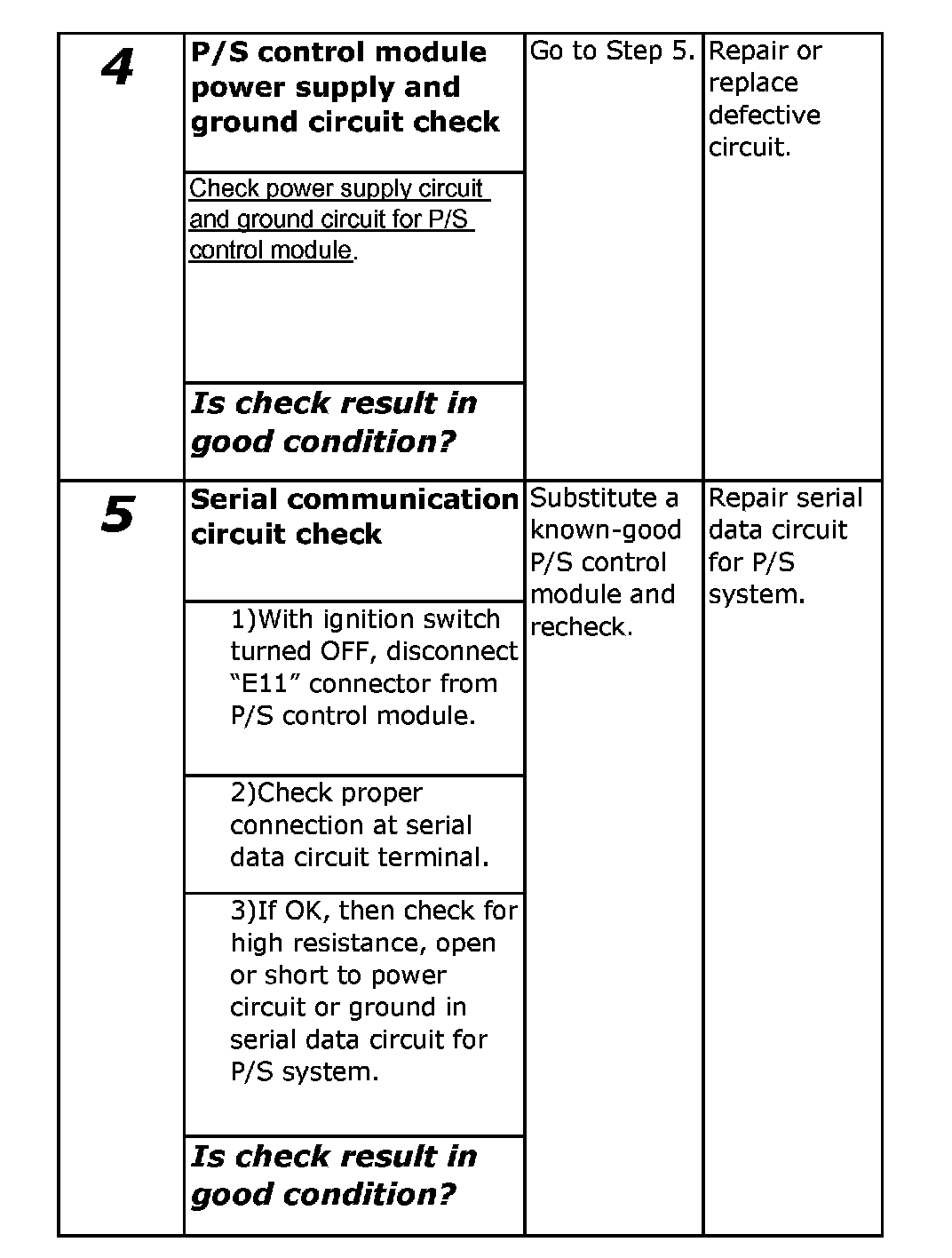

Step 4-5:
