Keyless Start Control Module Transmission Data

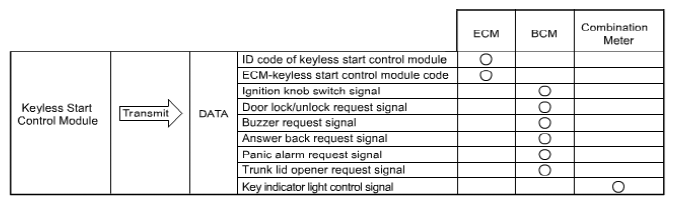

Fig 1: Identifying Keyless Start Control Module Transmission Data
G05472638Courtesy of SUZUKI OF AMERICA CORP.
