ESP® Control Module Transmission Data

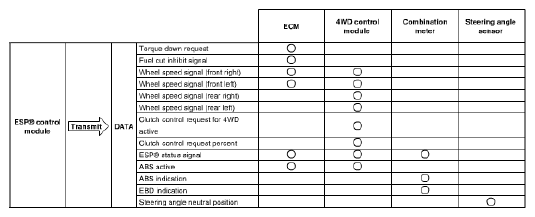

Fig 1: ESP® Control Module Transmission Data Table
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
