HVAC Control Module X3
HVAC Control Module X3HVAC Control Module X3:
Connector Part Information
OEM: 15126710
Service: -
Description: 20-Way F Receptacle 0.64 Unsealed (GY)
Terminal Part Information
Terminal/Tray: 7116-4618-02/14
Core/Insulation Crimp: P/P
Release Tool/Test Probe: J-38125-215/J-35616- 64B (L-BU)

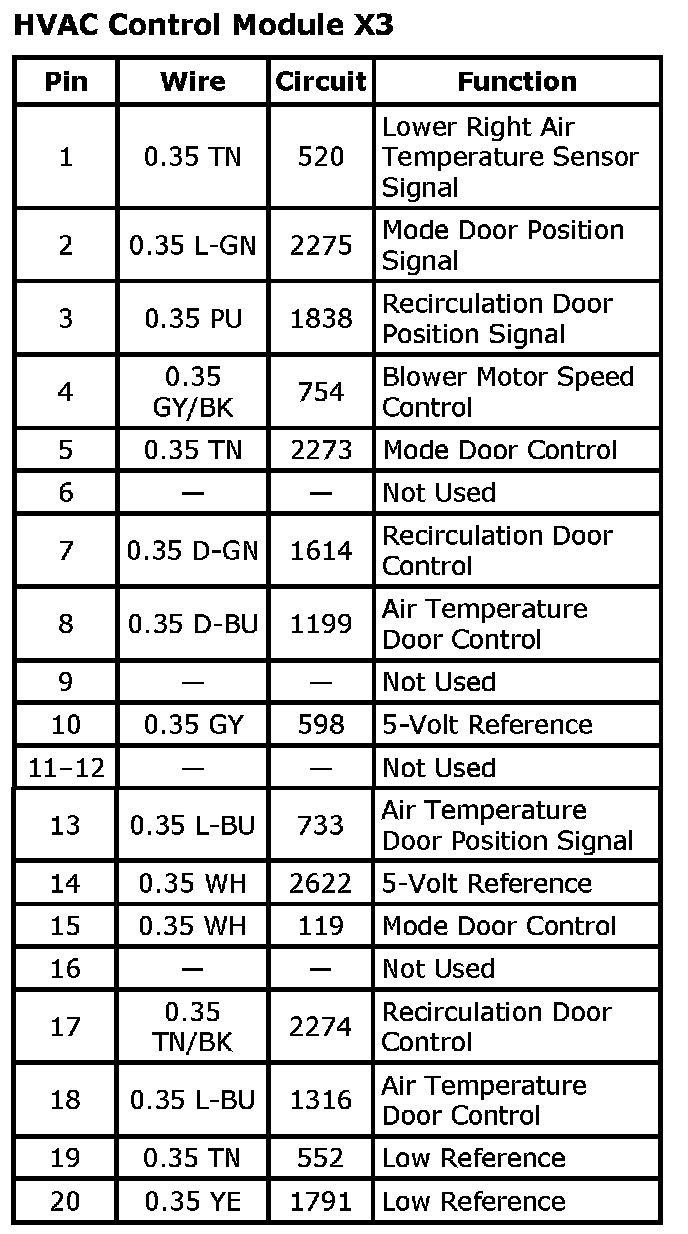

HVAC Control Module X3:
