System Specifications

Primary Tensioner Bolt 23 Nm (17 lb ft)
Secondary Tensioner Bolt 23 Nm (17 lb ft)

Crankshaft Balancer Bolt
First Pass 100 Nm (74 lb ft)
Final Pass 150 Degrees

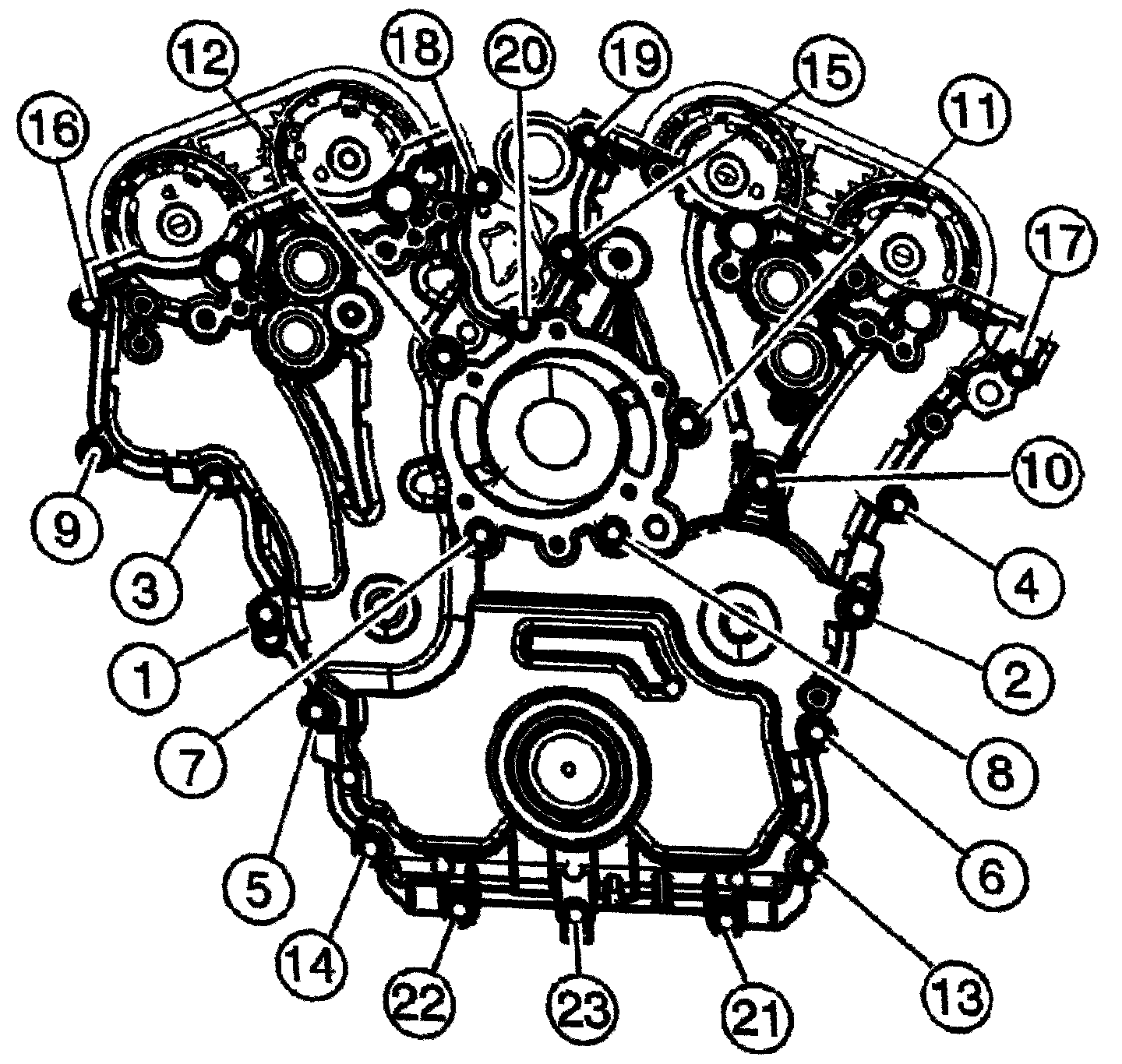

Front Cover Bolts 23 Nm (17 lb ft)
