Instrument Panel Assembly: Exploded View
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

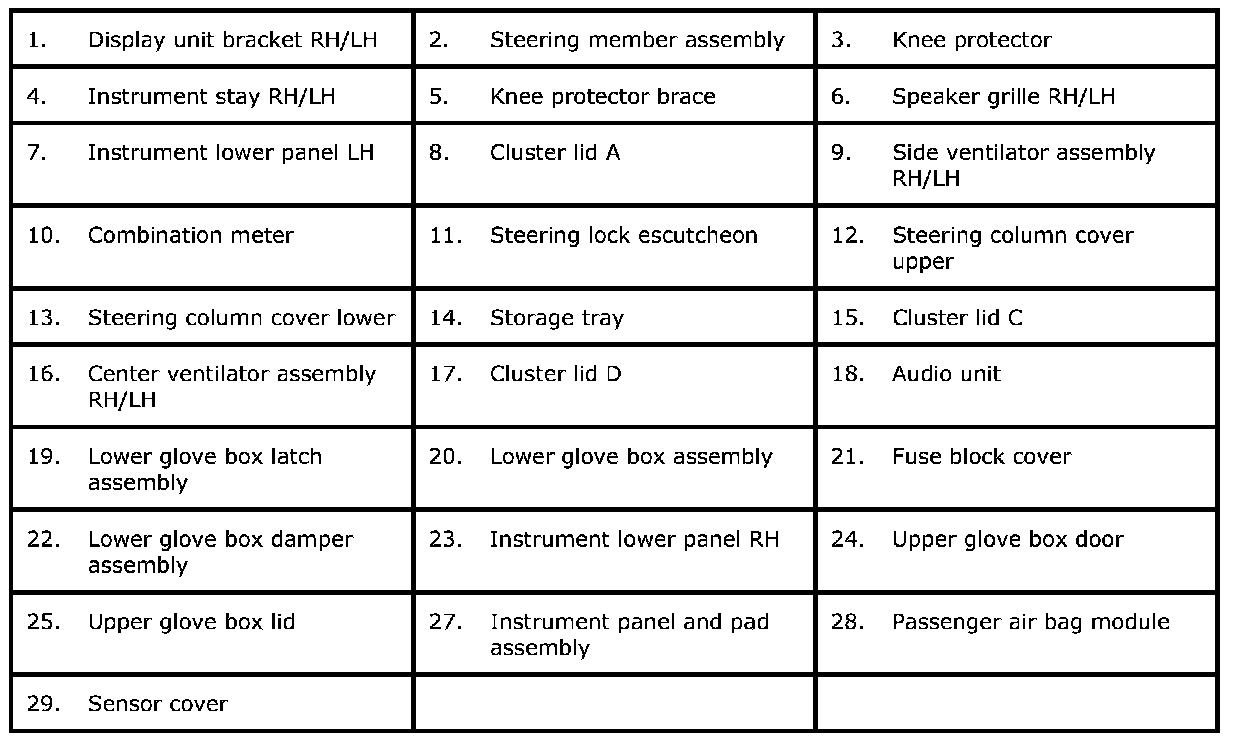

Instrument Panel Assembly: Exploded View

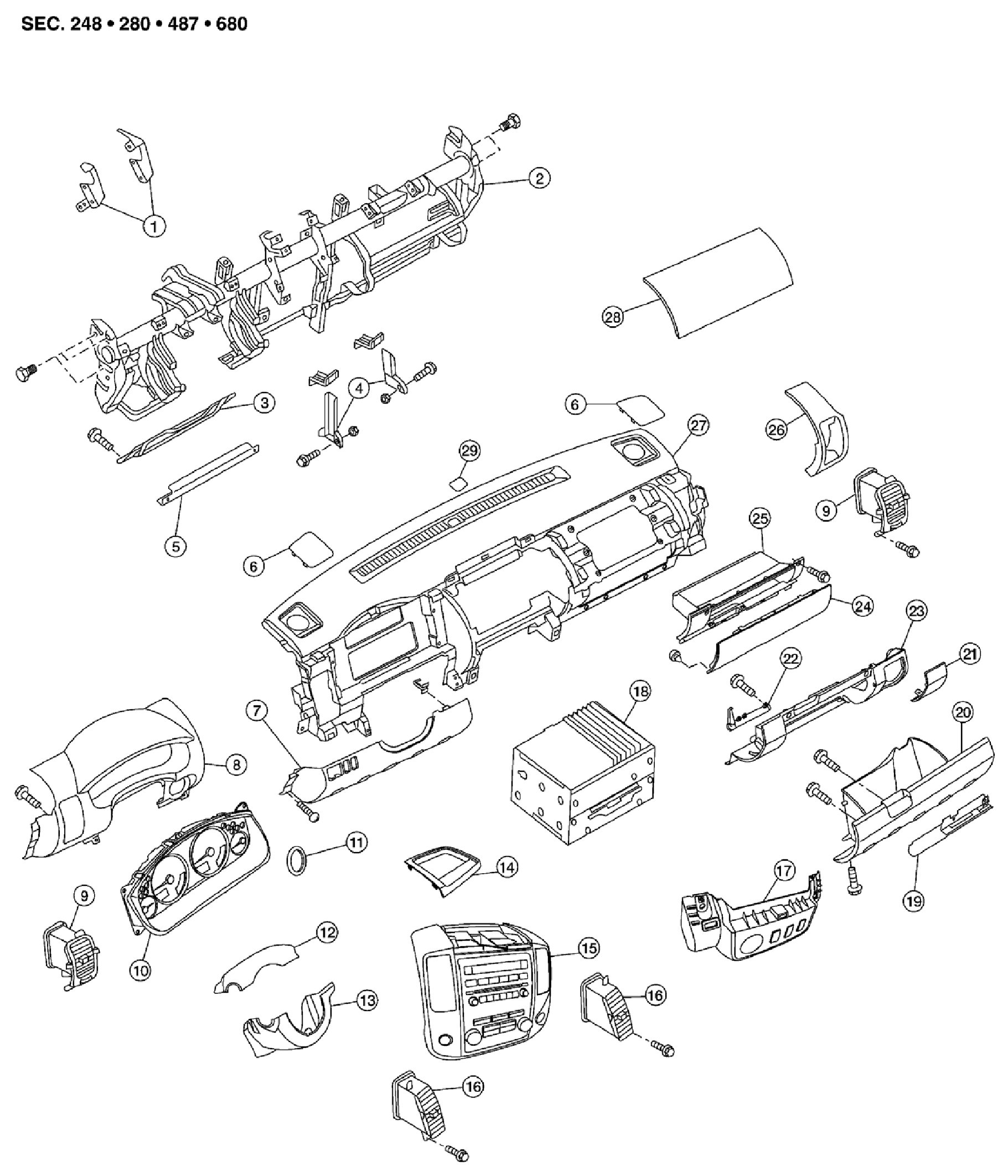

Instrument Panel Assembly: Exploded View
