Parking Brake Control
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

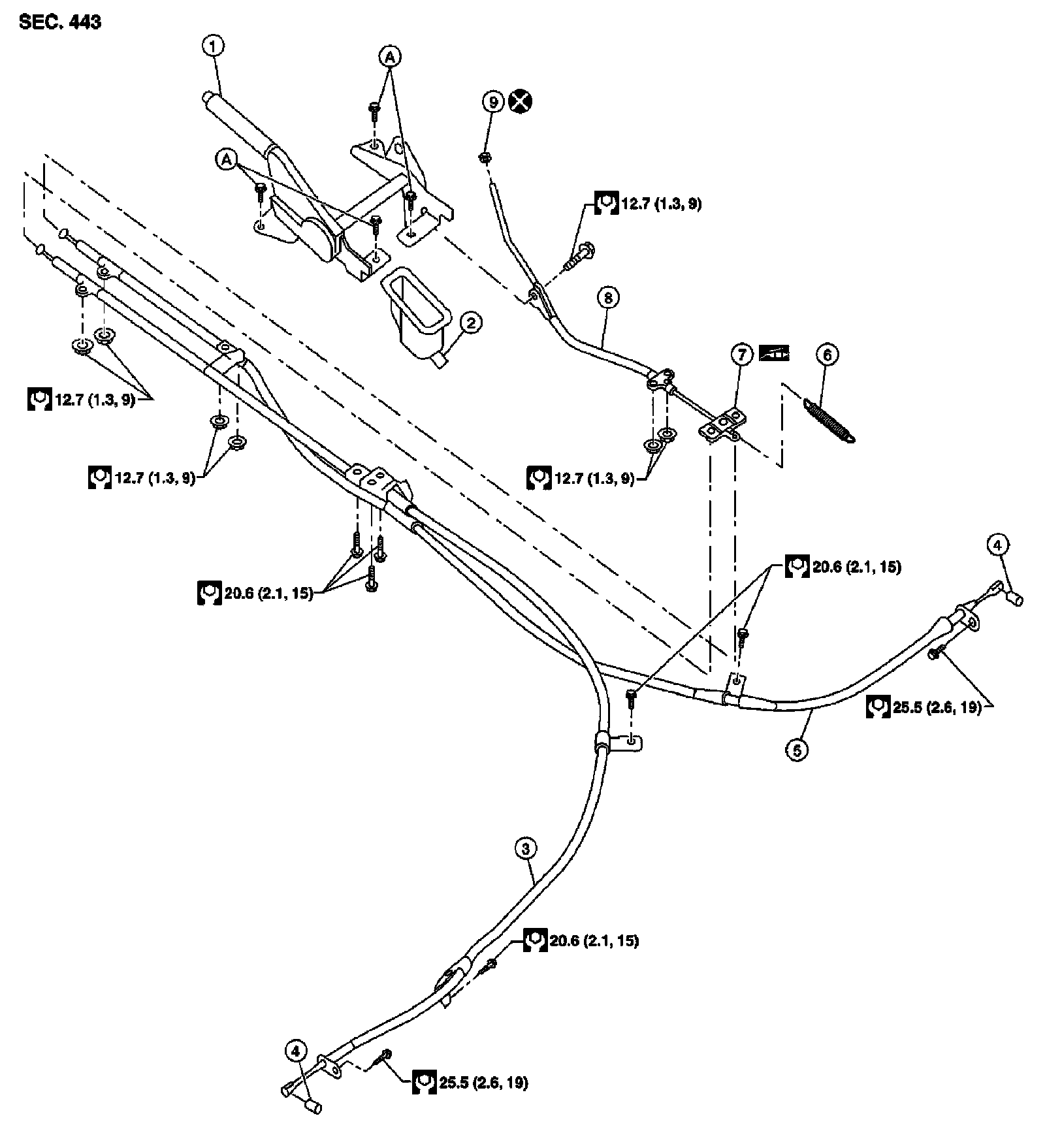

Parking Brake Control
Parking Brake Control
: Exploded View
