Spark Plug
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Spark Plug
Spark Plug

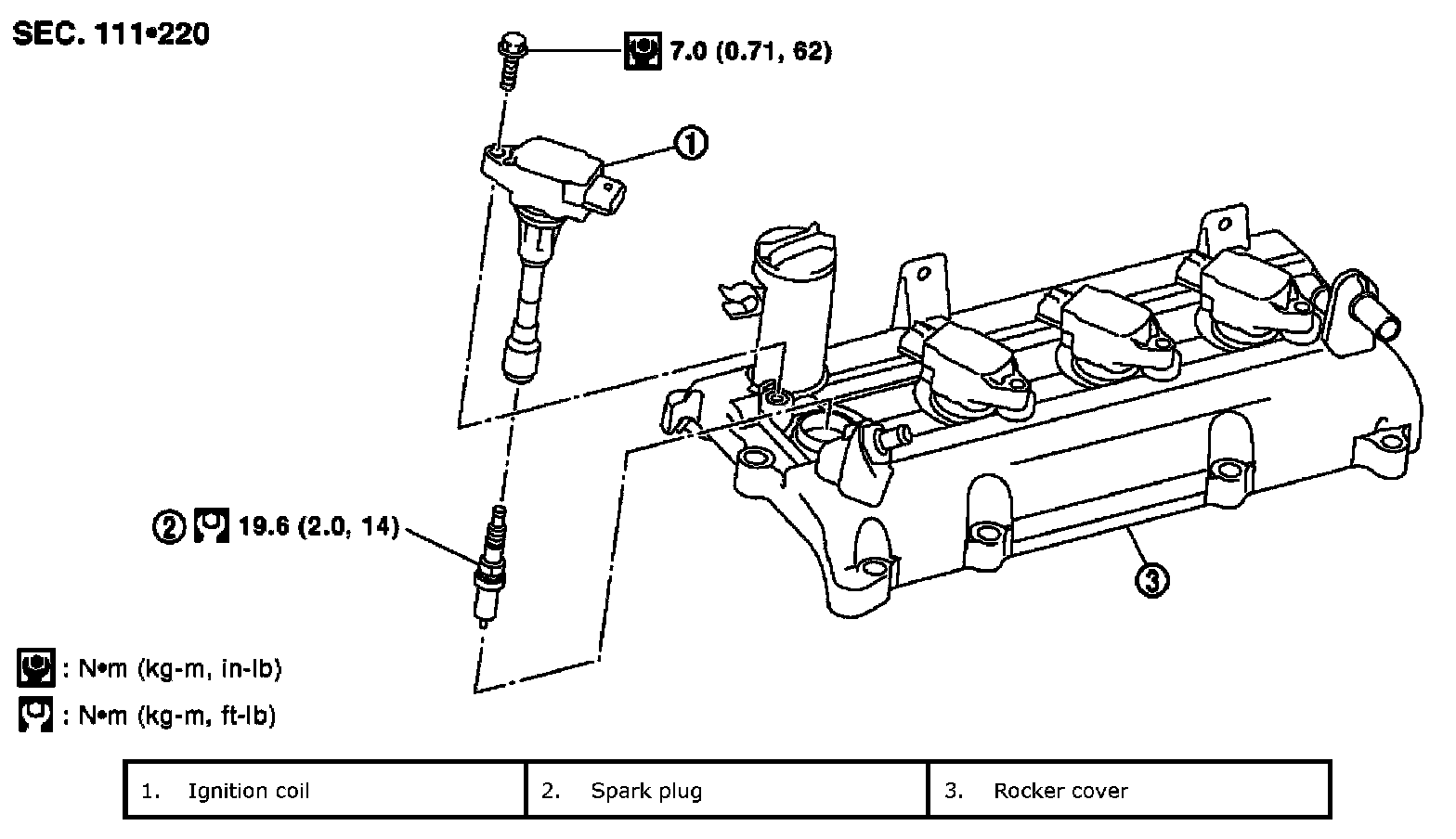

Exploded View [QR25DE]
