Utility Mode

Utility Mode

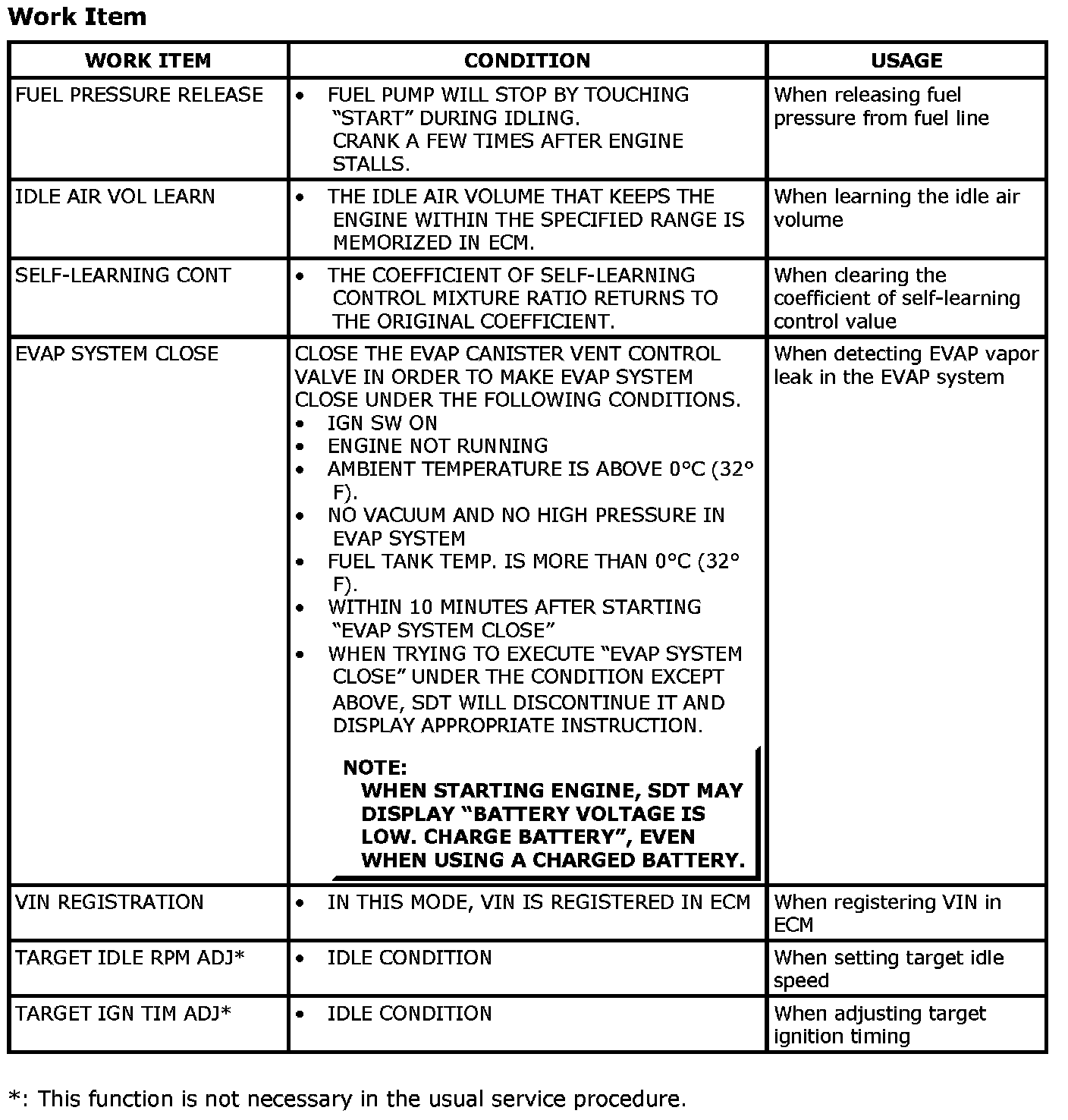

Utility Mode (Readiness Test / DTC Work Support)

Readiness Test Mode

For details, refer to [DTC Index: ECM]. Diagnostic Trouble Code Descriptions
