Spark Plug: Service and Repair

Spark Plug Removal and Installation [QR25DE]

Removal
1. Remove the intake manifold (except for spark plug No.1).
2. Remove the ignition coil.

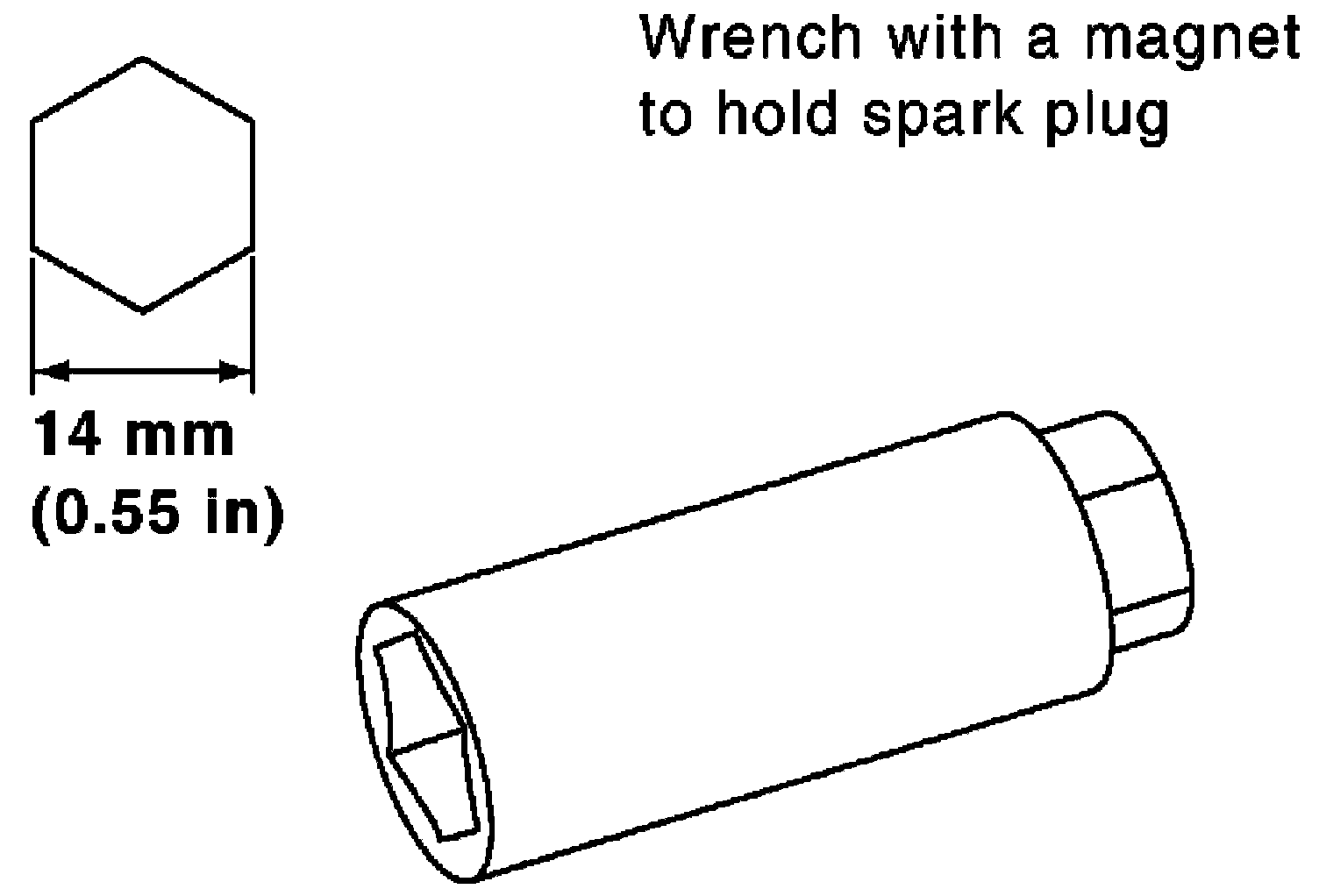

3. Remove the spark plug using a suitable tool.






CAUTION: Do not drop or shock it.

Inspection after Removal

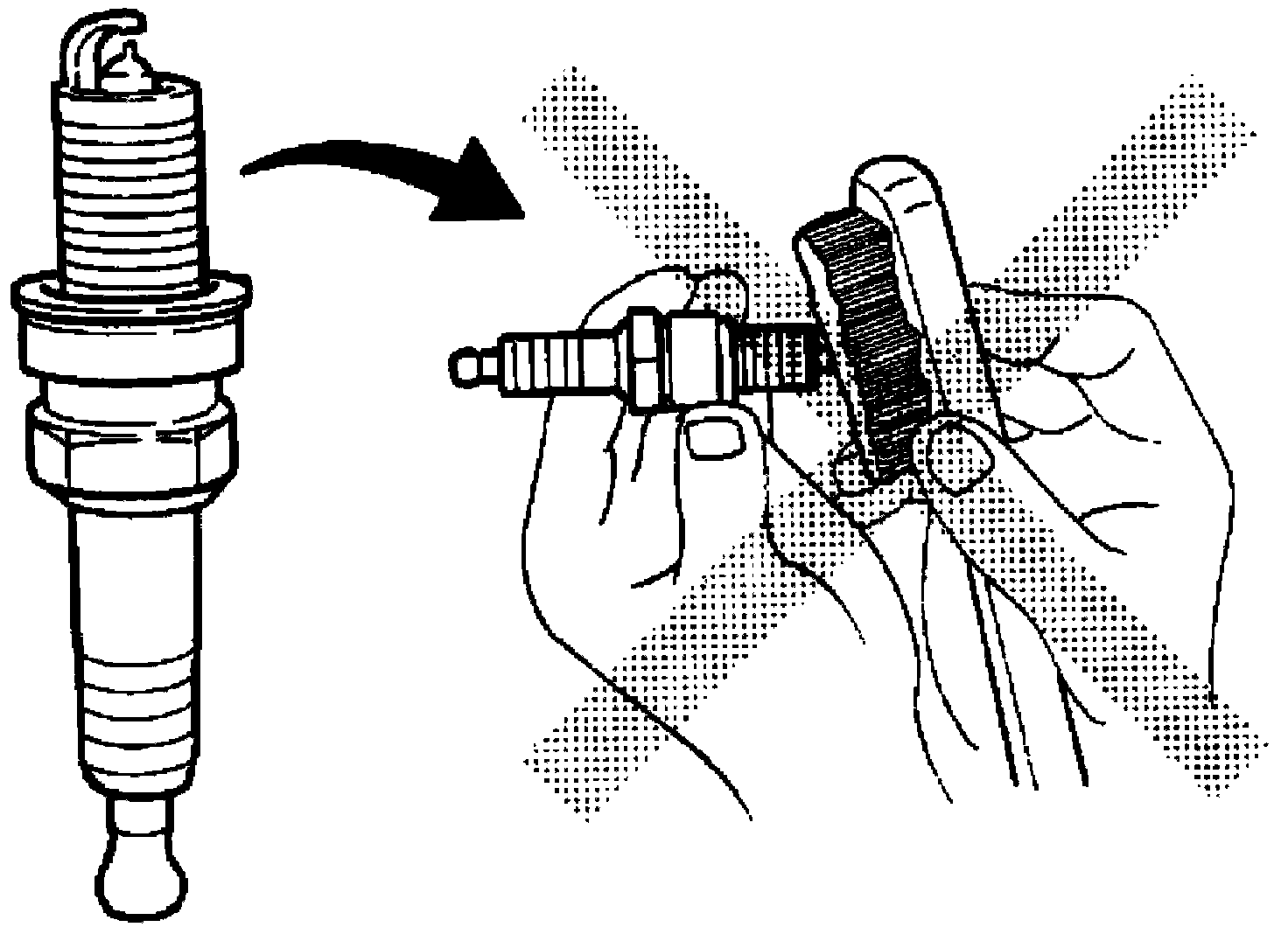

- Do not use a wire brush for cleaning.






- If the spark plug tip is covered with carbon, spark plug cleaner may be used.

Cleaner air pressure : Less than 588 kPa (5.9 bar, 6 kg/cm2, 85 psi)
Cleaning time : Less than 20 seconds

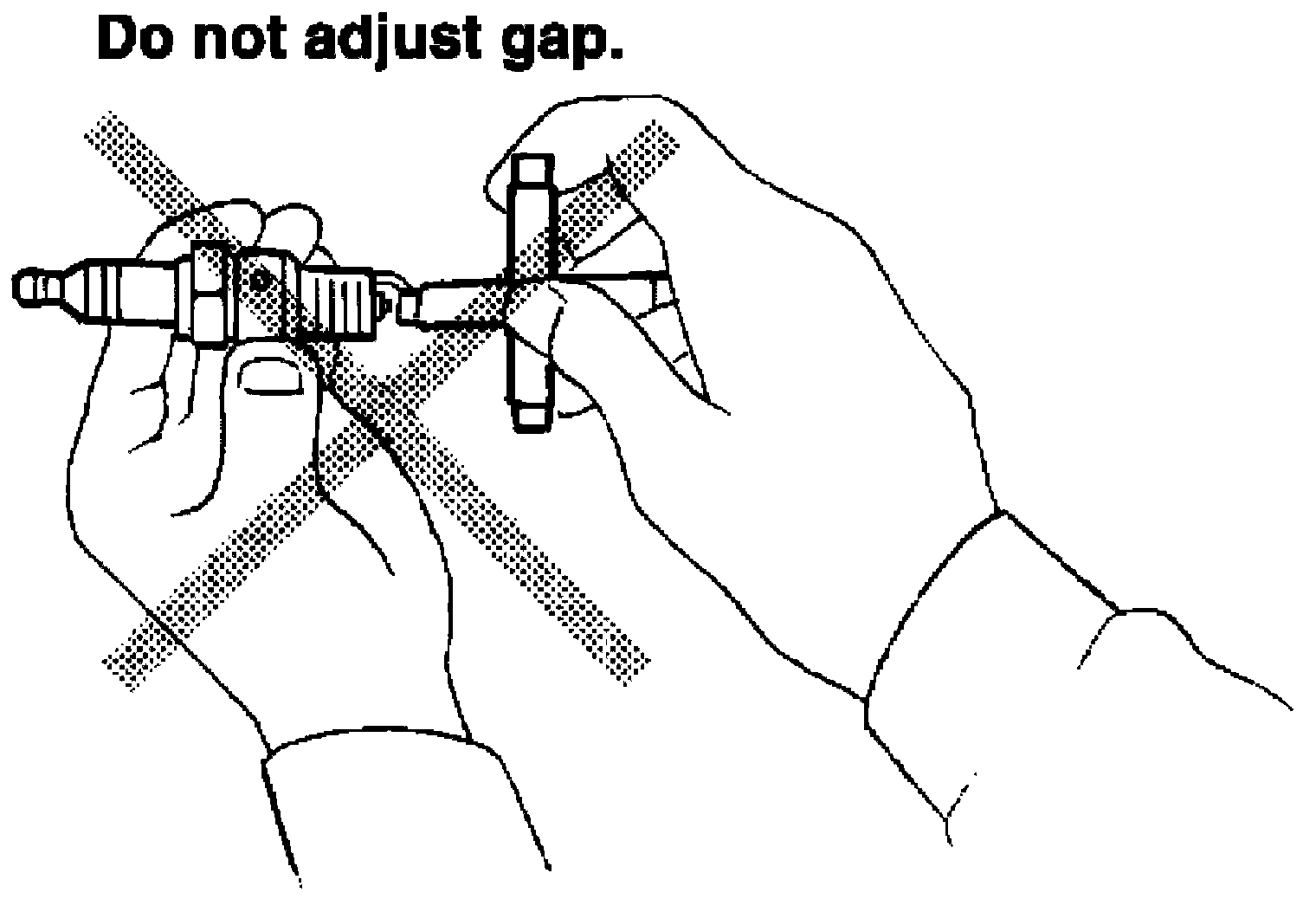

- Checking and adjusting spark plug gap is not required between change intervals.






Installation
Installation is in the reverse order of removal.

CAUTION: Do not drop or shock the spark plug.
