Power Distribution Module: Testing and Inspection

Diagnosis and Repair Workflow

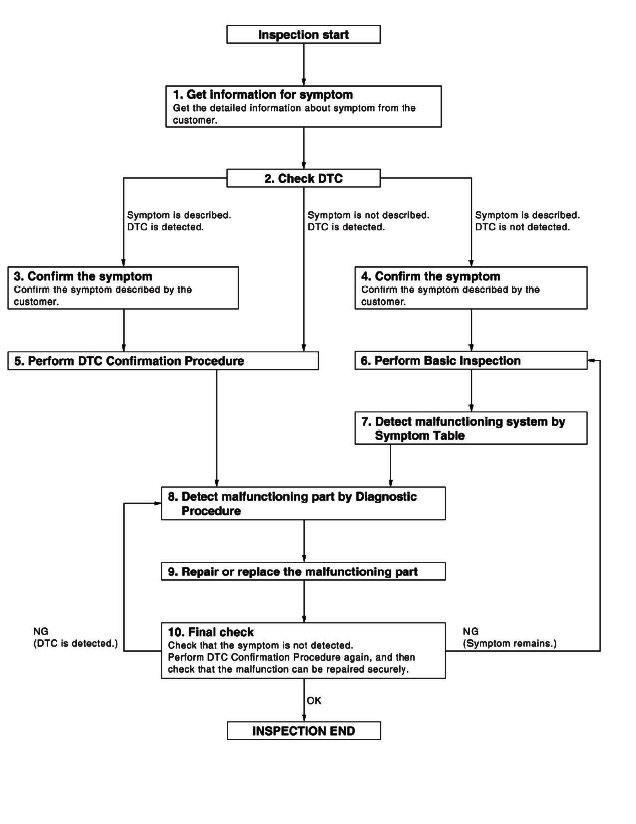

Overall Sequence






Detailed Flow

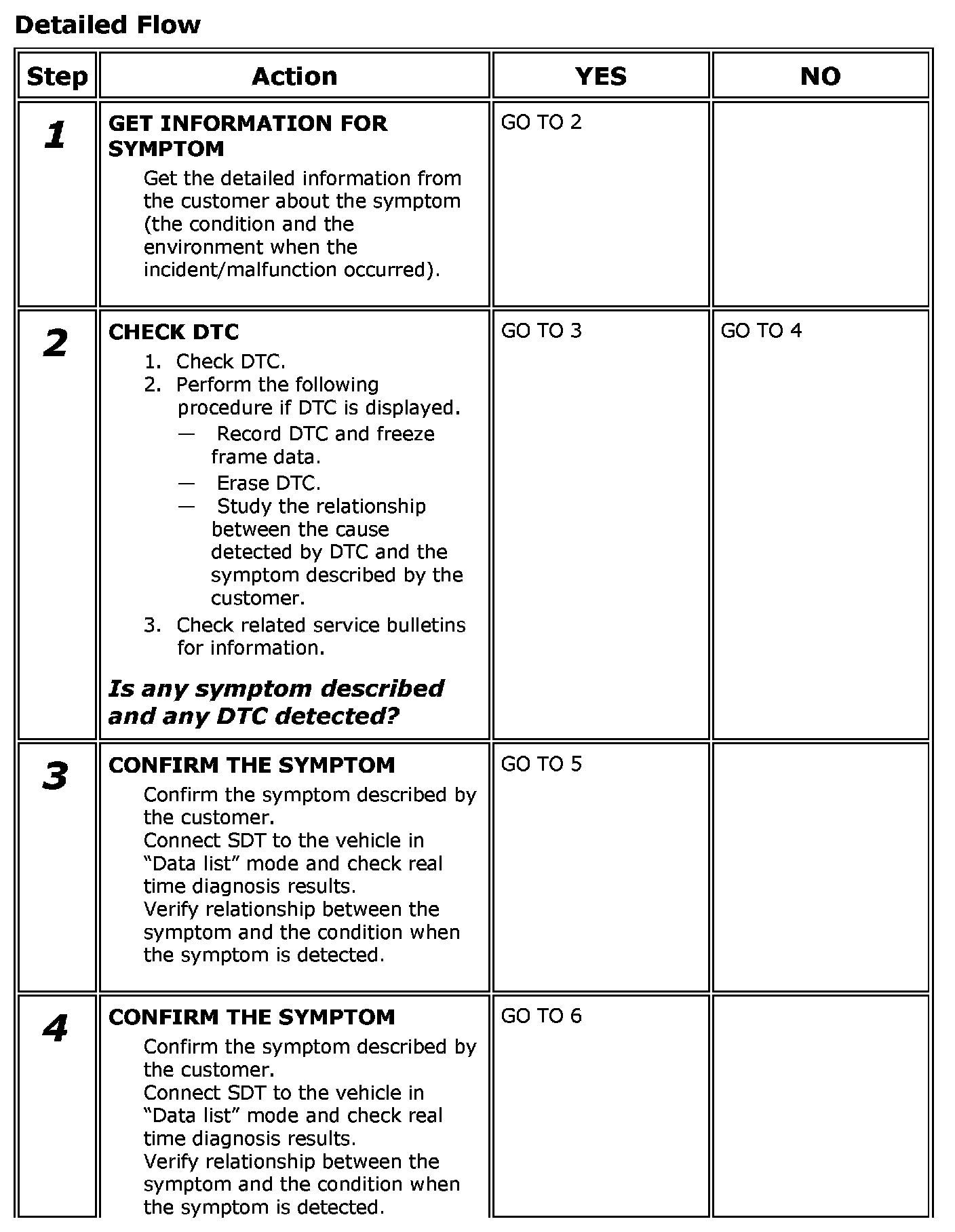

Step 1-4:

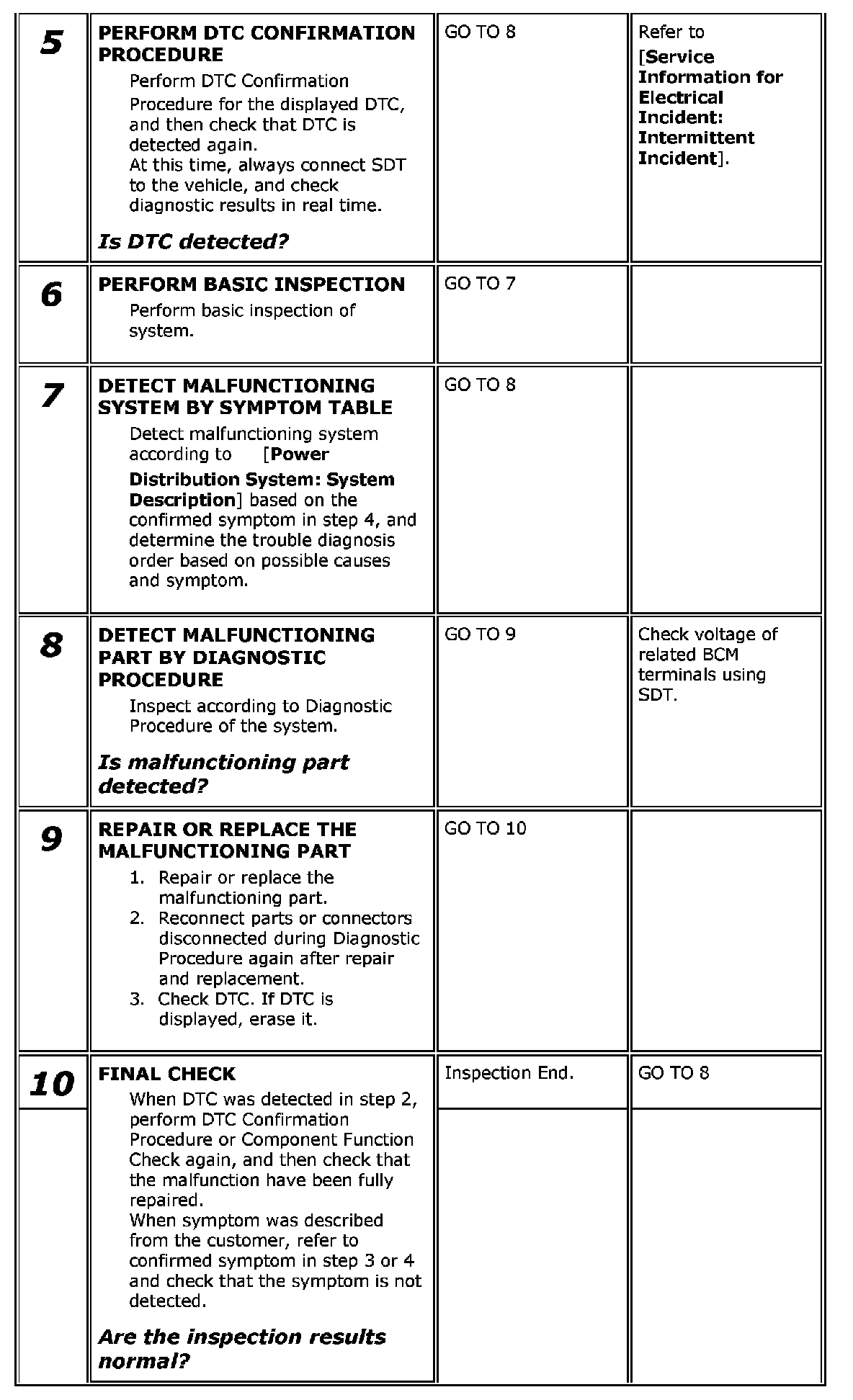

Step 5-10:
