Home
>>
Suzuki
>>
2010
>>
Equator 2WD V6-4.0L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Information Bus
>>
Testing and Inspection
>>
Initial Inspection and Diagnostic Overview
>>
LAN System: Basic Inspection
>>
Trouble Diagnosis Flow Chart
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

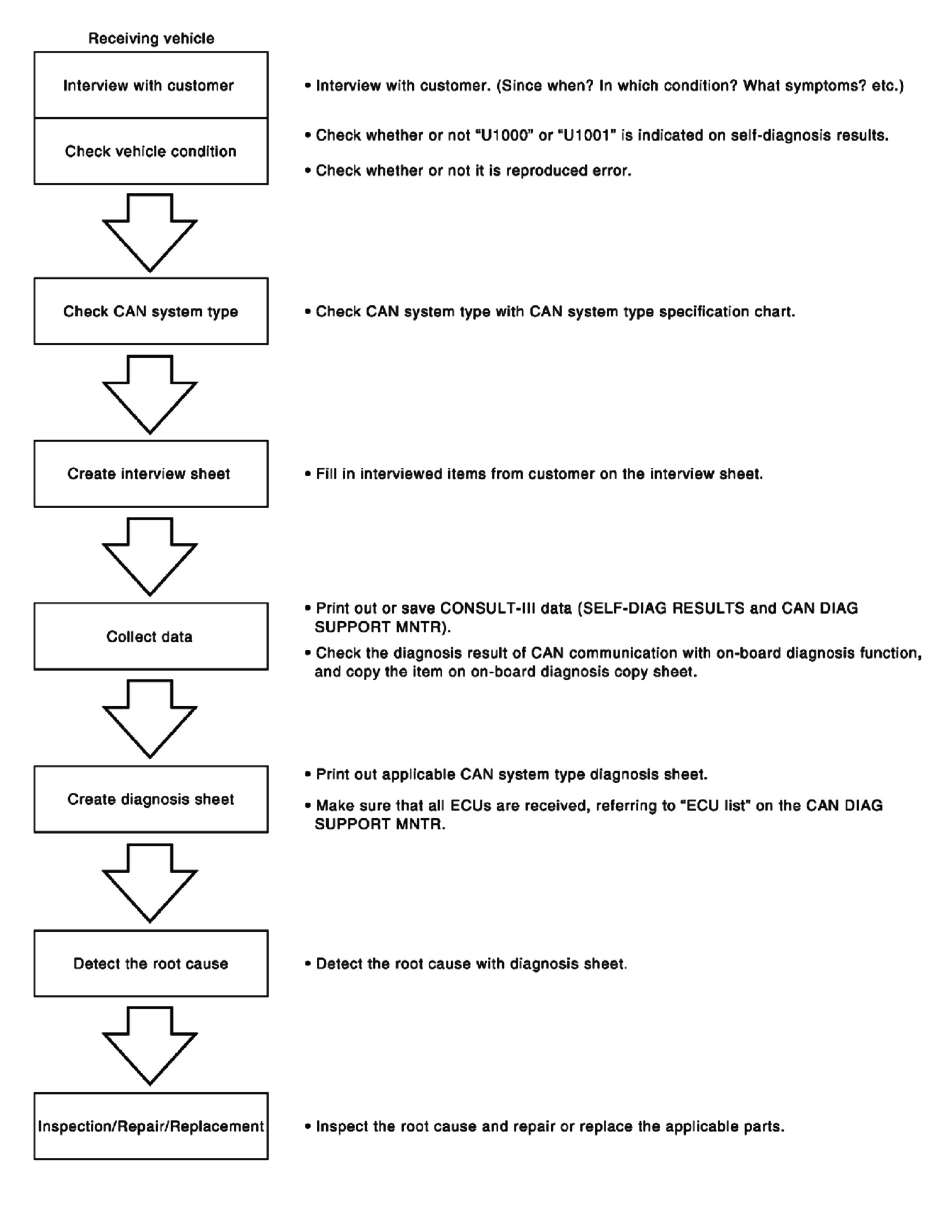

Trouble Diagnosis Flow Chart
Trouble Diagnosis Flow Chart
