Component Function Check

COMPONENT FUNCTION CHART

Step	Action	YES	NO

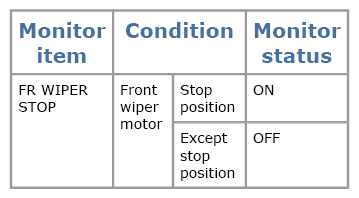

1	CHECK FRONT WIPER (AUTO STOP) SIGNAL CHECK SDT data list Select "FR WIPER STOP" of IPDM E/R data list item. Operate the front wiper. Check that "FR WIPER STOP" changes to "ON" and "OFF" linked with the wiper operation. Courtesy of SUZUKI OF AMERICA CORP. Is the status of item normal?	Front wiper auto stop signal circuit is normal.	Refer to [FRONT WIPER AUTO STOP SIGNAL CIRCUIT CHECK ].
