Control Module HVAC: Service and Repair

HVAC Control Module Removal And Installation

Removal

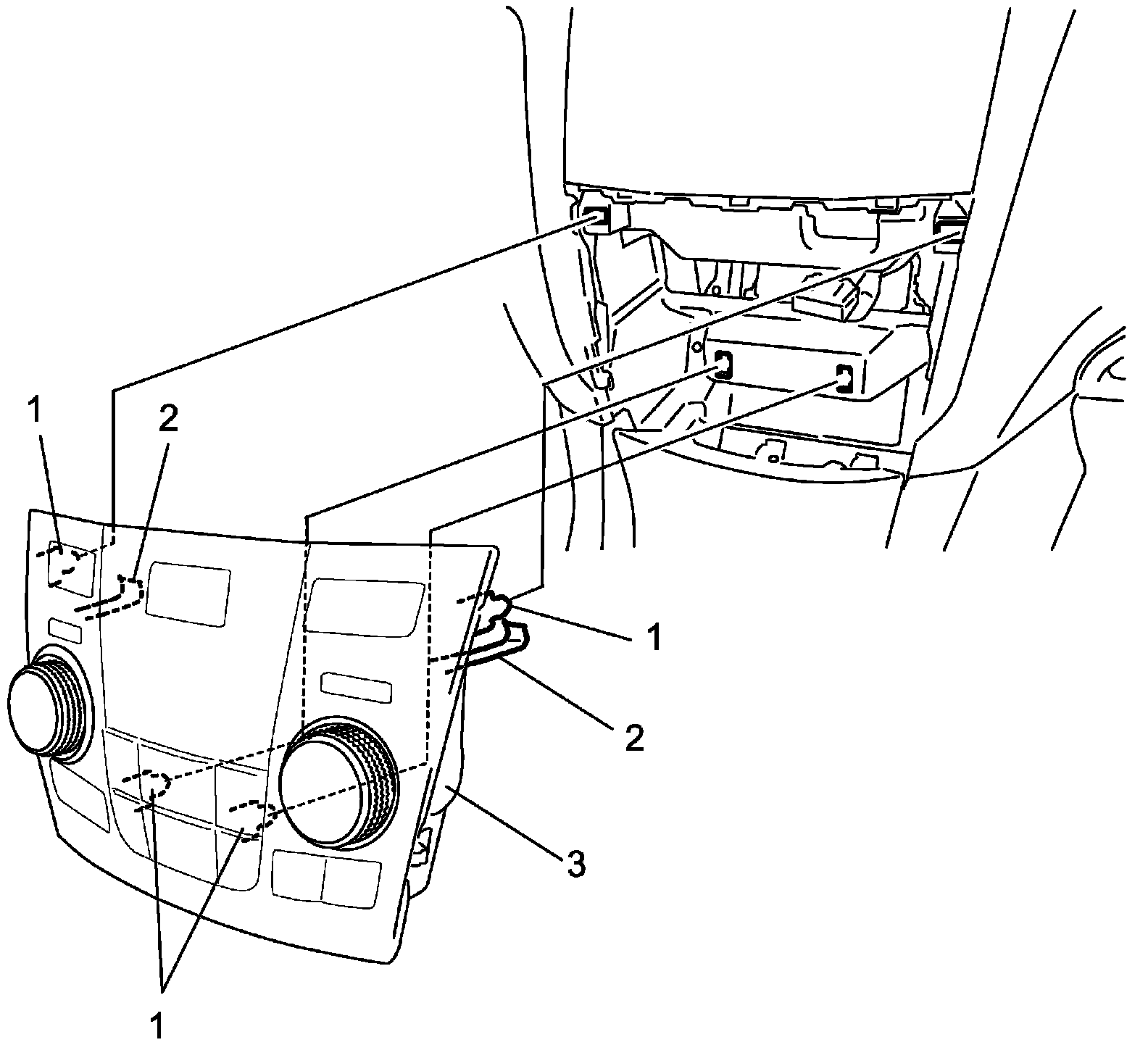

1. Release tabs (1) and claws (2) of auto A/C panel (3).
2. Disconnect connector and remove auto A/C panel.

CAUTION: Remove auto A/C panel from lower side and prevent the claws from damaging.






3. Remove audio unit.

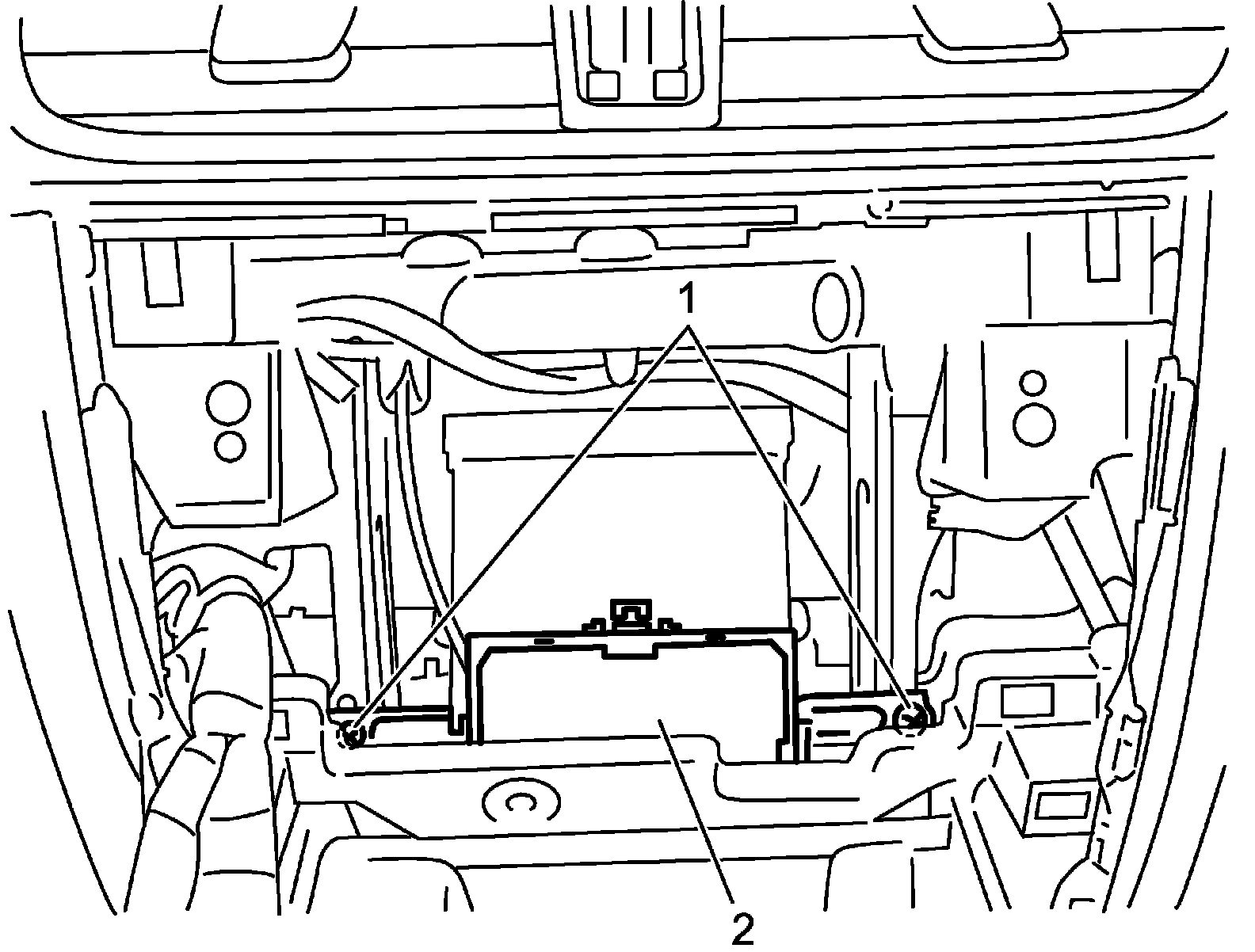

4. Remove screws (1), and then disconnect connector from HVAC control module (2).
5. Remove HVAC control module from steering support member.






Installation
Reverse removal procedure noting the following points.

CAUTION: Be careful not to push hard knob of auto A/C panel to prevent it from damaging.
