Replacement Of Remote Controller Battery

Replacement of Remote Controller Battery

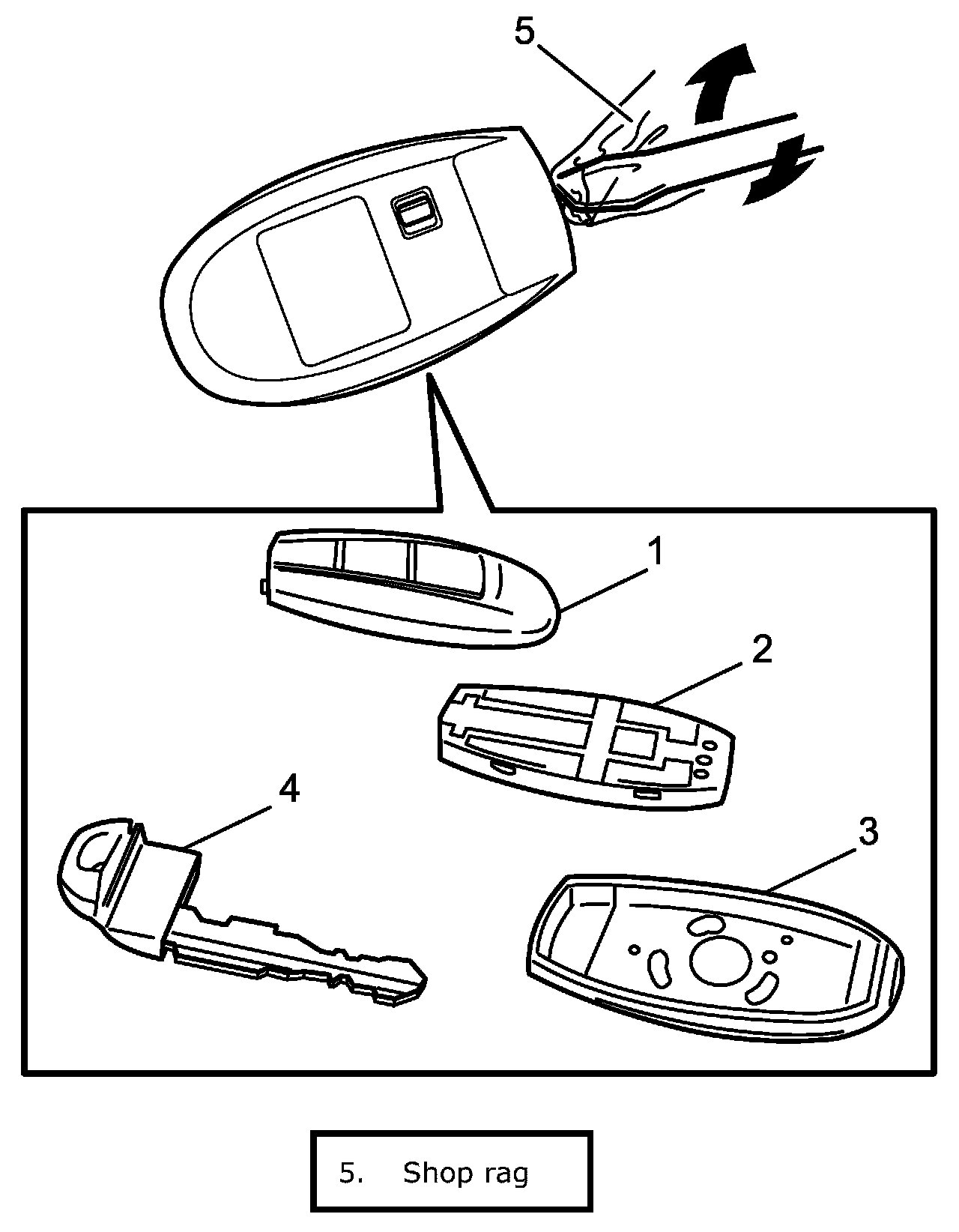

1. Remove emergency key (4).
2. Remove upper case (1) using a flat-end screwdriver as shown in figure.
3. Remove printed circuit board (2) from lower case (3).







4. Remove battery (2) using a flat-end screwdriver (1) as shown in figure.

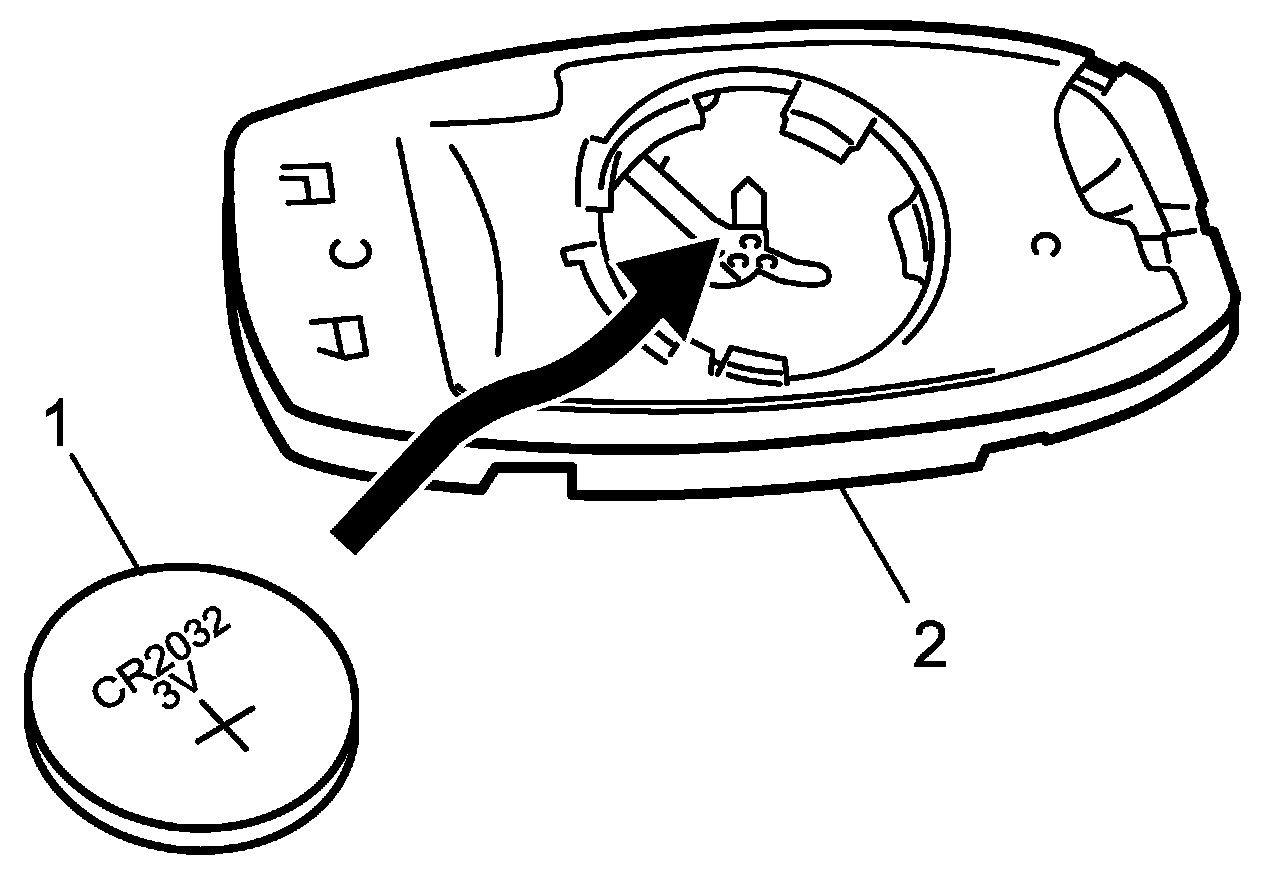

5. Place battery (lithium disc-type CR 2032 or equivalent) (1) so its "-" terminal faces "-" mark of the printed circuit board (2).







6. Install printed circuit board to lower case and then fit upper case securely.

NOTE: Dispose of the used battery properly according to applicable rules or regulations. Do not dispose of lithium batteries with ordinary household trash.
