Electronic Shift Control Input / Output Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

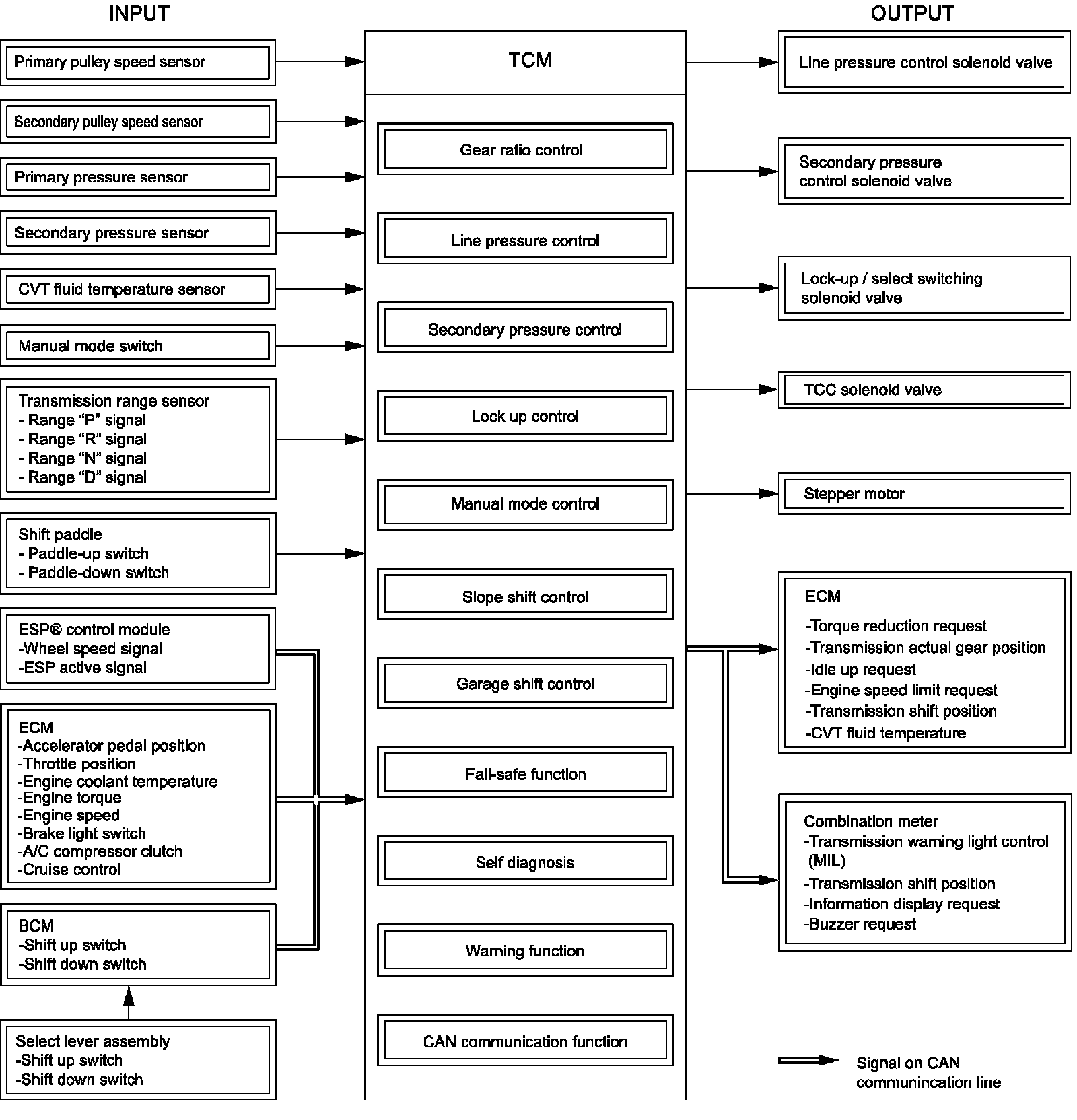

Electronic Shift Control Input / Output Diagram
Electronic Shift Control Input / Output Diagram
