System Specifications

Charging System Specifications

Battery

NOTE: The battery used in each vehicle is one of the following two types, depending on specification.

Battery
Battery type: 24R - 700 (55 AH / 5HR)

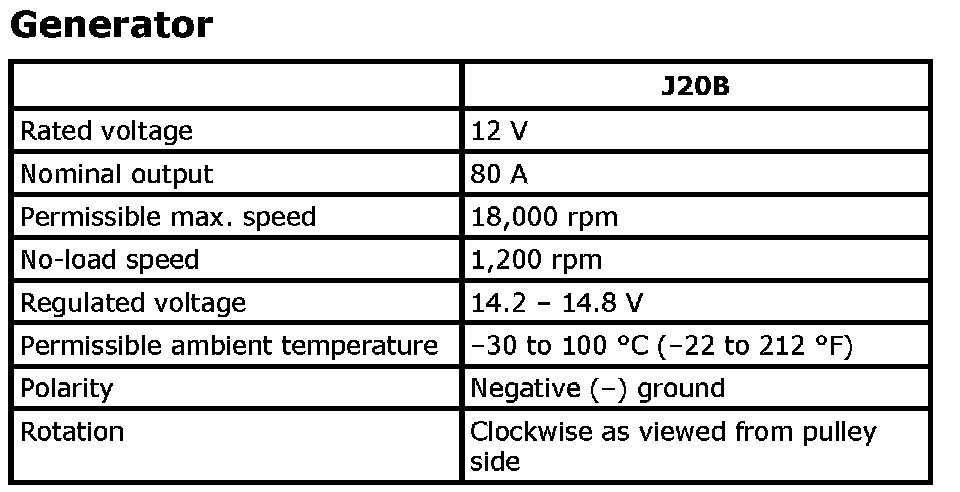

Generator
