Serial Data Link Circuit Check (No Communication to P/S Control Module)
Serial Data Link Circuit Check (No Communication to P/S Control Module)

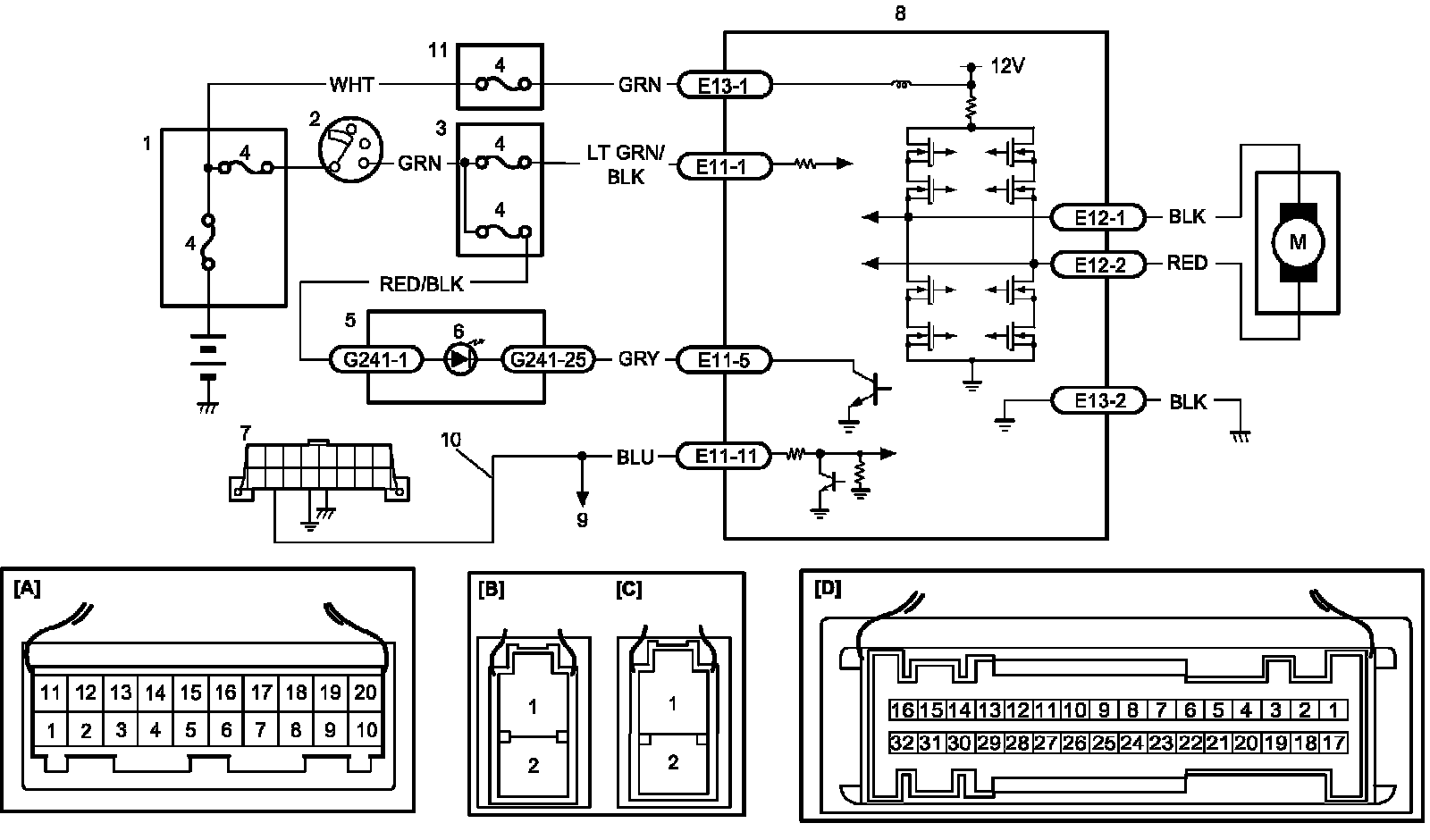

Wiring Diagram

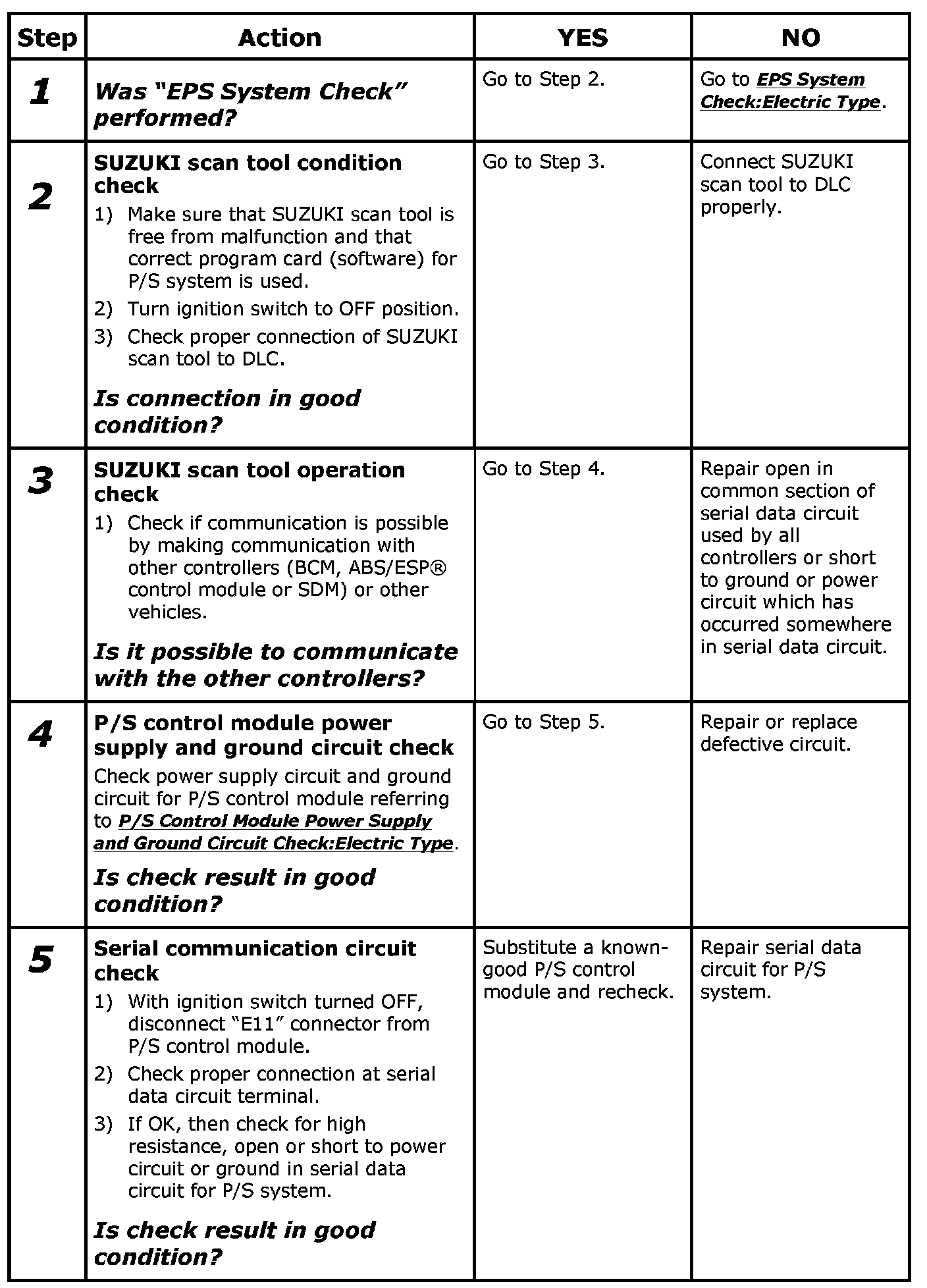

Troubleshooting
Step 1-5:
